As a professional manufacturer of timber connectors,Cangzhou Futong can supply multifarious timber connectors,including truss connector plate,perforated steel strap,galvanized steel strap,gang nail plates,galvanized nail plates,toothed connectors,toothed plates,joist hangers,truss hangers,saddle purlin hanger,angle connectors,timber connectors,wood connectors,lumber connectors,timber plates,post support,steel ties,corner brace and so on.
Certificated by CE and ISO9001:2015,we had lot of experiences to export European market,North American market,New Zealand and Australia market.and we also could supply OEM and ODM service.
Availability: | |
---|---|
Quantity: | |
CT160 & CT200 (LH Or RH)
cangzhoufutong
7308900000

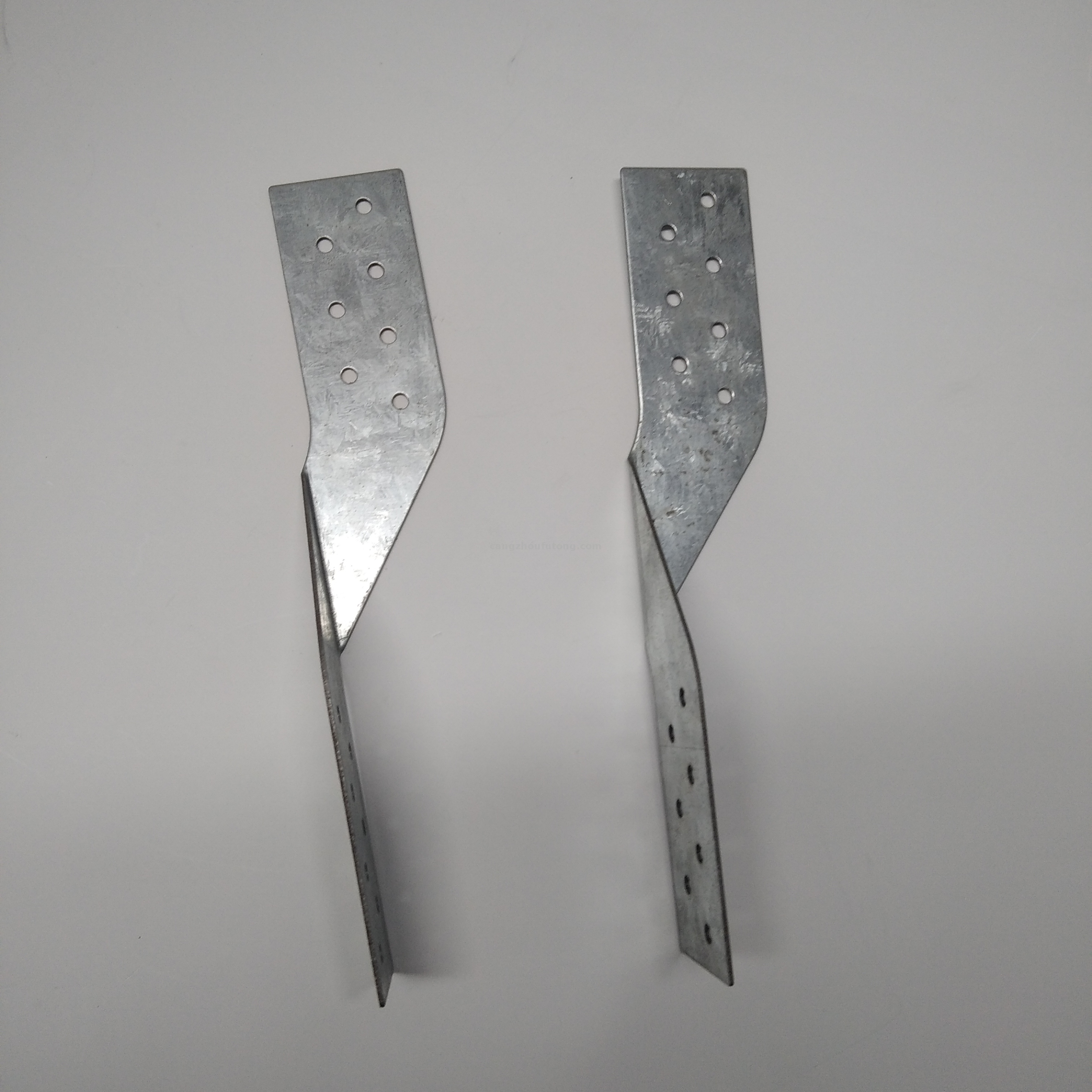

CEILING TIES CT160 & CT200 (LH or RH)
1.0mm NZCC-2D Hot Dip Galvanised Steel (CT160)
1.0 G300 Z275 Galvanised Steel (CT200)
Overall length 160mm and 200mm – A very useful connector primarily for fixing ceiling joists to rafter or truss members. It also provides an excellent truss or rafter to top plate connection. Fix with Nails 30mm x 3.15mm diameter.
Refer to Characteristic Loadings Brochure for design values. Available in Stainless Steel 304.
1.0mm G300 Z275 Galvanised Steel
Specifically designed for girt to pole fixing, as per Farm Building Designs. 120mm long Nailon Plate, slit and pre-folded to 90 deg. Fixed with min. 8 x Nails 30mm x 3.15mm diameter each face (16/cleat).
Available in Stainless Steel 304.
As a professional manufacturer of timber connectors,Cangzhou Futong can supply multifarious timber connectors,including truss connector plate,perforated steel strap,galvanized steel strap,gang nail plates,galvanized nail plates,toothed connectors,toothed plates,joist hangers,truss hangers,saddle purlin hanger,angle connectors,timber connectors,wood connectors,lumber connectors,timber plates,post support,steel ties,corner brace and so on.
Gang nail plates
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Railroad crossties,Pallet and crating,Manufactured housing ,roof trusses,floor trusses.
Key words:Anti split plates,Gang nail plates,Mending plates,Metal connector plate,Truss connector plates.
Galvanized gang nail plate
Galvanized gang nail plate is also could be called truss connector plate.A truss connector plate is a kind of tie. Truss Plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel in order to have teeth on one side. The teeth will allow to join different trusses together by being embedded into the lumber using an hydraulic press or a roller.
Nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using special hydraulic tools. As the plate is pressed in, the nails are all "driven" simultaneously and the compression between adjacent nails reduces the tendency to split.
A truss connector plate is manufactured from ASTM A653/A653M, A591, A792/A792M, or A167 structural quality steel and is protected with zinc or zinc-aluminum alloy coatings or their stainless steel equivalent. Metal connector plates have integral teeth and are manufactured to various sizes (that is, length and width) and thickness or gauges and are designed to laterally transmit loads in wood. They are also known as stud ties, metal connector plates, mending plates, or nail plates. However, not all types of nail plates are approved for use in trusses and other structurally critical placements.
Gang nail plates
Tylok plates
toothed-plate connector
Foil fix
Joist hanger
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Manufactured housing ,roof trusses,floor trusses.
Key words:Joist hanger,truss hanger
Joist hanger,truss hanger
Joist hangers represent a critical design component that helps ensure a building's structural integrity. When factoring in load requirements, member size and costs, deciding on the best solution can be a daunting process. The Joist Hanger Selector from SUREALONG makes selecting the most cost‑effective hanger based on the type of installation, options and loads easier than ever.
Corner brackets
Triple Grip
Stud ties
Steel strip
Post support
Brick ties
CEILING TIES CT160 & CT200 (LH or RH)
1.0mm NZCC-2D Hot Dip Galvanised Steel (CT160)
1.0 G300 Z275 Galvanised Steel (CT200)
Overall length 160mm and 200mm – A very useful connector primarily for fixing ceiling joists to rafter or truss members. It also provides an excellent truss or rafter to top plate connection. Fix with Nails 30mm x 3.15mm diameter.
Refer to Characteristic Loadings Brochure for design values. Available in Stainless Steel 304.
1.0mm G300 Z275 Galvanised Steel
Specifically designed for girt to pole fixing, as per Farm Building Designs. 120mm long Nailon Plate, slit and pre-folded to 90 deg. Fixed with min. 8 x Nails 30mm x 3.15mm diameter each face (16/cleat).
Available in Stainless Steel 304.
As a professional manufacturer of timber connectors,Cangzhou Futong can supply multifarious timber connectors,including truss connector plate,perforated steel strap,galvanized steel strap,gang nail plates,galvanized nail plates,toothed connectors,toothed plates,joist hangers,truss hangers,saddle purlin hanger,angle connectors,timber connectors,wood connectors,lumber connectors,timber plates,post support,steel ties,corner brace and so on.
Gang nail plates
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Railroad crossties,Pallet and crating,Manufactured housing ,roof trusses,floor trusses.
Key words:Anti split plates,Gang nail plates,Mending plates,Metal connector plate,Truss connector plates.
Galvanized gang nail plate
Galvanized gang nail plate is also could be called truss connector plate.A truss connector plate is a kind of tie. Truss Plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel in order to have teeth on one side. The teeth will allow to join different trusses together by being embedded into the lumber using an hydraulic press or a roller.
Nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using special hydraulic tools. As the plate is pressed in, the nails are all "driven" simultaneously and the compression between adjacent nails reduces the tendency to split.
A truss connector plate is manufactured from ASTM A653/A653M, A591, A792/A792M, or A167 structural quality steel and is protected with zinc or zinc-aluminum alloy coatings or their stainless steel equivalent. Metal connector plates have integral teeth and are manufactured to various sizes (that is, length and width) and thickness or gauges and are designed to laterally transmit loads in wood. They are also known as stud ties, metal connector plates, mending plates, or nail plates. However, not all types of nail plates are approved for use in trusses and other structurally critical placements.
Gang nail plates
Tylok plates
toothed-plate connector
Foil fix
Joist hanger
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Manufactured housing ,roof trusses,floor trusses.
Key words:Joist hanger,truss hanger
Joist hanger,truss hanger
Joist hangers represent a critical design component that helps ensure a building's structural integrity. When factoring in load requirements, member size and costs, deciding on the best solution can be a daunting process. The Joist Hanger Selector from SUREALONG makes selecting the most cost‑effective hanger based on the type of installation, options and loads easier than ever.
Corner brackets
Triple Grip
Stud ties
Steel strip
Post support
Brick ties
At Futong Precision Manufacturing, we are a global supplier of precision metal stampings and complex assemblies. We provide turnkey services, from design, tooling development, and sourcing to stamping, finishing, assembly, packaging, and shipping. Every one of our departments works together as a cohesive team and pays attention to every detail to ensure we deliver high caliber products on time and budget. We have a strong 15+ year history as a manufacturer of complex, custom components requiring tight tolerances, and we have an impressive level of customer retention.
Our stamping operations feature presses in the 45-ton to 1,100-ton range, which gives us the versatility to generate parts using thin gauge .004” foils as well as plate measuring up to 0.5” in thickness. We have capabilities in all stamping methods, including progressive die, continuous strip, compound die, deep drawing, etc. By leveraging our integrated knowledge of material properties and stamping technology, we develop the tooling and implement controllable manufacturing processes to repeatably produce dimensionally accurate parts. Materials we frequently work with include carbon steel, aluminum, copper, brass, and an extensive selection of other metals and alloys.
As an ISO 9001 certified metal stamping company, our maintenance program ensures all tooling, dies, press equipment, and quality instruments are in top condition. We inspect all incoming raw materials and carry out first article, in-process, and final inspections. With our coordinated project management, we manage secondary operations such as heat treating, passivation, plating, and other finishing services as well as machining, fabrication, and product assembly through a network of trusted partners.
We manufacture premier quality metals stampings for customers in many different industries, from automotive and aerospace to medical, transportation, and consumer products, to name a few. Some examples include electronic connectors, PCBs, filter components, furniture parts, medical diaphragms, hardware, and containers, among many others. We are customer-focused, reliable, and price competitive. To learn more about our stamping services or to make an inquiry, contact us directly.
At Futong Precision Manufacturing, we are a global supplier of precision metal stampings and complex assemblies. We provide turnkey services, from design, tooling development, and sourcing to stamping, finishing, assembly, packaging, and shipping. Every one of our departments works together as a cohesive team and pays attention to every detail to ensure we deliver high caliber products on time and budget. We have a strong 15+ year history as a manufacturer of complex, custom components requiring tight tolerances, and we have an impressive level of customer retention.
Our stamping operations feature presses in the 45-ton to 1,100-ton range, which gives us the versatility to generate parts using thin gauge .004” foils as well as plate measuring up to 0.5” in thickness. We have capabilities in all stamping methods, including progressive die, continuous strip, compound die, deep drawing, etc. By leveraging our integrated knowledge of material properties and stamping technology, we develop the tooling and implement controllable manufacturing processes to repeatably produce dimensionally accurate parts. Materials we frequently work with include carbon steel, aluminum, copper, brass, and an extensive selection of other metals and alloys.
As an ISO 9001 certified metal stamping company, our maintenance program ensures all tooling, dies, press equipment, and quality instruments are in top condition. We inspect all incoming raw materials and carry out first article, in-process, and final inspections. With our coordinated project management, we manage secondary operations such as heat treating, passivation, plating, and other finishing services as well as machining, fabrication, and product assembly through a network of trusted partners.
We manufacture premier quality metals stampings for customers in many different industries, from automotive and aerospace to medical, transportation, and consumer products, to name a few. Some examples include electronic connectors, PCBs, filter components, furniture parts, medical diaphragms, hardware, and containers, among many others. We are customer-focused, reliable, and price competitive. To learn more about our stamping services or to make an inquiry, contact us directly.
ISO 9001:2015, IATF 16949:2016
ISO 9001:2015, IATF 16949:2016
The packages could be customized according to your requirements
The packages could be customized according to your requirements
