Countertop Support and Shelf Brackets
Home » Blog » Countertop Support and Shelf Brackets

Countertop Support and Shelf Brackets

Views:7     Author:Site Editor     Publish Time: 2021-02-28      Origin:Site

Countertop Support and Shelf Brackets


Countertop Support and Shelf Brackets

We have a variety of hidden granite counter top supports brackets to give your counter the appearance of floating! No Corbels Needed!

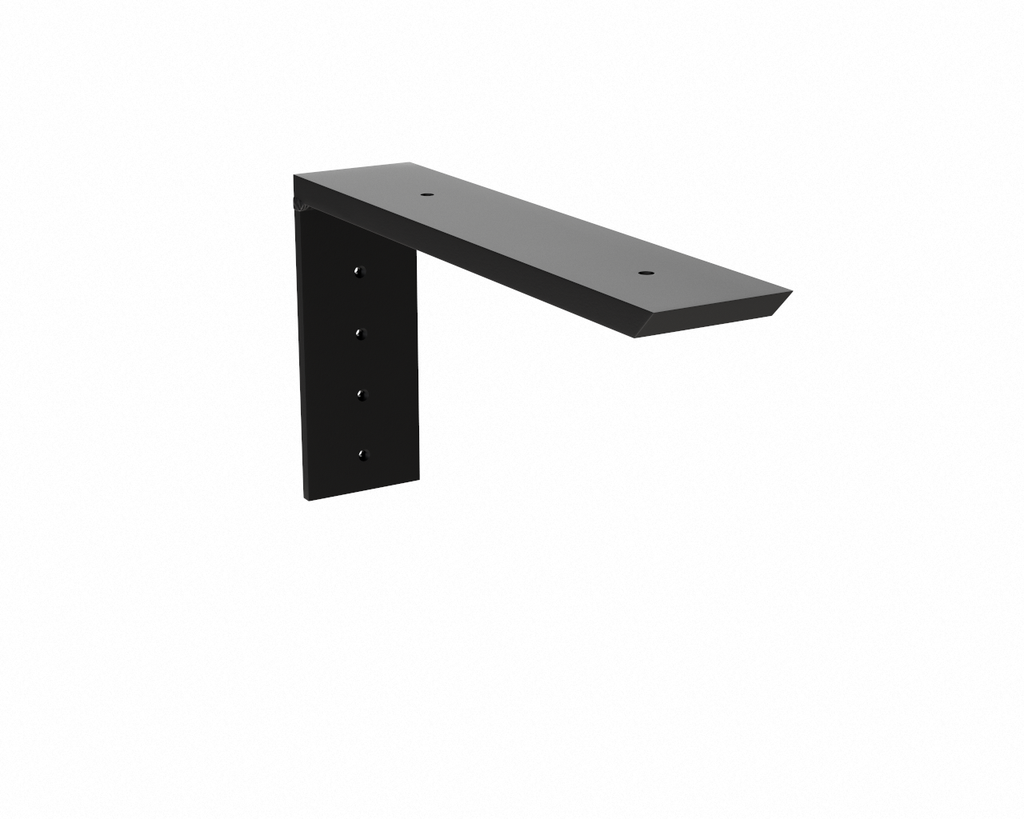

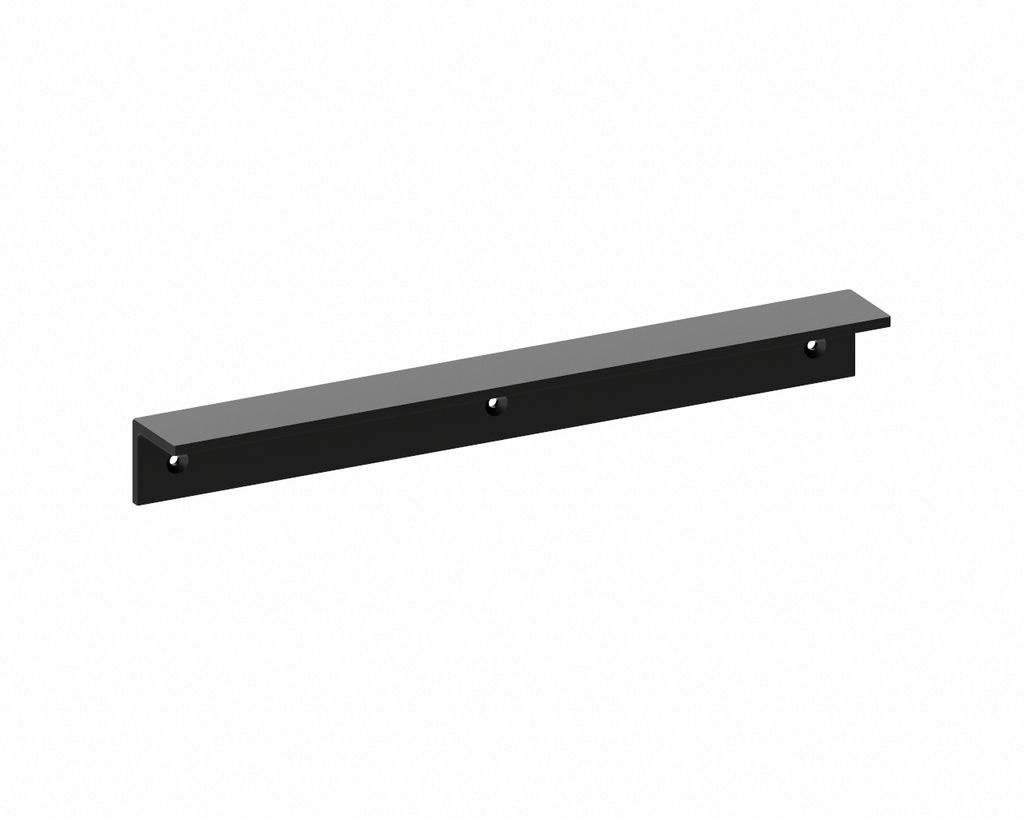

L Bracket Countertop Support Bracket


The L-Bracket angle support bracket for countertops gives virtually invisible support to granite, quartz, marble, natural stone, wood, or heavy kitchen countertops. The perfect concealed countertop overhang bracket. This Bracket is made from your choice of Steel or Solid Aluminum

Length …….…. [see listing] 7 8 9 10 11 12 13 14 15 16 18 20 22 24 26 28 inch

Width …………. 2 ½ inches

Thickness ….…. ½ inch

Countersunk Hole Diameter… 1/4 inch


Bracket Features:

Virtually invisible giving your granite countertop the appearance of floating.

Choice of Steel or Solid Aluminum (will never rust).

Strong Counter Support. Protects Your Countertop from tipping or breaking. Welded for solid strength.

Non-intrusive. No corbels needed. No knee-knocking.

Completely open space for chairs and legs.

An economical way to protect your countertop investment.

Easy to install.

The horizontal end has a beveled edge for added safety.

Countersunk holes on the horizontal piece, holes not countersunk on the vertical piece.

Color- Black.

Brackets are also paintable with anti-rust spray paint.

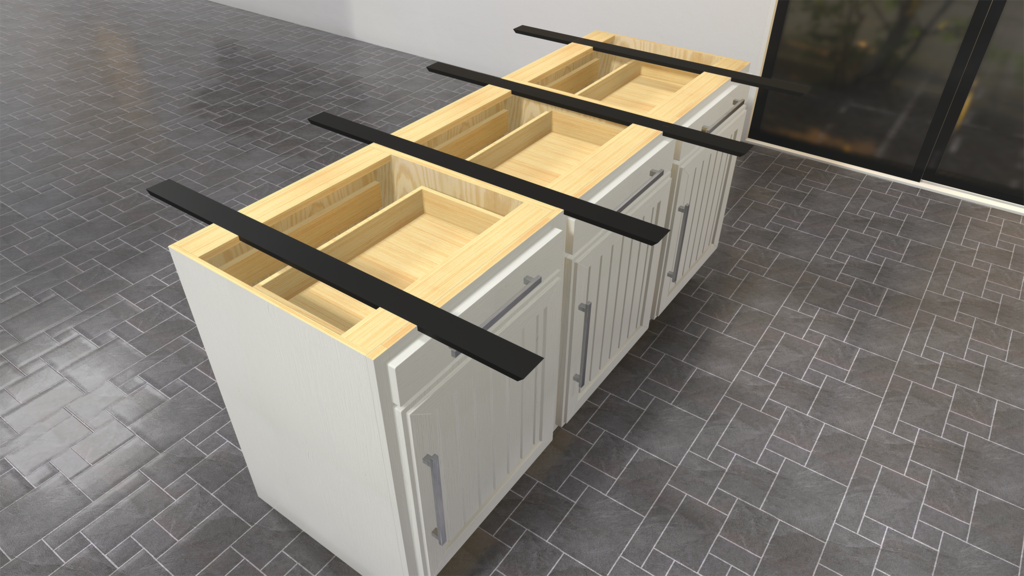

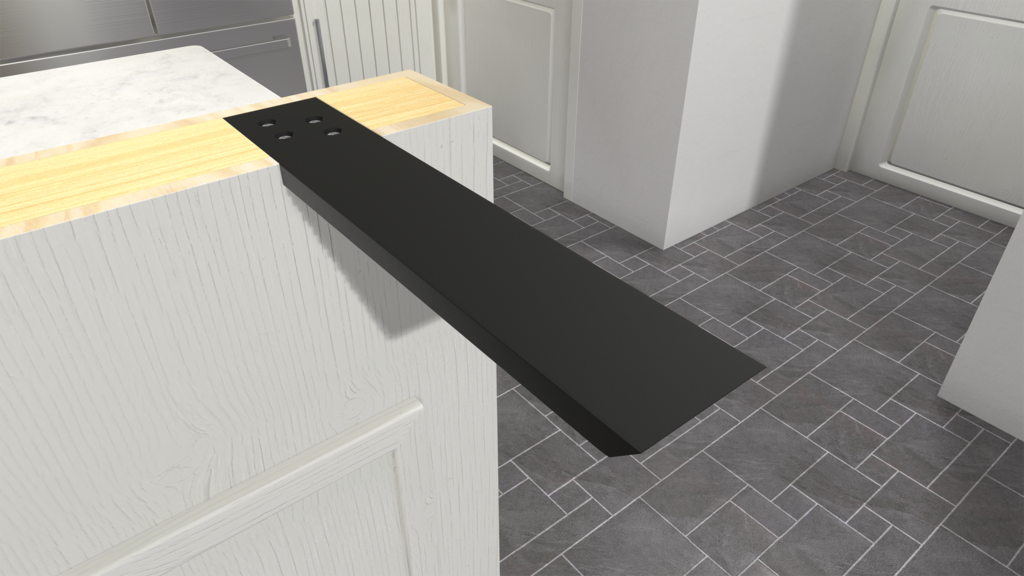

Hidden Island Support Bracket

Counter supports for extended granite or heavy countertop overhang; the Hidden Island Support Bracket is used when there is no knee wall or pony wall. The perfect concealed steel support for countertop overhang for a kitchen island or breakfast bar.

This bracket is designed to attach to the inside of the front wall of the cabinet and will extend through the cabinet.

Dimensions of the Hidden Island Support Bracket:

Length... [you choose] 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 inch

Width.... 2-1/2 inches

Thickness.... 1/2 inch


Hidden Island Support Bracket Features:

Virtually invisible giving your Island the appearance of floating.

Non-intrusive. No corbels needed. No knee-knocking.

The flange is welded onto the support bracket.

An economical way to protect your countertop investment.

Completely open space allowing room for chairs and legs.

Easy to install.

Made of ½ inch thick by 2 ½ inches wide Solid American steel.

Bracket end has a beveled edge for safety.

Screw hole on each side of the flange.

Black.

*NEW* Regular Wood Shelf Bracket

Our  Wood Shelf Countertop Support Brackets are designed with Pre-Drilled holes to secure your wood material to the steel bracket.  Screw holes on the horizontal are 2 inches from the beveled end and 3 inches from the 90 degree corner.

This bracket while being strong and durable is the perfect bracket to support those little knick-knacks or home décor.

Includes screws to mount bracket to the wall but not horizontal mounting screws for the shelf as there are many different shelf thicknesses.

Bracket Features:

Virtually invisible; gives your countertop or shelf the appearance of floating.
Non-intrusive. No Corbels needed. No knee knocking.
Open space for chairs and legs.
Strong shelving and countertop support. Protects your countertop from tipping or breaking
Economical way to protect your countertop investment.
Easy to install.
Made of 1/2 inch thick by 2 1/2 inch wide Steel.
Bracket end has a beveled edge for added safety.
Screw holes are in-line center on vertical section.
Screw holes on the horizontal are 2 inches from the bevel and 3 inches from the 90 degree corner.
Textured with a black rust inhibitor finish.

Size
06H*04V
06H*06V
08H*04V

……..

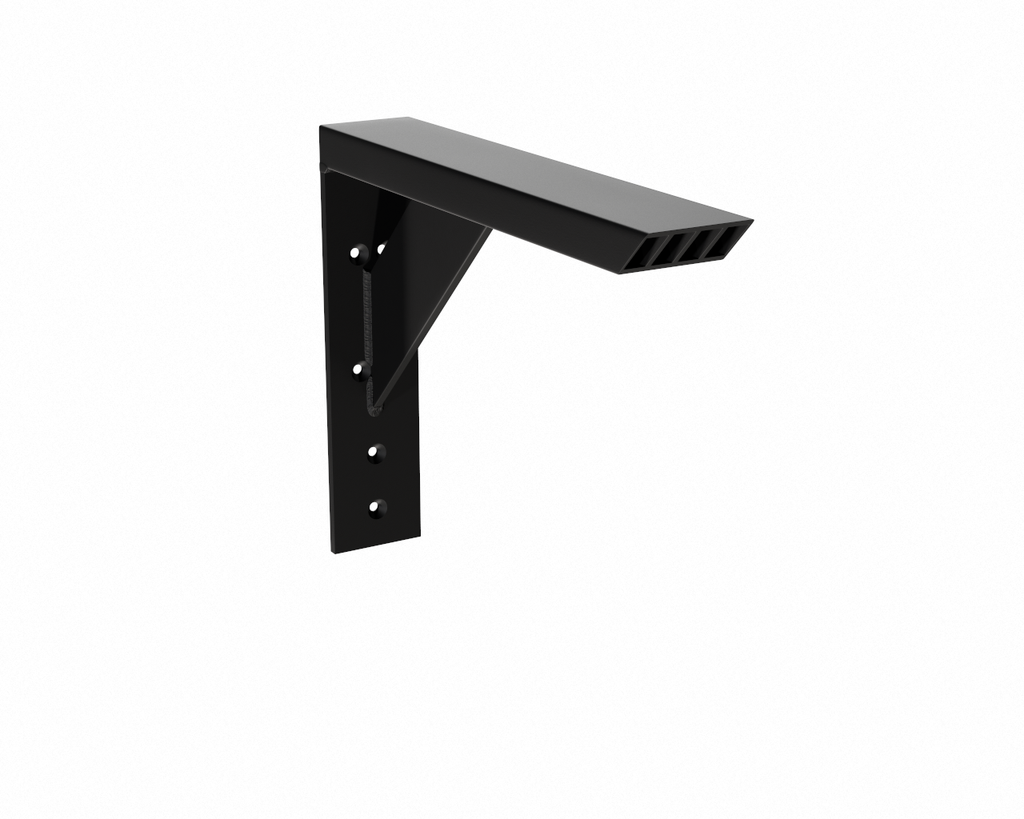

*NEW* Large Shelf INDUSTRIAL Bracket

The Large Shelf Industrial Bracket is the strongest front mount shelf bracket on the market PERIOD.
Whether it be large floating shelves, heavy floating bar-tops, or even cantilevered full-sized desks, don’t let your project suffer by not having the KING of wall brackets supporting your project; The Large Shelf Industrial Support Bracket.
The Large Shelf Industrial Support Bracket provides superior strength in its category. Commercial project managers describe this bracket as their “go-to” anytime they have an oversize countertop application that calls for a little more than your typical front mount bracket. Aesthetically, this industrial style is sought after by many customers.
This bracket is made to handle the heaviest and largest of jobs. Because of the vertical angles which are welded in place, this bracket is almost indestructible.
It is ideal for interior and exterior applications as it is aluminum material. This is a rust-proof/ full-proof method of supporting exterior projects that demand strength out of their supports.

Note: It is very important that the Large Shelf Industrial Support Bracket be securely mounted into wood studs or equivalent to ensure the weight of a shelf/countertop and its contents are supported properly.

We recommend hitting each wood stud.

Horizontal Dimensions:
Length...[choose in listing] [the total horizontal length from tip to tip]
Width.... 2-1/2 inches
Thickness.... 1 inch
Vertical Dimensions:

Length.... 10, 12 inches [see listing]
Width.... 2-1/2 inches
Thickness.... 1/4 inch
Hole Diameter.... 1/4 inch

Vertical Angle:
Width.... 2-1/2 inches
Thickness.... 1/4 inch

Bracket Features:
An economical way to protect your stone investment.
Superior strength to the competition.
Used for heavy shelves, suspended desks, and oversize countertops.
Easy to install.

Made of 1 inch thick by 2 ½ inches wide Solid Aluminum welded for strength.
Bracket end has a beveled edge for safety.
Screw holes are on the vertical piece.
Black.
The bracket may be painted with any anti-rust spray paint.


*NEW* Dishwasher Support Bracket

Our Dishwasher Support Bracket is a great way to secure your dishwasher from falling forward while providing additional support value to the front edge of your countertop.

After installing the bracket across the top of the dishwasher simply run a couple of self-tapping metal screws from the mounting tab on your dishwasher to the newly installed bracket.

You now have a secure mount for your dishwasher and a little added support for your countertop.

The bracket is made of T-6511 Aluminum material.

2 1/2 inch wide, 1/4 inch thick and the length is 28 inches long.

We can also custom length if your project requires it.

Economical way to add support to your projects.

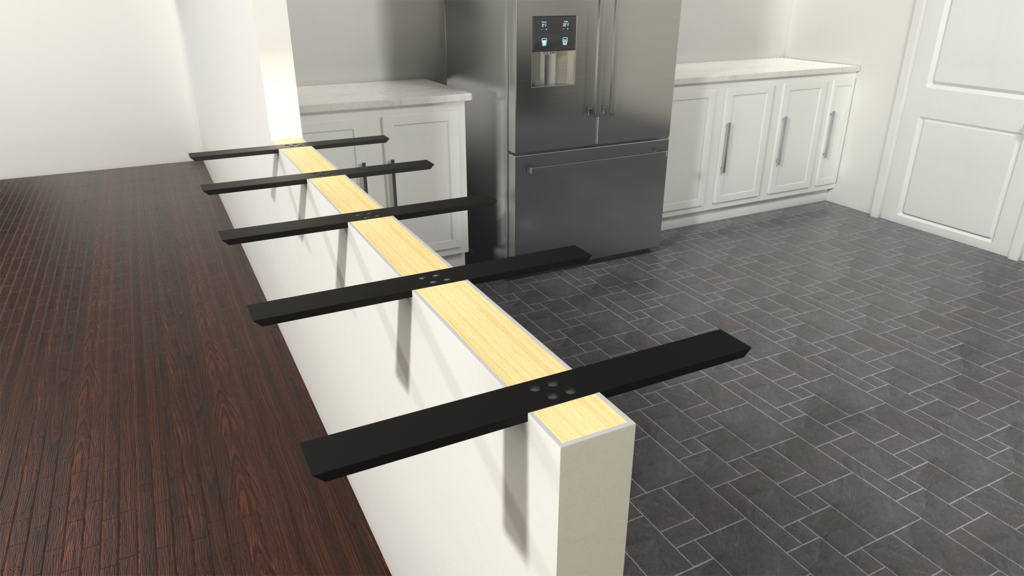

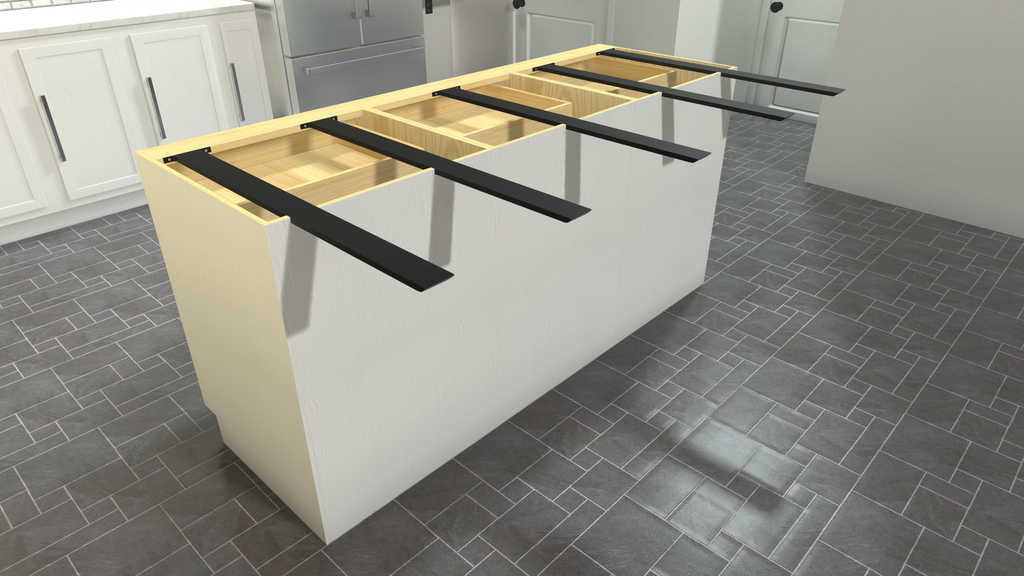

Knee Wall Countertop Support Bracket

Hidden countertop supports for kitchen countertops are essential when protecting your granite or stone countertops. Our Knee Wall Hidden Granite Support Bracket is the most popular bracket on the market. The perfect concealed countertop overhang bracket for countertop support.

This granite support is nonintrusive while your countertop appears to be floating. Once installed this support bracket will be virtually invisible and protect your countertop from cracking when leaned on.

The Knee Wall Support Bracket mounts on top of half walls [knee/pony wall] to support extended countertop overhangs.

Knee Wall Hidden Countertop Support Brackets Dimensions:
Length …….…. [choose in listing] 7 8 9 10 11 12 13 14 15 16 18 20 22 24 26
Width …………. 2 ½ inches
Thickness ….…. ½ inch
Countersunk Hole Diameter… 1/4 inch

Bracket Features:

Virtually invisible giving your granite countertop the appearance of floating.
Choice of American Steel or Solid American Aluminum.
Stone countertop is protected from tipping and breaking.
Non-intrusive. No corbels needed. No knee-knocking.
Completely open space allowing room for chairs and legs.
An economical way to protect your countertop investment.
Easy to install.
Made of ½ inch thick by 2 ½ inches wide material.
Bracket end has a beveled edge for safety.
Screw holes are countersunk into the brace for a flush installation for added support.
Color-Black.
Brackets can be painted with any anti-rust spray paint to change your color.

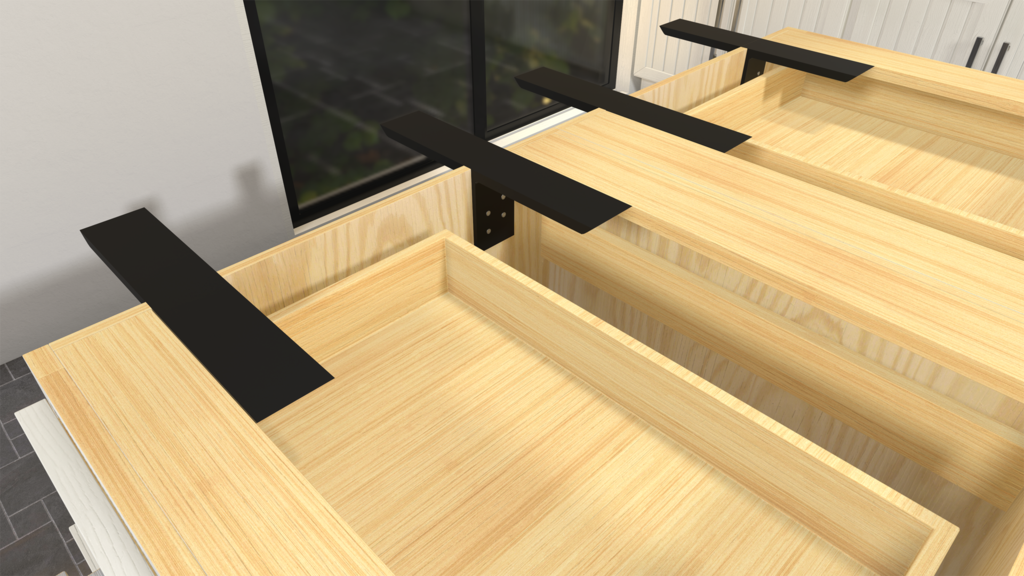

T Brace Countertop Support Bracket

For countertop support, the T-Bracket Hidden Granite Bracket is the bracket support which will use the weight of the granite, to support your big granite countertop overhang on an island. The perfect concealed countertop overhang bracket.

This Bracket lies across the top of the cabinet, half of the bracket will be inside of the cabinet and the other half will be exposed under the overhang. The vertical angle drops down on the inside back of the cabinets and is used to hold the T- Bracket in place until the granite is put in place. This will give your granite the appearance of floating once installed.

Countertop Support bracket makes countertop float with the T Bracket from The Original Granite Bracket

Dimensions:
Length …….…. [you choose]
Width …………. 2 ½ inches
Thickness ….…. ½ inch
Hole Diameter… 1/4 inch

Bracket Features:
Virtually invisible giving your granite countertop the appearance of floating.
Non-intrusive. No corbels needed. No knee-knocking.
Completely open space allowing room for chairs and legs.
An economical way to protect your countertop investment.
Easy to install.
Made of ½ inch thick by 2 ½ inches wide Solid American Metal welded for strength.
Bracket end has beveled edge for safety.
Screw holes are staggered on the vertical piece.
Black.
Brackets are paintable with anti-rust paint.

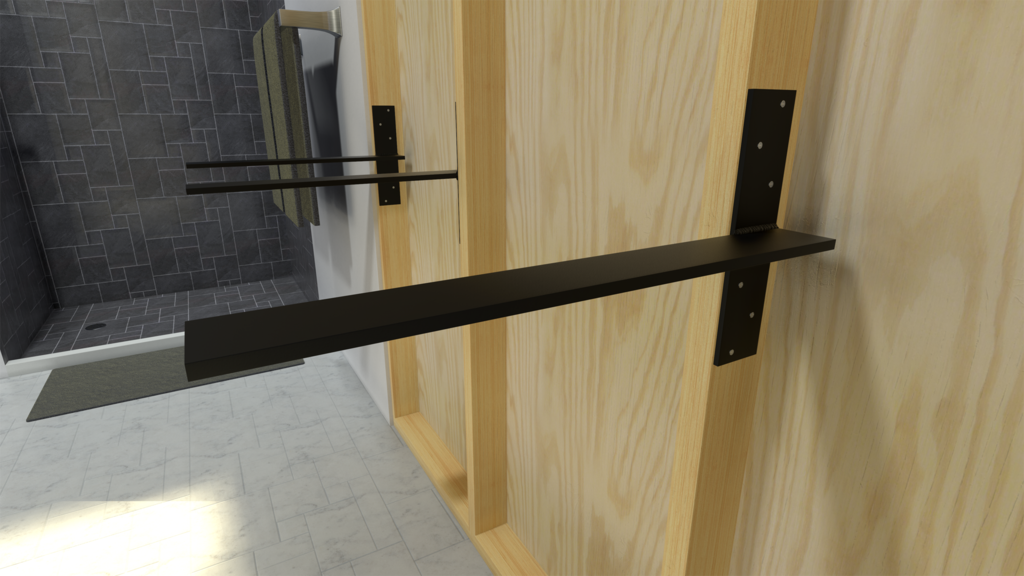

Free Hanging Shelf Bracket

Floating shelves, floating bathroom vanity, floating mantel or hearth, floating desk, floating shower seat/bench, all are supported by the Free Hanging Shelf Bracket. This bracket is the perfect concealed support bracket for supporting a floating bathroom vanity or floating shelf. Your choice of Steel or Solid Aluminum material.

This bracket is made to mount directly to the 2x4 wood studs inside your wall before the Sheetrock goes up (If studs are metal, watch the video below before installing the Free Hanging Shelf Bracket) the Free Hanging Shelf Bracket must be mounted into wood studs to support the weight of the shelf, etc. We recommend hitting each of your 2x4 studs for maximum protection.

How to install the Free Hanging Shelf Bracket to Metal Studs:
By mounting above, as well as below the horizontal piece, this prevents any type of twisting of the horizontal piece. After the bracket is mounted cover the wall with the finished board of your choice.

How to Determine the Size Bracket You Will Need:
When measuring for length remember the horizontal piece is measured tip to tip. Remember to also include the part of the brace that will be inside of the wall [usually about 3 inches]. For example, if you have a 12-inch wide shelf you would stay 2-4 inches from the outer edge, plus the 3 inches inside the wall. Therefore, 12 inches minus 3 inches (from the outer edge) plus 3 inches (inside the wall) equals a 12-inch Shelf Bracket.

How to Determine the Bracket Angle:
The vertical angle placement is determined by which side of the wall stud you are placing the bracket on {you are looking directly at the wall stud}. For example, If you are mounting to the left side of the wall stud you will need a right-angled bracket, if you are mounting to the right-hand side of the wall stud you will need a left-angled bracket.

Dimensions:
Length.... [choose in listing] This is the total length of the horizontal piece of the bracket from tip to tip. [Remember that approximately 3 inches will be inside the wall]
Width.... 2-1/2 inches
Thickness.... 1/2 inch

Dimensions of the Vertical Tang:
Vertical Length.... 11 inches [5.25 inches above horizontal piece and 5.25 inches below horizontal piece]
Width.... 2-1/2 inches
Thickness.... 1/4 inch
Hole Dimensions.... 1/4 inch [3 holes above horizontal piece and 3 holes below horizontal piece]

Free Hanging Shelf Bracket Features:
Made from Steel or Solid Aluminum Material.
Floating Shower Seat/Bench (We recommend using the Aluminum Bracket, Will Never Rust).
Virtually invisible, gives your shelf, countertop, desk, bathroom vanity or fireplace mantel the appearance of floating.
Aluminum Bracket is perfect for exterior applications.
The perfect countertop overhang bracket.
Easy to install.
Universal Angle is a straight cut edge.
Screw holes are on top and bottom of the vertical piece.
Welded for solid strength.
Made of 1/2-inch-thick by 2 1/2-inch-wide American Steel or Solid Aluminum.
Color-Black.
The bracket may be painted with anti-rust spray paint.

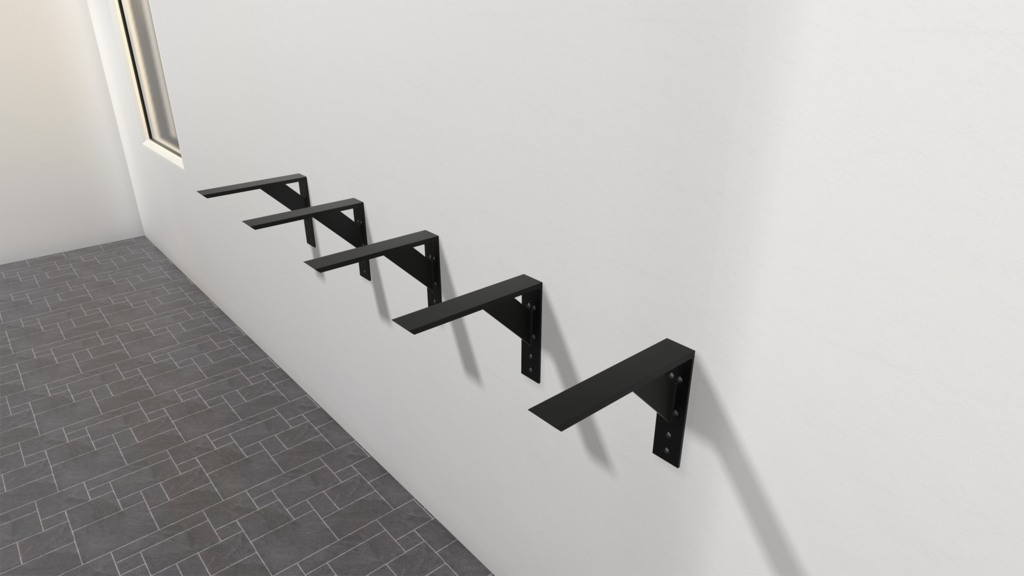

Large Shelf Bracket

Free floating shelves, floating bar-tops, or even floating desks are supported by the Large Shelf Bracket.This steel support bracket is the workhorse of the brackets, giving the industrial style many customers desire. This bracket is made to handle the toughest jobs. Because of the vertical angles which are welded in place, this bracket is almost indestructible.

It is ideal for interior and exterior applications.

Heavy Duty Shelf Bracket from The Original Granite Bracket

Note: The Large Shelf Bracket must be securely mounted into wood studs to ensure the weight of a shelf/countertop and its contents. We recommend hitting each wood stud.

Shelf Bracket for wall shelves by The Original Granite Bracket

(Brackets holding up the glass shelves in the picture are our Regular Shelf Bracket)

Horizontal Dimensions for the Large Shelf Bracket:
Length... [choose in listing] [the total horizontal length from tip to tip]
Width.... 2-1/2 inches
Thickness.... 1/2 inch
Vertical Dimensions:
Length.... 10 or 12 inches [see listing]
Width.... 2-1/2 inches
Thickness.... 1/4 inch

Hole Diameter.... 1/4 inch

Vertical Angle:
Width.... 2-1/2 inches
Thickness.... 1/4 inch

Bracket Features:
An economical way to protect your stone investment.
Use for heavy shelves, desks, or even countertops.
Easy to install.
Made of ½ inch thick by 2 ½ inches wide Solid American Metal welded for strength.
Bracket end has a beveled edge for safety.
Screw holes are on the vertical piece.
Black.
The bracket may be painted with any anti-rust spray paint.

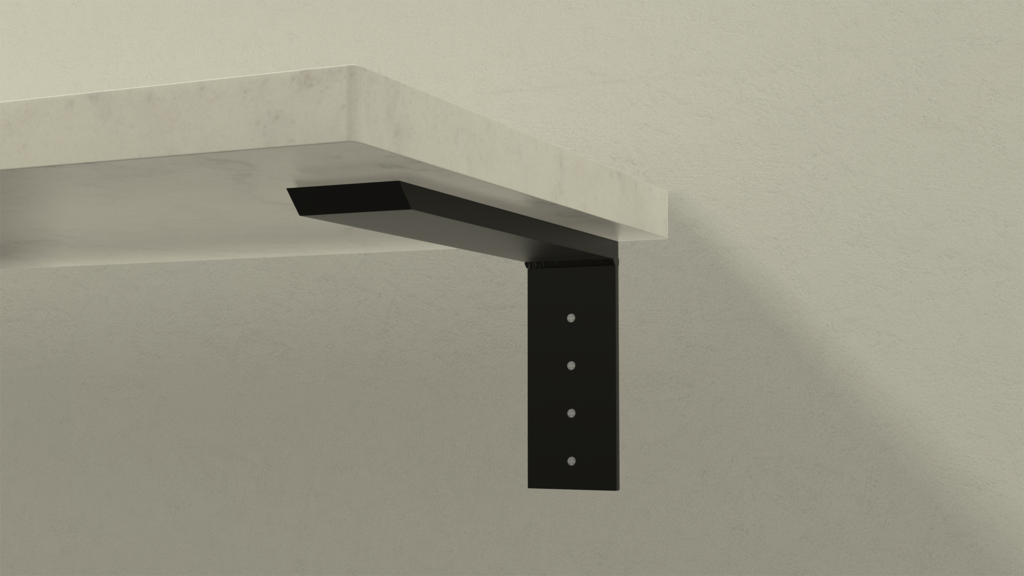

Regular Shelf Bracket

Floating shelves, with an industrial look, is achieved with our Regular Shelf Bracket. This strong bracket gives a sleek industrial style to your decor.
Industrial floating shelf brackets by The Original Granite Bracket
The Regular Shelf Bracket is used for smaller shelves or may also be used for countertops where granite has already been installed.
[Please do not confuse the Regular Shelf Bracket for the L Countertop Support Bracket. The L Countertop Support Bracket is used before granite is installed and is "hidden"]

The vertical piece has ¼ inch drilled holes:
4-inch bracket has 3 holes
6-inch bracket has 4 holes
10-inch bracket has 6 holes

Note: In the listing H=Horizontal and V=Vertical
Bracket Dimensions:
Length …….…. [you choose in listing. H equals horizontal length]
Width …………. 2 ½ inches
Thickness ….…. ½ inch


Vertical Piece:
Length... [see listing. V equals vertical length]
Width …………. 2 ½ inches
Thickness ….…. 1/4 inch

Bracket Features:
Easy to install.
Sleek Industrial Style.
Made of 2 ½ inches wide Solid American Metal.
Bracket end has beveled edge for safety and welded for strength.
Black.
Brackets may be painted with any anti-rust spray paint.

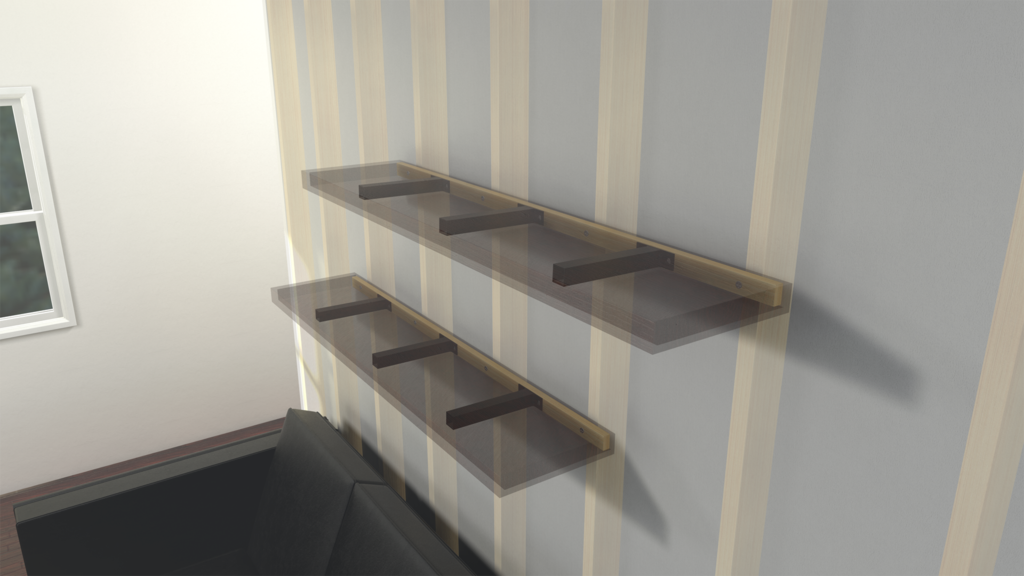

*NEW* Square Free Floating Shelf Bracket

Our  Square Peg Free Floating Shelf Bracket is designed to slip into a hollow shelf.
To install your shelf you would install a 1x2 or 1x3 to the face of the wall directly on the drywall in the place where you want the shelf. After installing the strip on the wall simply install the bracket to the Strip where you need them for the shelf size.
This bracket while being strong and durable is the perfect bracket to support those little knick-knacks or home décor.

Bracket Features:
Virtually invisible; because it slips into the hollow shelf.
Gives your countertop or shelf the appearance of floating.
Non-intrusive.
Economical way to install a decorative shelf.
Easy to install.
Made of a square 1 1/4 inch by 1 1/4 inch 1/8 thick A36 Hot Rolled steel.
Textured with a black rust inhibitor finish.

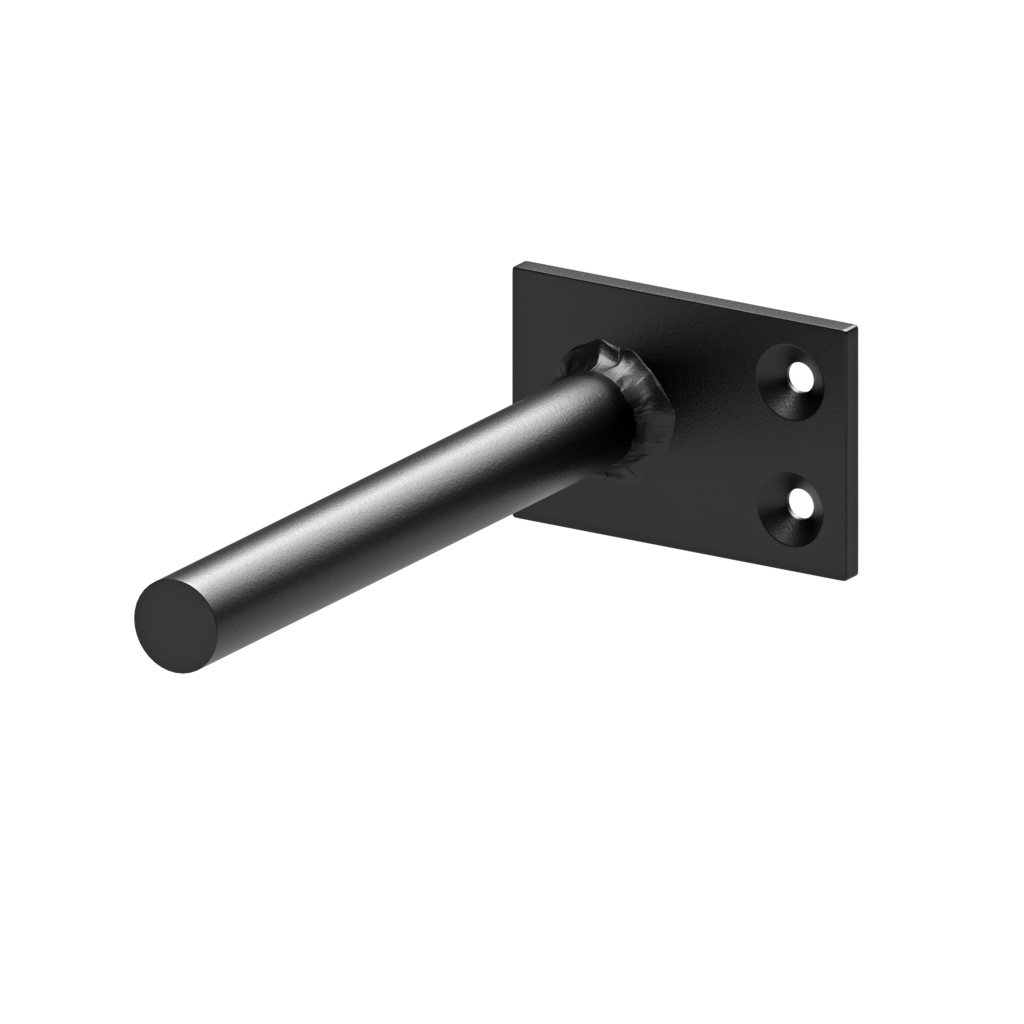

Round Free Floating Shelf Brackets

Our Free-Floating Shelf Brackets are manufactured out of high-quality steel sourced from the United States. These Brackets come in various sizes to provide versatility and security to your shelving or mantelpiece. Our brackets are clear coated in an anti-rust and corrosion solution to ensure the longevity of your brackets.


Sizes available to order are:

1 Peg 6 or 9 inches long

2 Peg 6 or 9 inches long

3 peg 6 or 9 inches long

Mounting Hardware is Included (2-inch silver wood screws)




Side Wall Hidden Countertop Support Bracket

Concealed support brackets for countertops that do not have a knee wall or pony wall to mount to are the perfect solution for our Side Wall Countertop Support Bracket.
This bracket mounts to the inside of the left or right-side cabinet wall.
Hidden Countertop Support from The Original Granite Bracket
This bracket has a vertical tang which is welded either to the left or right side of the horizontal piece. The angle placement is determined from the front view (where the 45-degree angle is cut.)

Dimensions for the Side Wall Hidden Bracket:
The horizontal part of the Side Wall Hidden Bracket dimensions is as follows:
Length …….…. [choose in listing] this is the total length of the bracket from tip to tip including space for vertical tang. Therefore, a 12-inch bracket is 12 inches from tip to tip. [Vertical tang is not used in determining length]
Width …………. 2 ½ inches
Thickness ….…. ½ inch

Dimensions for the Vertical Tang [Anchor part] Placed on the left or right side:
Length ………… 6 inches
Width …………. 2 ½ inches
Thickness ……… ¼ inch
Hole Diameter … 1/4 inch

Bracket Features:
Virtually invisible giving your granite countertop the appearance of floating.
Non-intrusive. No corbels needed. No knee-knocking.
Completely open space allowing room for chairs and legs.
An economical way to protect your countertop investment.
Easy to install.
Made of ½ inch thick by 2 ½ inches wide Solid American Metal welded for strength.
Bracket end has a beveled edge for safety.
Screw holes are placed on the vertical piece.
Black.
Brackets may be painted with any anti-rust spray paint.




Flat Wall Countertop Support Bracket

For supporting a kitchen countertop where the countertop is balanced in the middle of the knee wall or pony wall, the Flat Wall Hidden Countertop Support Bracket is the hidden steel bracket support of choice. The perfect concealed bracket for countertop overhang.

Dimensions:
Length ……..…. [you choose] Bracket is actually sized in length tip to tip; therefore, a 10-inch bracket is 10 inches tip to tip.
Width …………. 2 ½ inches
Thickness …..…. ½ inch
Countersunk Hole Diameter… 1/4 inch

Bracket Features:
Virtually invisible. Giving your granite countertop the appearance of floating.
Non-intrusive. No corbels needed. No knee-knocking.
Completely open space allowing room for chairs and legs.
An economical way to protect your countertop investment.
Easy to install.
Made of ½ inch thick by 2 ½ inches wide Solid American Metal for countertop overhangs.
Bracket end has a beveled edge for added safety.
Screw holes are countersunk into the brace for a flush installation for added support.
Black.
The bracket can be painted with any anti-rust spray paint.









Double Sided Island Support Bracket

Counter supports for kitchen island countertop or breakfast bar, the Double Sided Island Support Bracket is a hidden countertop support bracket designed to give support to a countertop that has an overhang on both sides of the cabinet. The perfect concealed countertop overhang bracket. There is no hardware needed for this bracket; the bracket rests in the "pocket" you create to hold the bracket.

Dimensions:
Length..... [You choose]
Width..... 2-1/2 inches
Thickness..... 1/2 inch

Features:
Virtually invisible giving your Kitchen Island the appearance of floating.
Non-intrusive. No corbels needed. No knee-knocking.
An economical way to protect your countertop investment.
Completely open space allowing room for chairs and legs.
Made of ½ inch thick by 2 ½ inches wide Solid American Metal for countertop overhangs.
Bracket end has a beveled edge for safety.
Black.
Brackets are paintable with anti-rust spray paint.












Wall Cleat Countertop Support Bracket

2"x 2" x 1/4" Aluminum Angle

Our Wall Cleat Countertop Support Bracket has many uses to include

. Behind Sinks

. Behind Dishwashers

. Walls where the countertop runs into the walls


We have 3 commonly used and convenient sizes for all applications

Pre-drilled holes that are countersunk for quick and easy installation

Double coated with a rust inhibitor black paint.


AVAILABLE LENGTHS:
12"
18"
26"


Cangzhou Futong is a full-service sheet metal fabricator that uses lean manufacturing tools and focuses on continuous improvement to give you the best results. From traditional metal fabrication services to 3D laser welding and rapid prototyping,Cangzhou Futong is your one-stop-shop for sheet metal projects from conception to production.

GET IN TOUCH

Contact us
Copyrights  2020 Cangzhou Futong Precision Manufacturing Co., Ltd. All rights reserved
