Deep Drawing Parts Sheet Metal Fabrication
Home » Products » Metal Stampings » Deep Drawing Parts Sheet Metal Fabrication
Share to:

Deep Drawing Parts Sheet Metal Fabrication

Since 2007, Futong Precision Manufacturing has been a leader in manufacturing precision stamped parts and assemblies for a wide variety of industries. Our capabilities include producing complex, custom components requiring tight tolerances and runs of 1,000 – 1,000,000 pieces. As a centrally located supplier to industries around the globe, we can meet tight lead times and ship easily to any destination.

Material:
Quantity:
  • custom
  • cangzhoufutong
  • 7308900000

At Cangzhou Futong, we produce high volume deep drawn components for a variety of industries, including aerospace components, automotive components, and more. Our deep draw part capabilities include in-house tooling combined with design and engineering support for diverse applications including cans, caps, cases, connectors, cups, eyelets, ferrules, housings, shells and more. When your project demands precision, contact us to discuss our deep draw stampings capabilities and parts.

metal stamping (11)

Deep drawn cans

metal stamping (15)

Deep drawn caps

stamping part (64)

Deep drawn eyelets

stamping part (273)

enclosure

stamping part (199)

Deep drawn covers

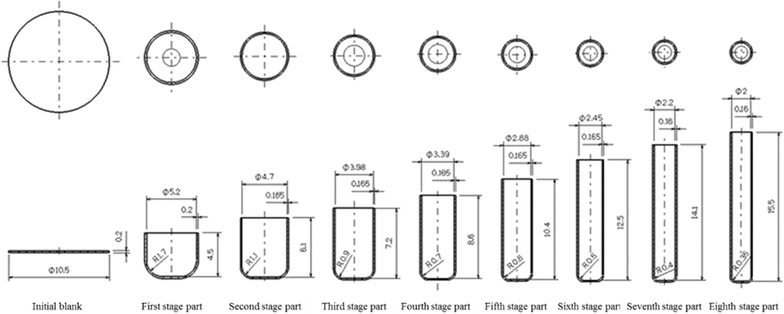

The Deep Drawn Part Process

Deep drawn parts are produced in high speed (ICOP) independently cam operated presses. Punches and dies are the tools used to draw and shape the raw material to produce the deep drawn formed part desired. The raw material used is in strip form. The first operation at the press cuts a flat blank from the strip of raw material. The blank is then carried by transfer fingers to the next operation where a cup is drawn. The cup is then transferred to the next station where the metal is drawn in a percentage allowed. It may take up to 12 of these operations to draw and shape into the final deep drawn product.

40064_2016_3371_Fig1_HTML

工厂设备副本

At Futong Precision Manufacturing, we are a global supplier of precision metal stampings and complex assemblies. We provide turnkey services, from design, tooling development, and sourcing to stamping, finishing, assembly, packaging, and shipping. Every one of our departments works together as a cohesive team and pays attention to every detail to ensure we deliver high caliber products on time and budget. We have a strong 15+ year history as a manufacturer of complex, custom components requiring tight tolerances, and we have an impressive level of customer retention.



Our stamping operations feature presses in the 45-ton to 1,100-ton range, which gives us the versatility to generate parts using thin gauge .004” foils as well as plate measuring up to 0.5” in thickness. We have capabilities in all stamping methods, including progressive die, continuous strip, compound die, deep drawing, etc. By leveraging our integrated knowledge of material properties and stamping technology, we develop the tooling and implement controllable manufacturing processes to repeatably produce dimensionally accurate parts. Materials we frequently work with include carbon steel, aluminum, copper, brass, and an extensive selection of other metals and alloys.



As an ISO 9001 certified metal stamping company, our maintenance program ensures all tooling, dies, press equipment, and quality instruments are in top condition. We inspect all incoming raw materials and carry out first article, in-process, and final inspections. With our coordinated project management, we manage secondary operations such as heat treating, passivation, plating, and other finishing services as well as machining, fabrication, and product assembly through a network of trusted partners.



We manufacture premier quality metals stampings for customers in many different industries, from automotive and aerospace to medical, transportation, and consumer products, to name a few. Some examples include electronic connectors, PCBs, filter components, furniture parts, medical diaphragms, hardware, and containers, among many others. We are customer-focused, reliable, and price competitive. To learn more about our stamping services or to make an inquiry, contact us directly.


ISO 9001:2015, IATF 16949:2016

Certifications1副本

The packages could be customized according to your requirements

Package

Customer Visit展会副本

Cangzhou Futong is a full-service sheet metal fabricator that uses lean manufacturing tools and focuses on continuous improvement to give you the best results. From traditional metal fabrication services to 3D laser welding and rapid prototyping,Cangzhou Futong is your one-stop-shop for sheet metal projects from conception to production.
