Foil Fix Fasteners for Fixing Building Foils To Timber Framing

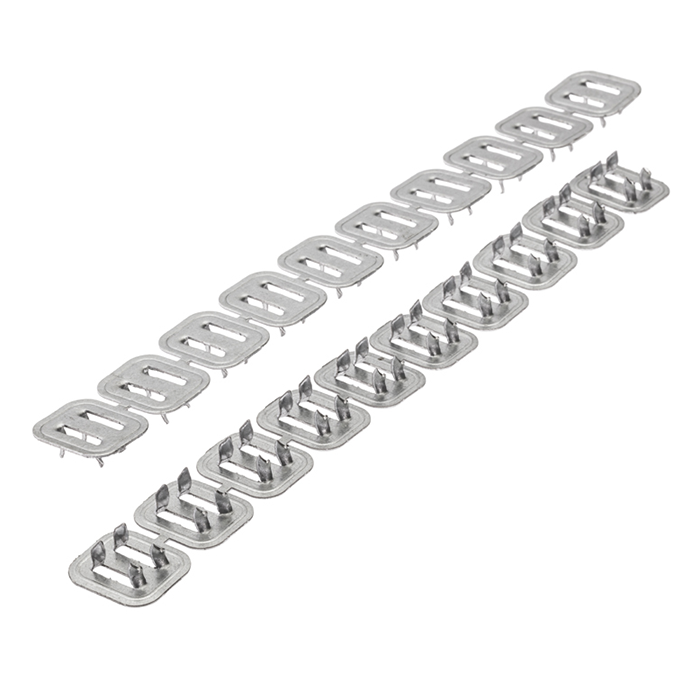

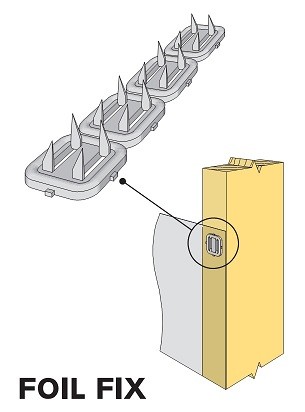

Foil Fix is an ideal connector for fixing building foils to timber framing. It is supplied in easy span-off sticks of 10 for fast, convenient and safe use on-site. Foil fix can be used to fix foil insulation to both wall and roof frames.

Size:
Availability:
Quantity:
  • custom

  • cangzhoufutong

  • 7308900000

Foil Fix is an ideal connector for fixing building foils to timber framing. It is supplied in easy span-off sticks of 10 for fast, convenient and safe use on-site. Foil fix can be used to fix foil insulation to both wall and roof frames.

Size

21mm*21mm

23mm*23mm

28mm*30mm

Material

Galvanized sheet DX51D-Z275

Material thickness

0.8mm

Color

Silver

62SFF_2


SFF-Foil-Fix-1


3 Timber Plate (2)


D-DS-49-03-02


D-DS-49-03-03 (1)


D-DS-49-03-04

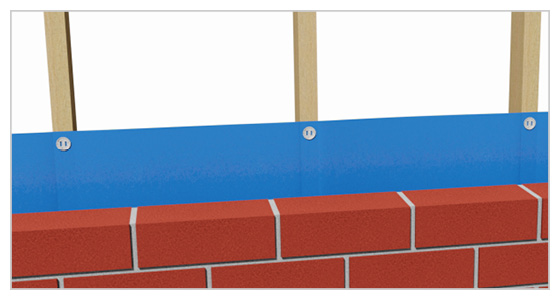

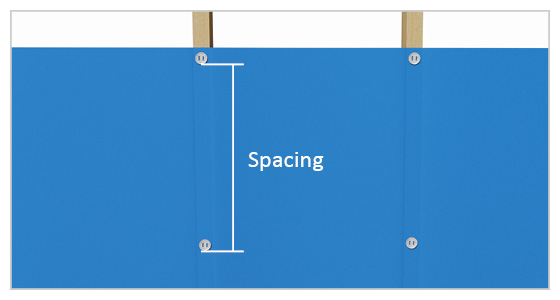

*Adaptability-Foil fix can be used to fix foil insulation to both wall and roof frames.
*Withdrawal Strength-Twisted nail profile allows ready penetration into and excellent holding power in all timbers, from the softest to the hardest.
*Tear Resistant Design-Rounded and coined edges, and a wide size (21mm), greatly reduce the tendency of foil insulation to tear in windy conditions.
*Ease of Use-Supplied in easy snap-off sticks of 10 for fast, convenient and safe use on-site.
*Good quality-Made from galvanized sheet steel for high resistance to corrosion.


Description:

Fixes foil insulation to timber frames.

Usage:

Fixing lining boards and sheet materials.

Quick and easy way of fixing foil products to timber structures.



Relevant Applications:

Fixing of foil insulation and shade cloth

Carport Construction

Pergola Construction



Features & Benefits

Large surface area gives a more superior hold than staples and clouts.

Reduces tearing.

Easy to attach to hardwood or pine.


Related Products

Gang nail plates
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Railroad crossties,Pallet and crating,Manufactured housing ,roof trusses,floor trusses.

Key words:Anti split plates,Gang nail plates,Mending plates,Metal connector plate,Truss connector plates.

0 实物 (14)

Galvanized gang nail plate

Galvanized gang nail plate is also could be called truss connector plate.A truss connector plate is a kind of tie. Truss Plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel in order to have teeth on one side. The teeth will allow to join different trusses together by being embedded into the lumber using an hydraulic press or a roller.

Nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using special hydraulic tools. As the plate is pressed in, the nails are all "driven" simultaneously and the compression between adjacent nails reduces the tendency to split.

A truss connector plate is manufactured from ASTM A653/A653M, A591, A792/A792M, or A167 structural quality steel and is protected with zinc or zinc-aluminum alloy coatings or their stainless steel equivalent. Metal connector plates have integral teeth and are manufactured to various sizes (that is, length and width) and thickness or gauges and are designed to laterally transmit loads in wood. They are also known as stud ties, metal connector plates, mending plates, or nail plates. However, not all types of nail plates are approved for use in trusses and other structurally critical placements.
