Galvanized Steel 8-pin Impaling Clips for Fiberglass Acoustical Panels Truss Nail Plate


Product Description

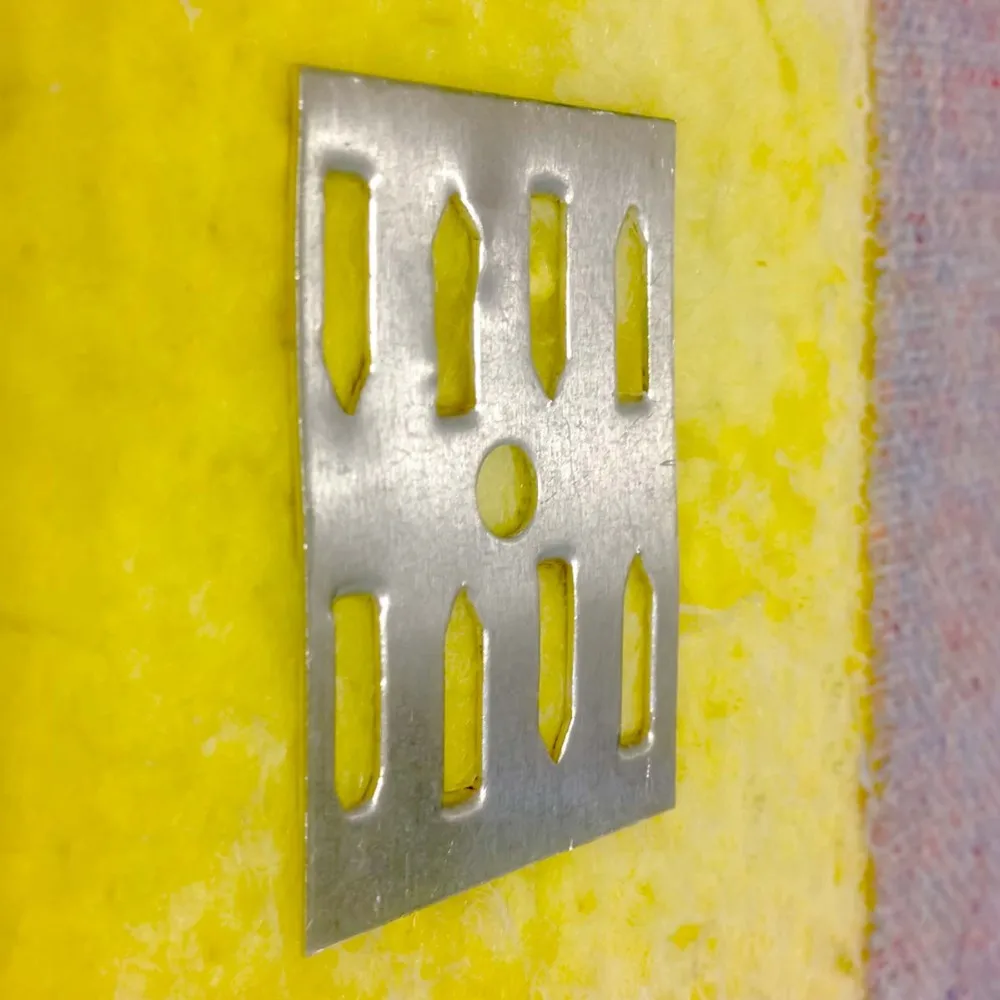

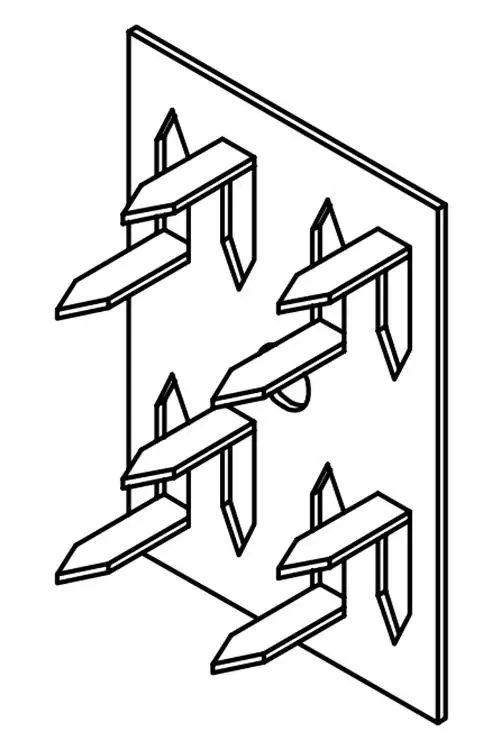

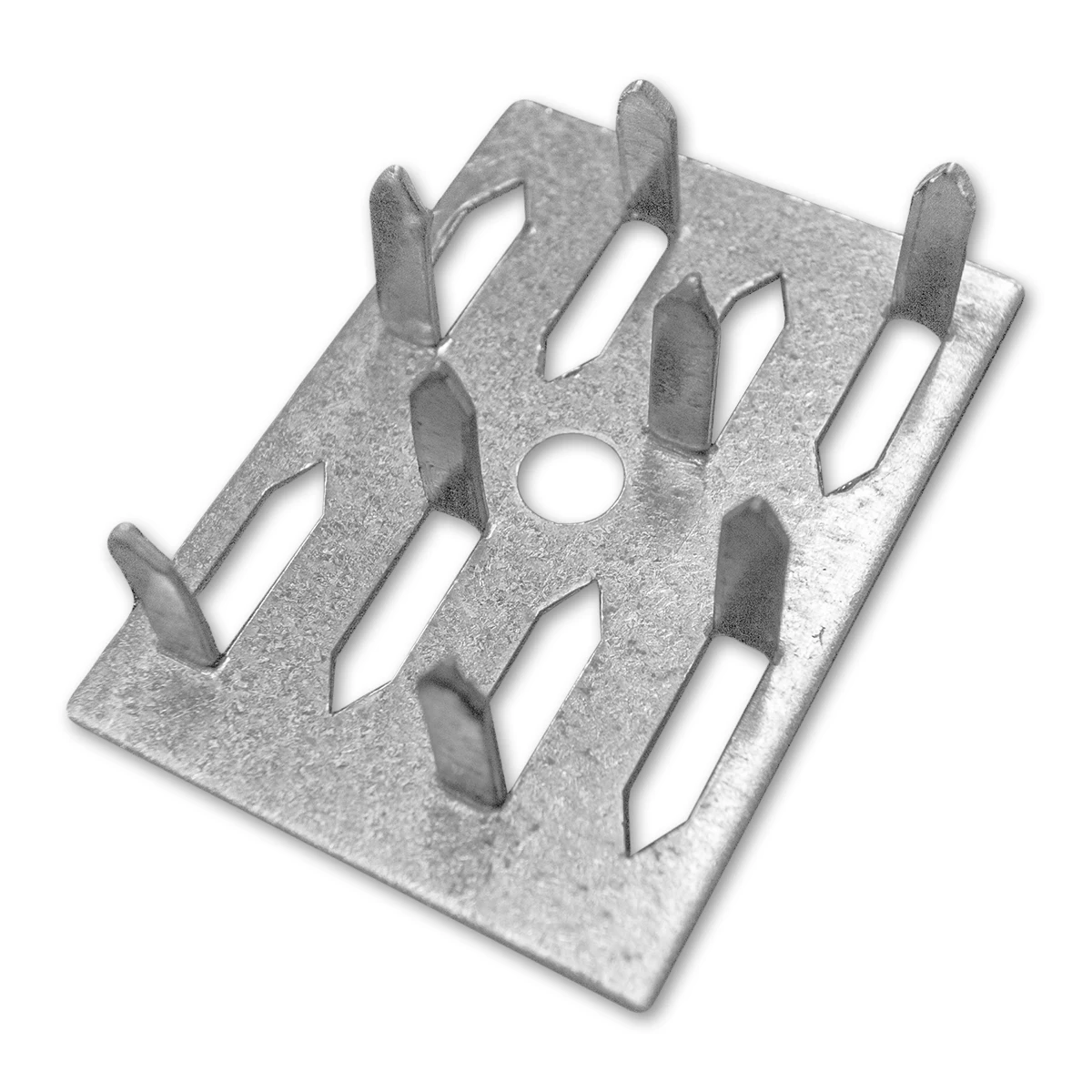

Impaling clips are used to easily attach Acoustic Panels (703 /705 Board) to walls.  Each clip has 8 spikes that stick into the fiberglass panel backing and hold the panel in place.  The dimensions of the clips are 2-1/8" x 1-1/2".  The impaling clips are installed on the wall by either 1 drywall screw (not included) or attached with adhesive (Multi-Seal 180). 4-6 impaling clips are recommended per standard 2' x 4' panel making sure one impaling clip is placed in each corner.  For panel applications requiring an air gap, wood spacer blocks can be installed between the acoustic panel mounting hardware and the drywall to keep the panel spaced off of the wall.

Product Name
Impaling clips
Material
galvanized steel
Color
silver white
Grade
Z275
Used
Construction

Pictures Show

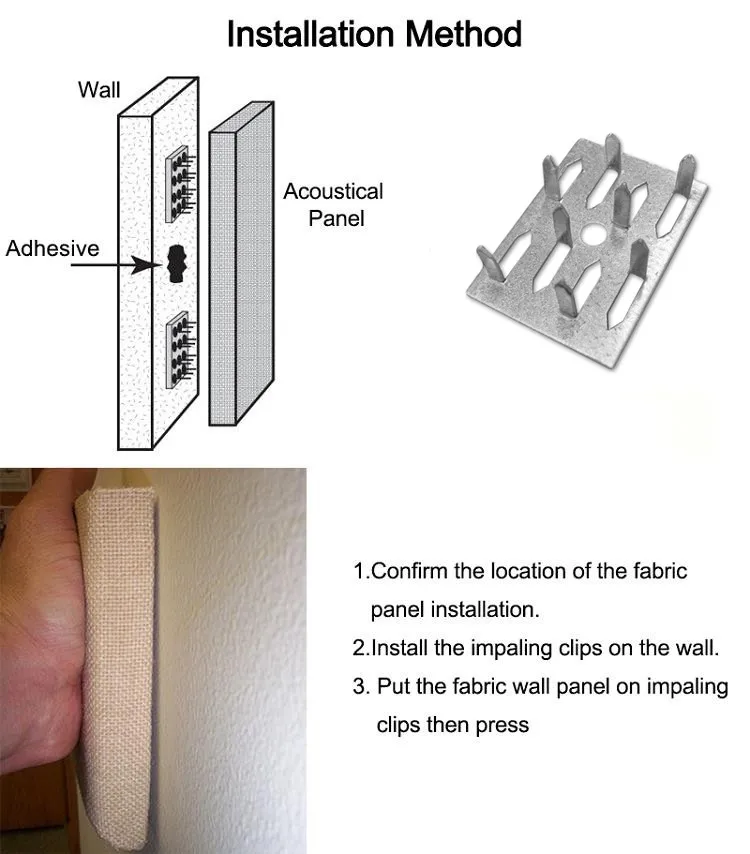

INSTRUCTIONS

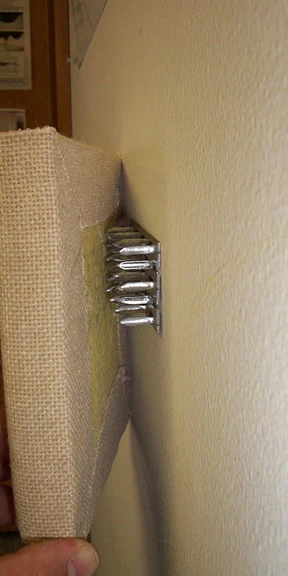

1.   Determine the location of your panel and have one person hold it up in place while the other person makes a light mark on the wall to show all 4 corners.

2.   Attach 4 Impaling Clips approx 3" off each corner edge and an optional 2 more impaling clips 3" in  from the edge of the center of the panel. Acoustic panel mounting hardware should be screwed into the studs, so moving the clips a little to hit a stud is recommended.  If screwing into a stud is not possible, use a drywall anchor type screw to ensure a proper hold.

3.  For permanent placement, use adhesive on the wall to stick the back of the panel to the wall (adhesive such as Multi-Seal 180 is recommended).

Applications

Acoustic Panel Hange

ProPanel installation

ELiTE Hanger

Sound Barrier

FR701 Acoustic Panel

Paintable Acoustic Panel

QS Acoustic Panel


desrf



Solution
Provide the best solution to customer.

Quality
Provide best quality product to customer.

Price
Reasonable price for customer, make win-win relationship.

Delivery
Quickly &safety delivery by all sort of transport mode.

Cooperation Mission
We win our customer by excellent quality, competitive price, prompt delivery, best solution.

NOTE:
One of our features is that products are customized according to clients' requirement
1. Good package design to protect stainless steel sheet metal fabrication parts .
1) Industrial Package: Plastic Film+Carton+Wooden Pallet
2) Commercial Package: Plastic Bag/Film+Carton+Wooded Pallet
3) As the clients requirements
2. We can arrange all kind of transportation to ship stainless steel sheet metal fabrication parts with low
freight.For example DHL,UPS,TNT,FEDEX express,or by sea as your required.

1.Q:Are you a factory or trading company?
A:We are a factory,has 7,000 square meters of manufacturing plants and RD bases

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in cangzhou City, Hebei Province, China, All our clients, from home or abroad,
are warmly welcome to visit us!

3. Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock.

Q: How can I get some samples?
A: We are honored to offer you samples.

4. Q:When will you make the delivery? OR How about your delivery time?
A: 3 to 7 days working days after received your payment.  It will take 30 to 60 days after receiving your advance payment.

The specific delivery time depends on the items and the quantity of your order, and the distance of your destinations.

5. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.

6.Q: What is your terms of packing?
A: Generally, we pack our goods in Plastic Bag and Outer Standard Carton . If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters (Accept  customized packing.)
