Heavy Duty Galvanised Restraint Strap Bend 1m Length (100mm Bend)
Home » Products » Timber Building Hardware » Galvanized Straps » Heavy Duty Galvanised Restraint Strap Bend 1m Length (100mm Bend)

loading

Share to:
sharethis sharing button

Heavy Duty Galvanised Restraint Strap Bend 1m Length (100mm Bend)

  • This Heavy Duty steel bent strap is ideal for projects where you need to create new walls or floors as it provides anchorage of roof and floor structures.
  • 1m Length. 150mm Bend
Availability:
Quantity:
  • 100mm Bend

  • cangzhoufutong

  • 7308900000

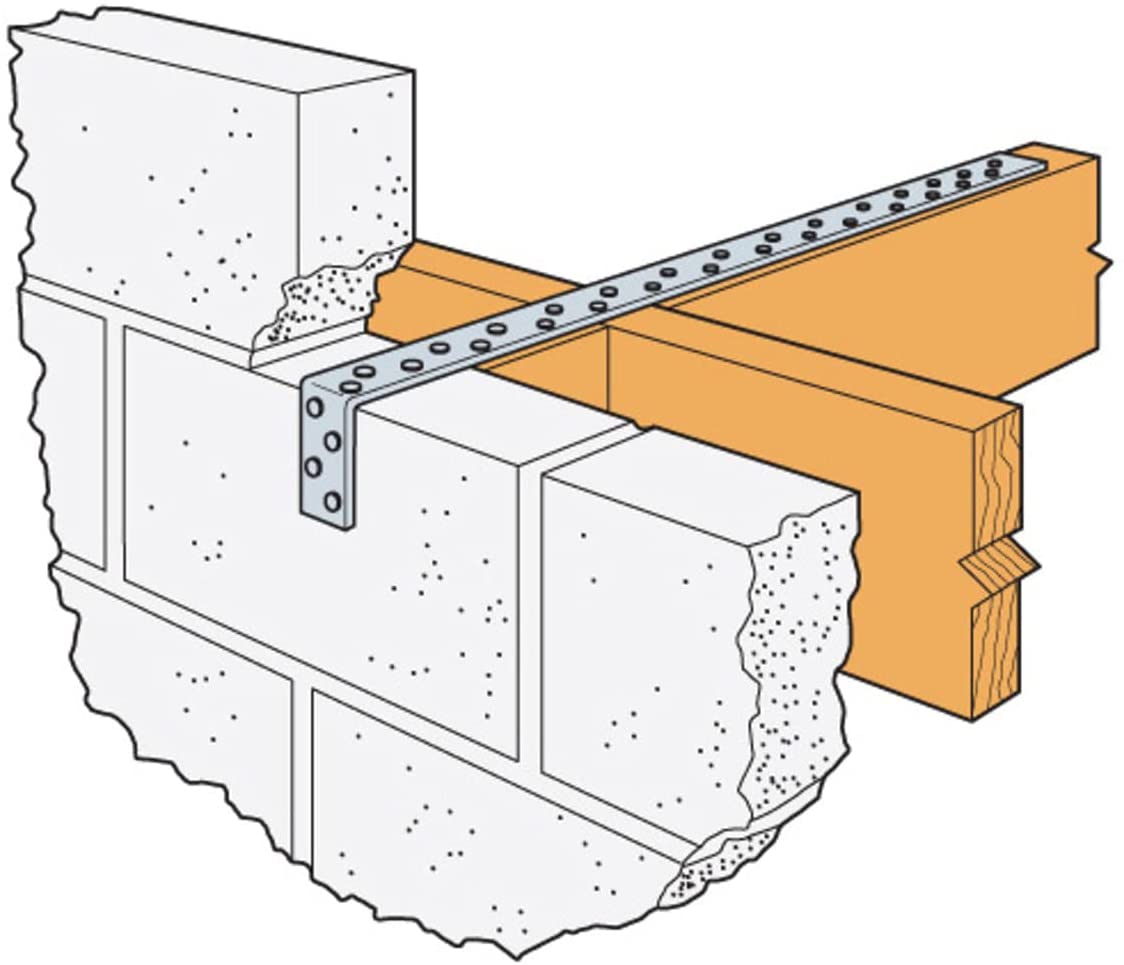

51-OfnqWYoS._AC_SL1200_

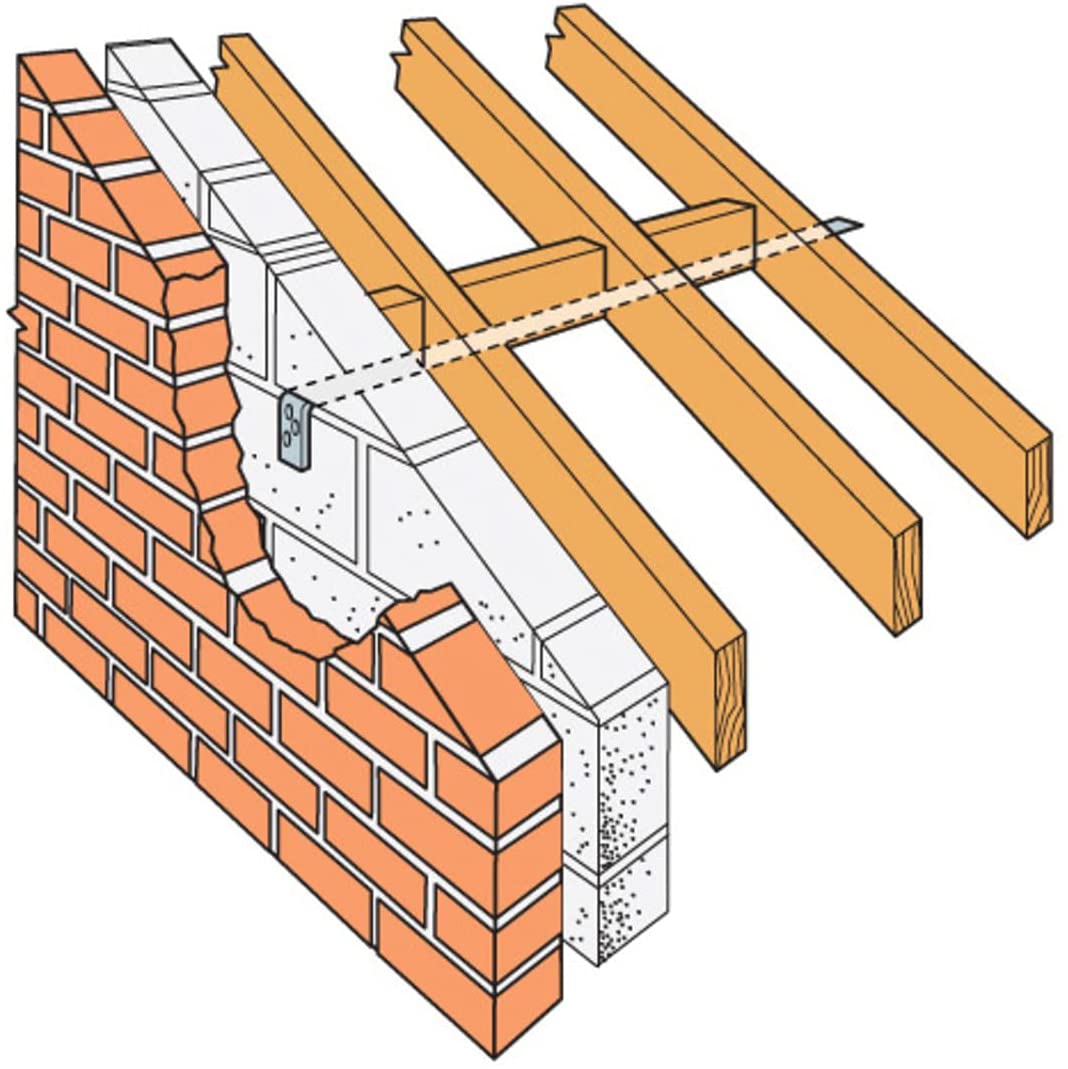

61mJOZB4usS._AC_SL1200_

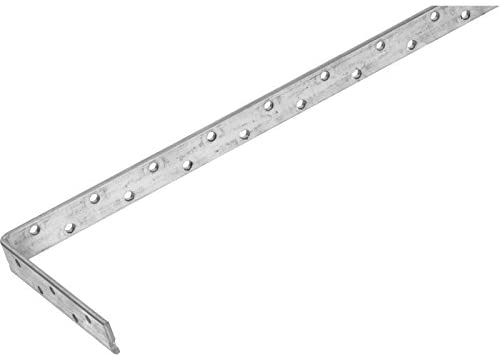

31rHiTzkzsL._AC_


  • This Heavy Duty steel bent strap is ideal for projects where you need to create new walls or floors as it provides anchorage of roof and floor structures.

  • 1m Length. 150mm Bend

  • CE Marked and tested to BS EN 845-1:2008

  • Designed in accordance with The Building Regulations, BS5268 Part 3 and other building standards for vertical and horizontal restraint.

514EOTIhnsS._AC_SL1169_



Metal Web Joists (4)

Metal web

Description

Name:Metal Web Joists

Specification:PS20-PS25-PS30-P40(See Drawing)

Material:Galvanized Steel DX51D-Z275-1.2mm


Cangzhoufutong Metal Web Joists System Advantage


OPEN WEB DESIGN

This allows for easier more practical installation of services including waste water pipes,

electrical cabling, heating pipes and other services. Also, no hole locating or drilling,

limits any possibility of incorrect workmanship and reduces labour costs.

LIGHT WEIGHT

The combination of smaller timber sections with the light weight metal web means

the finished product is lighter than it’s timber equivalents.

HANDLING AND INSTALLATION

The large bearing surface allows for speedy setting out of joists,

improves joist stability when laying out joists and enables easier fixing of decking materials.

LONG-TERM STABILITY

The reduced sections used in the manufacture of the metal web means less shrinkage

is experienced meaning a quieter and longer lasting floor system.

IMPROVED SOUND AND VIBRATION

The metal web floor system allows for the installation of a rigid Strongback

that reduces vibration and improves the overall performance of the floor.

Web Size Web Depth Diameter Pipe Weight of Web

No.of teeth

(ends/crotch)

PS20 184mm 100 0.15kg 12/24
PS25 227mm 150 0.17kg 18/36
PS30 284mm 200 0.20kg 18/36
PS40 392mm 280 0.26kg 20/40


Metal Web Joists (1)
Metal Web Joists (1)



TH6T10 (1)

TYLOK PLATES

1.0mm G300 Z275 Galvanised Steel

Tylok Plate is designed for on-site use and can readily be applied by hammer as well as hydraulic press. Tylok Plates are suitable for a wide range of applications such as trusses, formwork, site splicing etc. Tylok Plates are manufactured from galvanised steel in a range of sizes.

Plate code example - 6T10 = 6 rows of teeth long x 10 teeth wide.






Code

Width

Length

2T5

34mm

60mm

4T5

34mm

120mm

6T5

34mm

180mm

8T5

34mm

240mm

10T5

34mm

300mm

12T5

34mm

360mm

14T5

34mm

420mm

16T5

34mm

480mm

Coil T5

34mm

15m

Code

Width

Length

4T15

102mm

120mm

6T15

102mm

180mm

8T15

102mm

240mm

10T15

102mm

300mm

12T15

102mm

360mm

Coil T15

102mm

15m


Code

Width

Length

2T10

68mm

60mm

4T10

68mm

120mm

6T10

68mm

180mm

8T10

68mm

240mm

10T10

68mm

300mm

12T10

68mm

360mm

14T10

68mm

420mm

16T10

68mm

480mm

Coil T10

68mm

15m

Code

Width

Length

6T20

136mm

180mm

8T20

136mm

240mm

10T20

136mm

300mm

12T20

136mm

360mm

14T20

136mm

420mm

Coil T20

136mm

15m




THSBS400 (1)

SHEET BRACE STRAPS

0.9mm x 25mm G300 Z275 Galvanised Steel

Punched strap available in lengths of 200mm, 300mm, 400mm and 600mm, to provide a hold down for use with sheet bracing.

Refer to brochure for application data. Available in Stainless Steel 304.


微信图片_2020082911244112

MULTI-BRACE

30mx50mmx1.0mm G300 Z275 Galvanised Steel

This product has been developed for commercial building situations as an alternative to steel rod or timber as a bracing element. Coils are available in lengths of 10m, 15m and 30m, punched to allow easy fixing, using 11 x Nails 30mm x 3.15mm diameter at each end.

Tensioners are available separately if required.

Available in Stainless Steel 304. (Stainless Steel tensioners not available)


THSB30 (1)

STRIP BRACE

Strip Brace is supplied in 10m, 15m and 30m coils for use as bracing or in short lengths as a jointing material.

Strip Brace provides an ideal bracing system for walls, or roof plane.

One crossed pair of strips may be used in each location where a diagonal brace is required. Fix using 5 x Nails 30mm x 3.15mm diameter at each end.

A heavier gauge Export Grade (item suffix EX) is also available in 10m and 30m coils. Tensioners are included with marked boxes of Strip Brace coils or available separately if required.

Available in Stainless Steel 304. (Stainless Steel tensioners not available)

Sizes Weight/kg Material type
30m* 30mm  *1mm  7.065 DX51D+Z275
30m* 30mm  *0.8mm  5.652 DX51D+Z275
30m* 30mm  *0.6mm  4.239 DX51D+Z275
30m* 25mm  *1mm  5.8875 DX51D+Z275
30m* 25mm  *0.8mm  4.71 DX51D+Z275
30m* 25mm  *0.6mm  3.5325 DX51D+Z275
30m* 20mm  *1mm  4.71 DX51D+Z275
30m* 20mm  *0.8mm  3.768 DX51D+Z275
30m* 20mm  *0.6mm  2.826 DX51D+Z275
50m* 30mm  *1mm  11.4 DX51D+Z275
50m* 30mm  *0.8mm  9.1 DX51D+Z275
THMB30 (1)

THMB30

THSB30 (1)

THSB30

微信图片_202008300746556

Package

微信图片_202010081136503

Tensioners


As a professional manufacturer of timber connectors,Cangzhou Futong can supply multifarious timber connectors,including truss connector plate,perforated steel strap,galvanized steel strap,gang nail plates,galvanized nail plates,toothed connectors,toothed plates,joist hangers,truss hangers,saddle purlin hanger,angle connectors,timber connectors,wood connectors,lumber connectors,timber plates,post support,steel ties,corner brace and so on.


Gang nail plates
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Railroad crossties,Pallet and crating,Manufactured housing ,roof trusses,floor trusses.

Key words:Anti split plates,Gang nail plates,Mending plates,Metal connector plate,Truss connector plates.

0 实物 (14)

Galvanized gang nail plate

Galvanized gang nail plate is also could be called truss connector plate.A truss connector plate is a kind of tie. Truss Plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel in order to have teeth on one side. The teeth will allow to join different trusses together by being embedded into the lumber using an hydraulic press or a roller.

Nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using special hydraulic tools. As the plate is pressed in, the nails are all "driven" simultaneously and the compression between adjacent nails reduces the tendency to split.

A truss connector plate is manufactured from ASTM A653/A653M, A591, A792/A792M, or A167 structural quality steel and is protected with zinc or zinc-aluminum alloy coatings or their stainless steel equivalent. Metal connector plates have integral teeth and are manufactured to various sizes (that is, length and width) and thickness or gauges and are designed to laterally transmit loads in wood. They are also known as stud ties, metal connector plates, mending plates, or nail plates. However, not all types of nail plates are approved for use in trusses and other structurally critical placements.



03208908_01c

Gang nail plates

01

Tylok plates

Tooth-Plate-Connector--(3)

toothed-plate connector


Foil fix

Joist hanger

Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Manufactured housing ,roof trusses,floor trusses.

Key words:Joist hanger,truss hanger

Diary-Entry-No.16-2

Joist hanger,truss hanger

Joist hangers represent a critical design component that helps ensure a building's structural integrity. When factoring in load requirements, member size and costs, deciding on the best solution can be a daunting process. The Joist Hanger Selector from SUREALONG makes selecting the most cost‑effective hanger based on the type of installation, options and loads easier than ever.

003


4.-A190-Timber-to-Timber-Short-Leg-Joist-Hanger-file033191


4-Joist-hanger-(1)


78SDE30030


未标题-24


IMG_6295

Corner brackets

IMG_6308

Triple Grip

IMG_6346

Stud ties

dsfdwwe-(2)

Steel strip

AB722EA927F6A34D63DB822A76A6AE16

Post support

IMG_6300

Brick ties


工厂设备副本

At Futong Precision Manufacturing, we are a global supplier of precision metal stampings and complex assemblies. We provide turnkey services, from design, tooling development, and sourcing to stamping, finishing, assembly, packaging, and shipping. Every one of our departments works together as a cohesive team and pays attention to every detail to ensure we deliver high caliber products on time and budget. We have a strong 15+ year history as a manufacturer of complex, custom components requiring tight tolerances, and we have an impressive level of customer retention.



Our stamping operations feature presses in the 45-ton to 1,100-ton range, which gives us the versatility to generate parts using thin gauge .004” foils as well as plate measuring up to 0.5” in thickness. We have capabilities in all stamping methods, including progressive die, continuous strip, compound die, deep drawing, etc. By leveraging our integrated knowledge of material properties and stamping technology, we develop the tooling and implement controllable manufacturing processes to repeatably produce dimensionally accurate parts. Materials we frequently work with include carbon steel, aluminum, copper, brass, and an extensive selection of other metals and alloys.



As an ISO 9001 certified metal stamping company, our maintenance program ensures all tooling, dies, press equipment, and quality instruments are in top condition. We inspect all incoming raw materials and carry out first article, in-process, and final inspections. With our coordinated project management, we manage secondary operations such as heat treating, passivation, plating, and other finishing services as well as machining, fabrication, and product assembly through a network of trusted partners.



We manufacture premier quality metals stampings for customers in many different industries, from automotive and aerospace to medical, transportation, and consumer products, to name a few. Some examples include electronic connectors, PCBs, filter components, furniture parts, medical diaphragms, hardware, and containers, among many others. We are customer-focused, reliable, and price competitive. To learn more about our stamping services or to make an inquiry, contact us directly.


ISO 9001:2015, IATF 16949:2016

Certifications1副本

The packages could be customized according to your requirements

Package
