Description

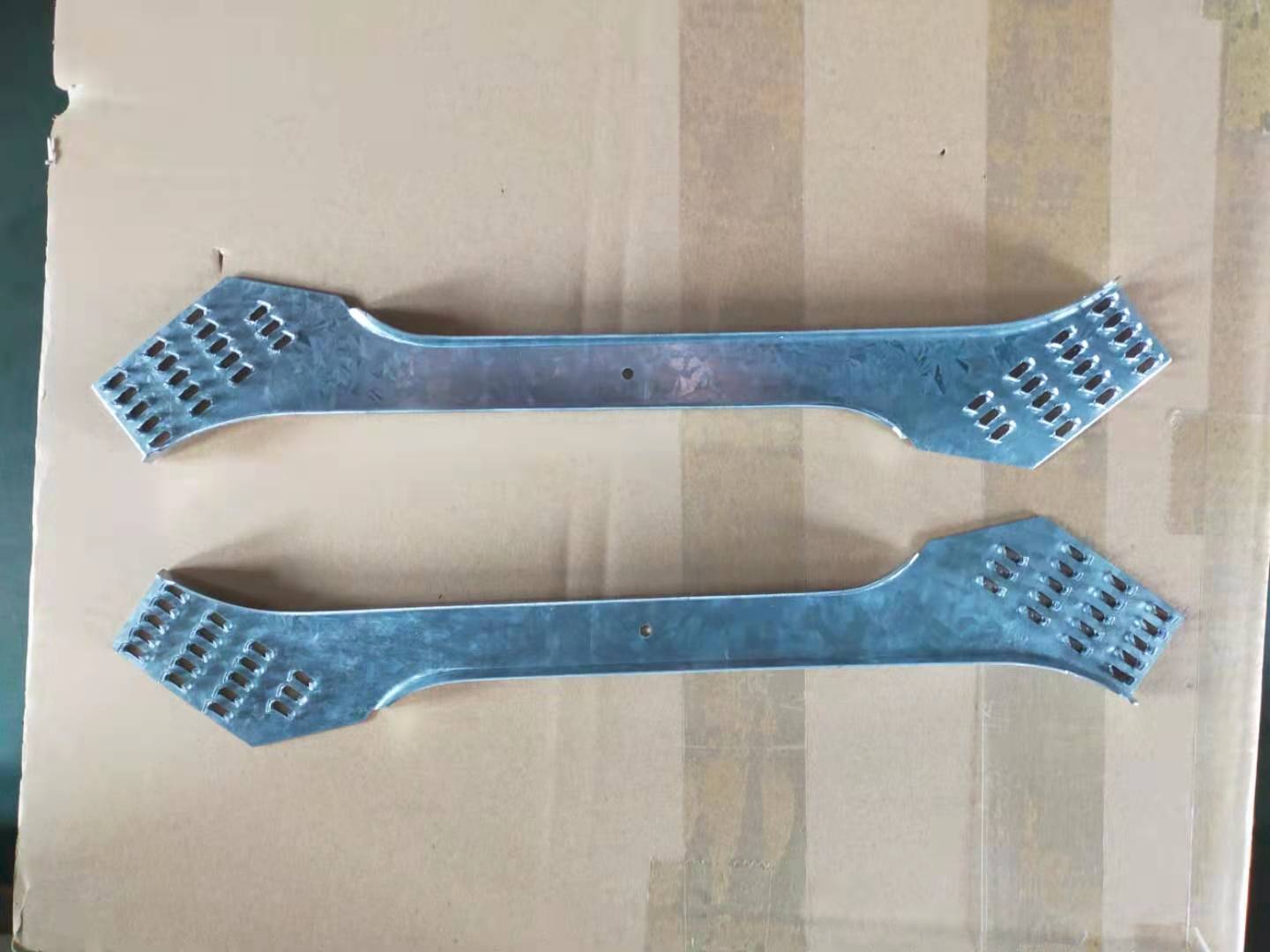

Name:Metal Web Joists

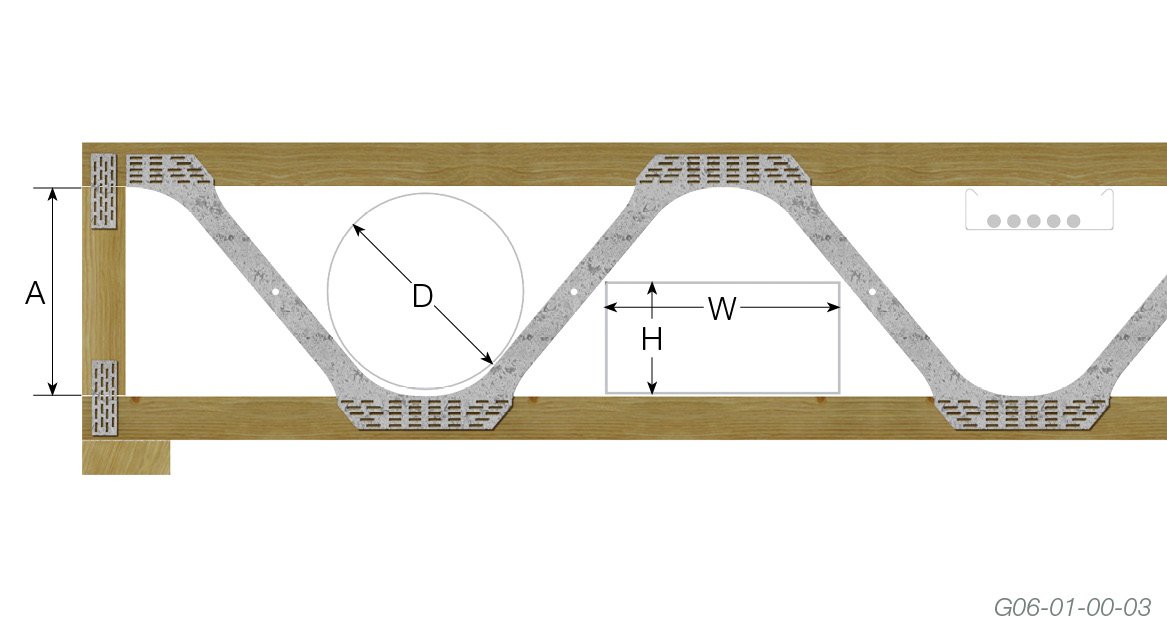

Specification:PS20-PS25-PS30-P40(See Drawing)
Material:Galvanized Steel DX51D-Z275-1.2mm
Cangzhoufutong Metal Web Joists System Advantage
OPEN WEB DESIGN
This allows for easier more practical installation of services including waste water pipes,
electrical cabling, heating pipes and other services. Also, no hole locating or drilling,
limits any possibility of incorrect workmanship and reduces labour costs.
LIGHT WEIGHT
The combination of smaller timber sections with the light weight metal web means
the finished product is lighter than it’s timber equivalents.
HANDLING AND INSTALLATION
The large bearing surface allows for speedy setting out of joists,
improves joist stability when laying out joists and enables easier fixing of decking materials.
LONG-TERM STABILITY
The reduced sections used in the manufacture of the metal web means less shrinkage
is experienced meaning a quieter and longer lasting floor system.
IMPROVED SOUND AND VIBRATION
The metal web floor system allows for the installation of a rigid Strongback
that reduces vibration and improves the overall performance of the floor.
Web Size | Web Depth | Diameter Pipe | Weight of Web | No.of teeth (ends/crotch) |
PS20 | 184mm | 100 | 0.15kg | 12/24 |
PS25 | 227mm | 150 | 0.17kg | 18/36 |
PS30 | 284mm | 200 | 0.20kg | 18/36 |
PS40 | 392mm | 280 | 0.26kg | 20/40 |
TYLOK PLATES
1.0mm G300 Z275 Galvanised Steel
Tylok Plate is designed for on-site use and can readily be applied by hammer as well as hydraulic press. Tylok Plates are suitable for a wide range of applications such as trusses, formwork, site splicing etc. Tylok Plates are manufactured from galvanised steel in a range of sizes.

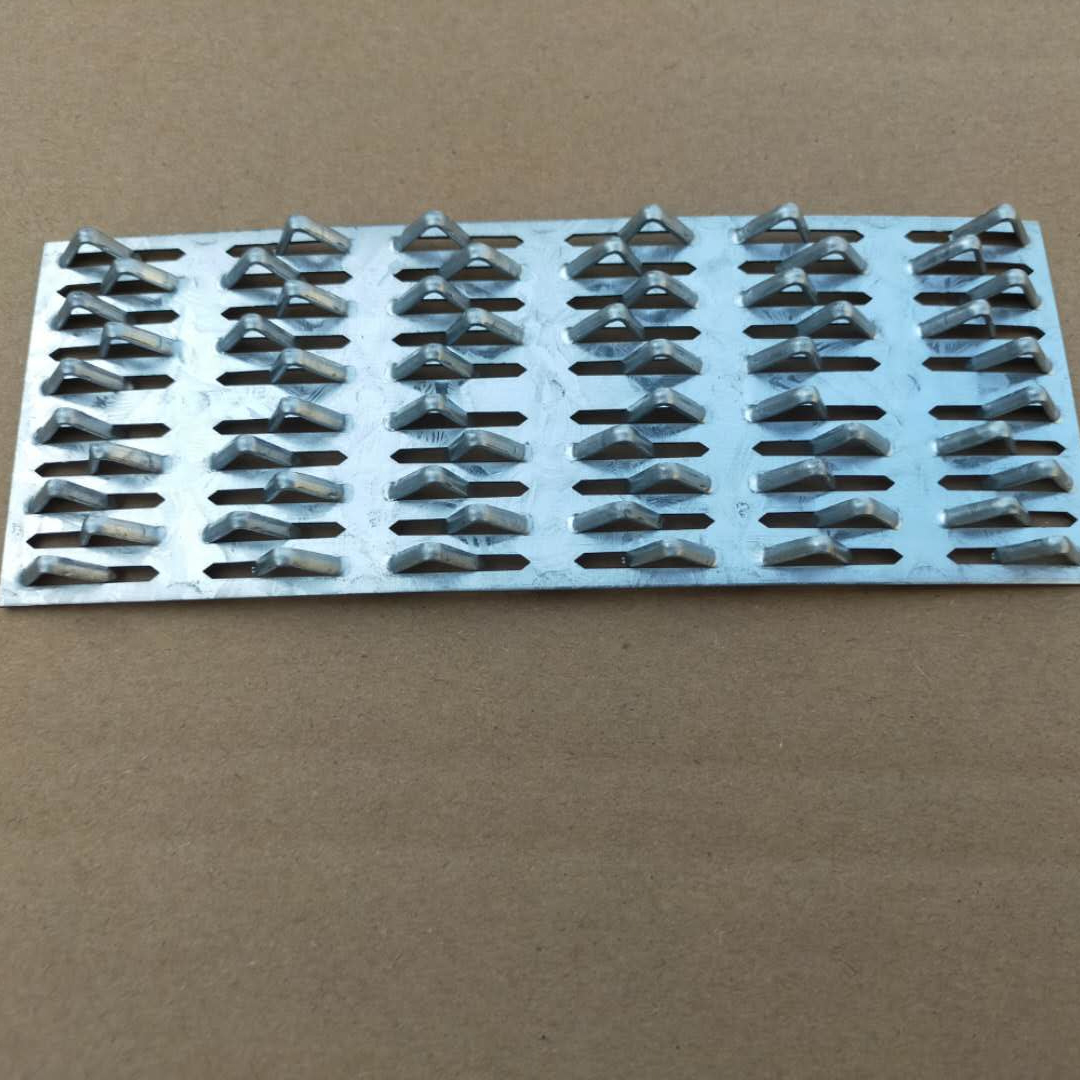

Plate code example - 6T10 = 6 rows of teeth long x 10 teeth wide.
Code | Width | Length |
2T5 | 34mm | 60mm |
4T5 | 34mm | 120mm |
6T5 | 34mm | 180mm |
8T5 | 34mm | 240mm |
10T5 | 34mm | 300mm |
12T5 | 34mm | 360mm |
14T5 | 34mm | 420mm |
16T5 | 34mm | 480mm |
Coil T5 | 34mm | 15m |
Code | Width | Length |
4T15 | 102mm | 120mm |
6T15 | 102mm | 180mm |
8T15 | 102mm | 240mm |
10T15 | 102mm | 300mm |
12T15 | 102mm | 360mm |
Coil T15 | 102mm | 15m |
Code | Width | Length |
2T10 | 68mm | 60mm |
4T10 | 68mm | 120mm |
6T10 | 68mm | 180mm |
8T10 | 68mm | 240mm |
10T10 | 68mm | 300mm |
12T10 | 68mm | 360mm |
14T10 | 68mm | 420mm |
16T10 | 68mm | 480mm |
Coil T10 | 68mm | 15m |
Code | Width | Length |
6T20 | 136mm | 180mm |
8T20 | 136mm | 240mm |
10T20 | 136mm | 300mm |
12T20 | 136mm | 360mm |
14T20 | 136mm | 420mm |
Coil T20 | 136mm | 15m |
SHEET BRACE STRAPS
0.9mm x 25mm G300 Z275 Galvanised Steel

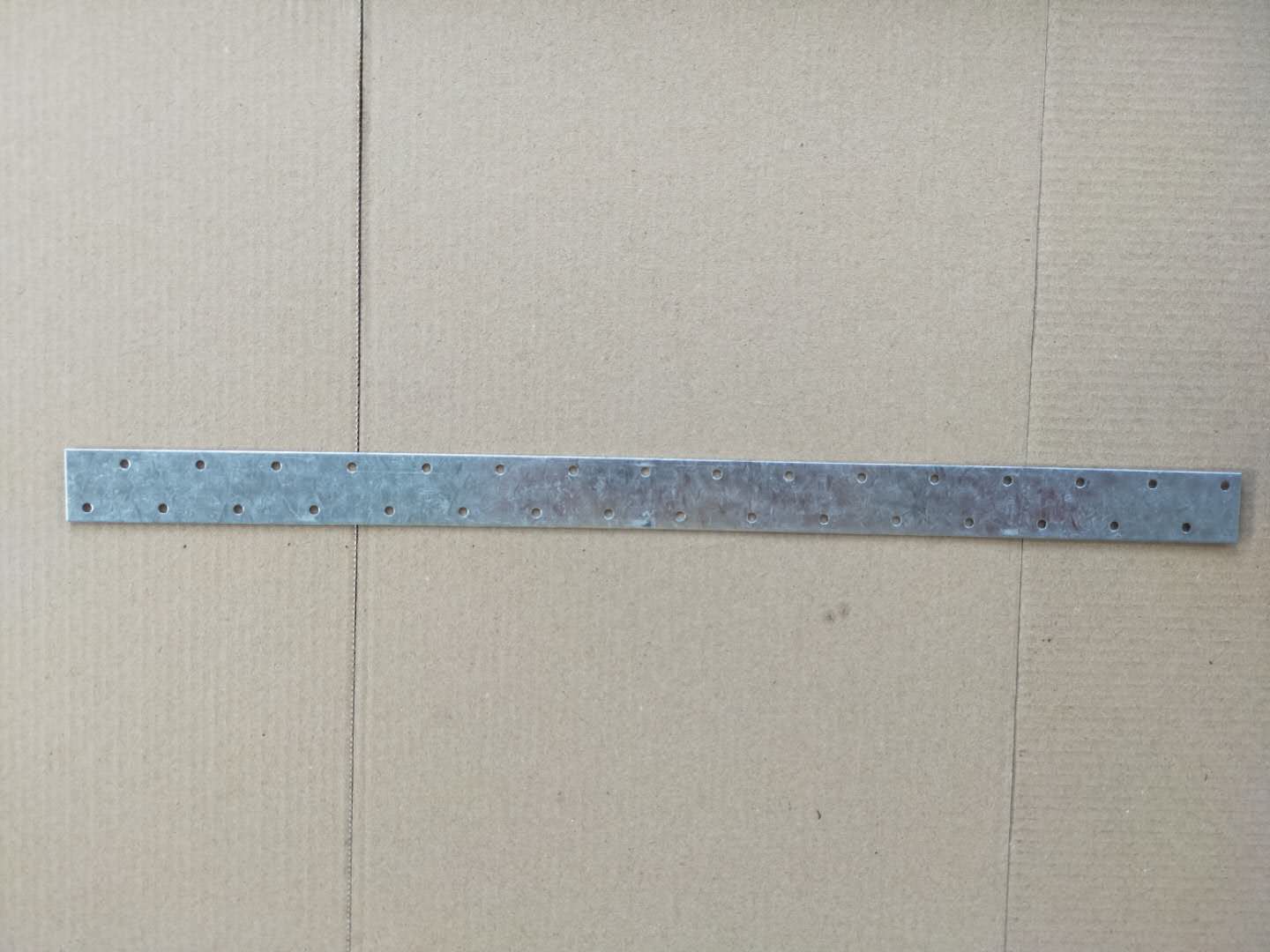

Punched strap available in lengths of 200mm, 300mm, 400mm and 600mm, to provide a hold down for use with sheet bracing.
Refer to brochure for application data. Available in Stainless Steel 304.
MULTI-BRACE
30mx50mmx1.0mm G300 Z275 Galvanised Steel
This product has been developed for commercial building situations as an alternative to steel rod or timber as a bracing element. Coils are available in lengths of 10m, 15m and 30m, punched to allow easy fixing, using 11 x Nails 30mm x 3.15mm diameter at each end.
Tensioners are available separately if required.
Available in Stainless Steel 304. (Stainless Steel tensioners not available)
STRIP BRACE

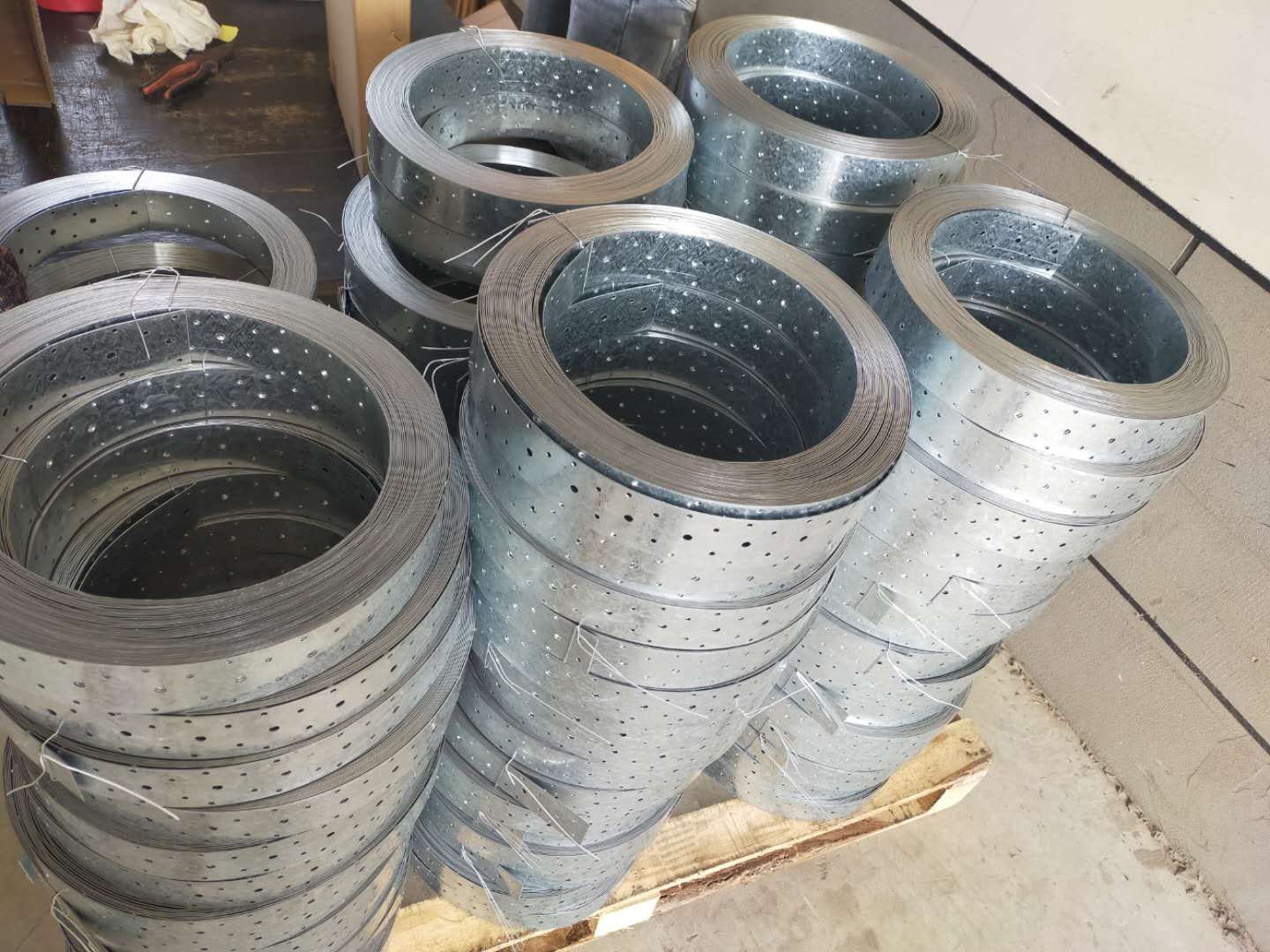

Strip Brace is supplied in 10m, 15m and 30m coils for use as bracing or in short lengths as a jointing material.
Strip Brace provides an ideal bracing system for walls, or roof plane.
One crossed pair of strips may be used in each location where a diagonal brace is required. Fix using 5 x Nails 30mm x 3.15mm diameter at each end.
A heavier gauge Export Grade (item suffix EX) is also available in 10m and 30m coils. Tensioners are included with marked boxes of Strip Brace coils or available separately if required.
Available in Stainless Steel 304. (Stainless Steel tensioners not available)
Sizes | Weight/kg | Material type |
30m* 30mm *1mm | 7.065 | DX51D+Z275 |
30m* 30mm *0.8mm | 5.652 | DX51D+Z275 |
30m* 30mm *0.6mm | 4.239 | DX51D+Z275 |
30m* 25mm *1mm | 5.8875 | DX51D+Z275 |
30m* 25mm *0.8mm | 4.71 | DX51D+Z275 |
30m* 25mm *0.6mm | 3.5325 | DX51D+Z275 |
30m* 20mm *1mm | 4.71 | DX51D+Z275 |
30m* 20mm *0.8mm | 3.768 | DX51D+Z275 |
30m* 20mm *0.6mm | 2.826 | DX51D+Z275 |
50m* 30mm *1mm | 11.4 | DX51D+Z275 |
50m* 30mm *0.8mm | 9.1 | DX51D+Z275 |
THMB30
THSB30

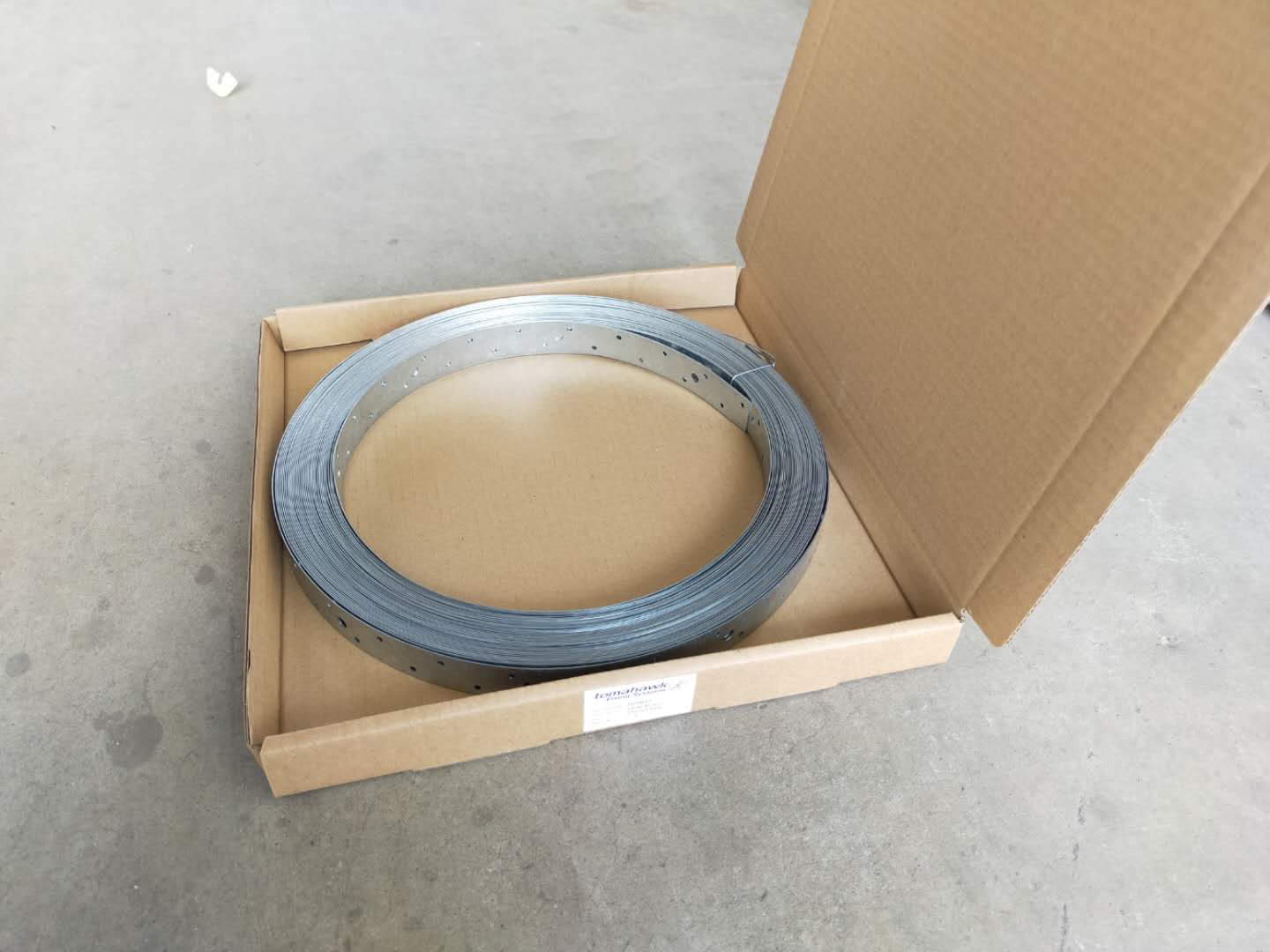

Package
Tensioners
As a professional manufacturer of timber connectors,Cangzhou Futong can supply multifarious timber connectors,including truss connector plate,perforated steel strap,galvanized steel strap,gang nail plates,galvanized nail plates,toothed connectors,toothed plates,joist hangers,truss hangers,saddle purlin hanger,angle connectors,timber connectors,wood connectors,lumber connectors,timber plates,post support,steel ties,corner brace and so on.
Gang nail plates
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Railroad crossties,Pallet and crating,Manufactured housing ,roof trusses,floor trusses.
Key words:Anti split plates,Gang nail plates,Mending plates,Metal connector plate,Truss connector plates.
Galvanized gang nail plate
Galvanized gang nail plate is also could be called truss connector plate.A truss connector plate is a kind of tie. Truss Plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel in order to have teeth on one side. The teeth will allow to join different trusses together by being embedded into the lumber using an hydraulic press or a roller.
Nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using special hydraulic tools. As the plate is pressed in, the nails are all "driven" simultaneously and the compression between adjacent nails reduces the tendency to split.
A truss connector plate is manufactured from ASTM A653/A653M, A591, A792/A792M, or A167 structural quality steel and is protected with zinc or zinc-aluminum alloy coatings or their stainless steel equivalent. Metal connector plates have integral teeth and are manufactured to various sizes (that is, length and width) and thickness or gauges and are designed to laterally transmit loads in wood. They are also known as stud ties, metal connector plates, mending plates, or nail plates. However, not all types of nail plates are approved for use in trusses and other structurally critical placements.
Gang nail plates
Tylok plates
toothed-plate connector
Foil fix
Joist hanger
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Manufactured housing ,roof trusses,floor trusses.
Key words:Joist hanger,truss hanger
Joist hanger,truss hanger
Joist hangers represent a critical design component that helps ensure a building's structural integrity. When factoring in load requirements, member size and costs, deciding on the best solution can be a daunting process. The Joist Hanger Selector from SUREALONG makes selecting the most cost‑effective hanger based on the type of installation, options and loads easier than ever.
Corner brackets
Triple Grip
Stud ties
Steel strip
Post support
Brick ties
Metal web
Description
Name:Metal Web Joists
Specification:PS20-PS25-PS30-P40(See Drawing)
Material:Galvanized Steel DX51D-Z275-1.2mm
Cangzhoufutong Metal Web Joists System Advantage
OPEN WEB DESIGN
This allows for easier more practical installation of services including waste water pipes,
electrical cabling, heating pipes and other services. Also, no hole locating or drilling,
limits any possibility of incorrect workmanship and reduces labour costs.
LIGHT WEIGHT
The combination of smaller timber sections with the light weight metal web means
the finished product is lighter than it’s timber equivalents.
HANDLING AND INSTALLATION
The large bearing surface allows for speedy setting out of joists,
improves joist stability when laying out joists and enables easier fixing of decking materials.
LONG-TERM STABILITY
The reduced sections used in the manufacture of the metal web means less shrinkage
is experienced meaning a quieter and longer lasting floor system.
IMPROVED SOUND AND VIBRATION
The metal web floor system allows for the installation of a rigid Strongback
that reduces vibration and improves the overall performance of the floor.
Web Size | Web Depth | Diameter Pipe | Weight of Web | No.of teeth (ends/crotch) |
PS20 | 184mm | 100 | 0.15kg | 12/24 |
PS25 | 227mm | 150 | 0.17kg | 18/36 |
PS30 | 284mm | 200 | 0.20kg | 18/36 |
PS40 | 392mm | 280 | 0.26kg | 20/40 |
TYLOK PLATES
1.0mm G300 Z275 Galvanised Steel
Tylok Plate is designed for on-site use and can readily be applied by hammer as well as hydraulic press. Tylok Plates are suitable for a wide range of applications such as trusses, formwork, site splicing etc. Tylok Plates are manufactured from galvanised steel in a range of sizes.
Plate code example - 6T10 = 6 rows of teeth long x 10 teeth wide.
Code | Width | Length |
2T5 | 34mm | 60mm |
4T5 | 34mm | 120mm |
6T5 | 34mm | 180mm |
8T5 | 34mm | 240mm |
10T5 | 34mm | 300mm |
12T5 | 34mm | 360mm |
14T5 | 34mm | 420mm |
16T5 | 34mm | 480mm |
Coil T5 | 34mm | 15m |
Code | Width | Length |
4T15 | 102mm | 120mm |
6T15 | 102mm | 180mm |
8T15 | 102mm | 240mm |
10T15 | 102mm | 300mm |
12T15 | 102mm | 360mm |
Coil T15 | 102mm | 15m |
Code | Width | Length |
2T10 | 68mm | 60mm |
4T10 | 68mm | 120mm |
6T10 | 68mm | 180mm |
8T10 | 68mm | 240mm |
10T10 | 68mm | 300mm |
12T10 | 68mm | 360mm |
14T10 | 68mm | 420mm |
16T10 | 68mm | 480mm |
Coil T10 | 68mm | 15m |
Code | Width | Length |
6T20 | 136mm | 180mm |
8T20 | 136mm | 240mm |
10T20 | 136mm | 300mm |
12T20 | 136mm | 360mm |
14T20 | 136mm | 420mm |
Coil T20 | 136mm | 15m |
SHEET BRACE STRAPS
0.9mm x 25mm G300 Z275 Galvanised Steel
Punched strap available in lengths of 200mm, 300mm, 400mm and 600mm, to provide a hold down for use with sheet bracing.
Refer to brochure for application data. Available in Stainless Steel 304.
MULTI-BRACE
30mx50mmx1.0mm G300 Z275 Galvanised Steel
This product has been developed for commercial building situations as an alternative to steel rod or timber as a bracing element. Coils are available in lengths of 10m, 15m and 30m, punched to allow easy fixing, using 11 x Nails 30mm x 3.15mm diameter at each end.
Tensioners are available separately if required.
Available in Stainless Steel 304. (Stainless Steel tensioners not available)
STRIP BRACE
Strip Brace is supplied in 10m, 15m and 30m coils for use as bracing or in short lengths as a jointing material.
Strip Brace provides an ideal bracing system for walls, or roof plane.
One crossed pair of strips may be used in each location where a diagonal brace is required. Fix using 5 x Nails 30mm x 3.15mm diameter at each end.
A heavier gauge Export Grade (item suffix EX) is also available in 10m and 30m coils. Tensioners are included with marked boxes of Strip Brace coils or available separately if required.
Available in Stainless Steel 304. (Stainless Steel tensioners not available)
Sizes | Weight/kg | Material type |
30m* 30mm *1mm | 7.065 | DX51D+Z275 |
30m* 30mm *0.8mm | 5.652 | DX51D+Z275 |
30m* 30mm *0.6mm | 4.239 | DX51D+Z275 |
30m* 25mm *1mm | 5.8875 | DX51D+Z275 |
30m* 25mm *0.8mm | 4.71 | DX51D+Z275 |
30m* 25mm *0.6mm | 3.5325 | DX51D+Z275 |
30m* 20mm *1mm | 4.71 | DX51D+Z275 |
30m* 20mm *0.8mm | 3.768 | DX51D+Z275 |
30m* 20mm *0.6mm | 2.826 | DX51D+Z275 |
50m* 30mm *1mm | 11.4 | DX51D+Z275 |
50m* 30mm *0.8mm | 9.1 | DX51D+Z275 |
THMB30
THSB30
Package
Tensioners
As a professional manufacturer of timber connectors,Cangzhou Futong can supply multifarious timber connectors,including truss connector plate,perforated steel strap,galvanized steel strap,gang nail plates,galvanized nail plates,toothed connectors,toothed plates,joist hangers,truss hangers,saddle purlin hanger,angle connectors,timber connectors,wood connectors,lumber connectors,timber plates,post support,steel ties,corner brace and so on.
Gang nail plates
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Railroad crossties,Pallet and crating,Manufactured housing ,roof trusses,floor trusses.
Key words:Anti split plates,Gang nail plates,Mending plates,Metal connector plate,Truss connector plates.
Galvanized gang nail plate
Galvanized gang nail plate is also could be called truss connector plate.A truss connector plate is a kind of tie. Truss Plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel in order to have teeth on one side. The teeth will allow to join different trusses together by being embedded into the lumber using an hydraulic press or a roller.
Nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using special hydraulic tools. As the plate is pressed in, the nails are all "driven" simultaneously and the compression between adjacent nails reduces the tendency to split.
A truss connector plate is manufactured from ASTM A653/A653M, A591, A792/A792M, or A167 structural quality steel and is protected with zinc or zinc-aluminum alloy coatings or their stainless steel equivalent. Metal connector plates have integral teeth and are manufactured to various sizes (that is, length and width) and thickness or gauges and are designed to laterally transmit loads in wood. They are also known as stud ties, metal connector plates, mending plates, or nail plates. However, not all types of nail plates are approved for use in trusses and other structurally critical placements.
Gang nail plates
Tylok plates
toothed-plate connector
Foil fix
Joist hanger
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Manufactured housing ,roof trusses,floor trusses.
Key words:Joist hanger,truss hanger
Joist hanger,truss hanger
Joist hangers represent a critical design component that helps ensure a building's structural integrity. When factoring in load requirements, member size and costs, deciding on the best solution can be a daunting process. The Joist Hanger Selector from SUREALONG makes selecting the most cost‑effective hanger based on the type of installation, options and loads easier than ever.
Corner brackets
Triple Grip
Stud ties
Steel strip
Post support
Brick ties
