OEM Precision Zinc Plated Steel Timber Connector for Building House
Home » Products » Timber Building Hardware » OEM Precision Zinc Plated Steel Timber Connector for Building House
Share to:

OEM Precision Zinc Plated Steel Timber Connector for Building House

As a professional manufacturer of timber connectors,Cangzhou Futong can supply multifarious timber connectors,including truss connector plate,perforated steel strap,galvanized steel strap,gang nail plates,galvanized nail plates,toothed connectors,toothed plates,joist hangers,truss hangers,saddle purlin hanger,angle connectors,timber connectors,wood connectors,lumber connectors,timber plates,post support,steel ties,corner brace and so on.
Certificated by CE and ISO9001:2015,we had lot of experiences to export European market,North American market,New Zealand and Australia market.and we also could supply OEM and ODM service.

Quantity:
  • custom
  • cangzhoufutong
  • 7308900000

As a professional manufacturer of timber connectors,Cangzhou Futong can supply multifarious timber connectors,including truss connector plate,perforated steel strap,galvanized steel strap,gang nail plates,galvanized nail plates,toothed connectors,toothed plates,joist hangers,truss hangers,saddle purlin hanger,angle connectors,timber connectors,wood connectors,lumber connectors,timber plates,post support,steel ties,corner brace and so on.

Gang nail plates
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Railroad crossties,Pallet and crating,Manufactured housing ,roof trusses,floor trusses.

Key words:Anti split plates,Gang nail plates,Mending plates,Metal connector plate,Truss connector plates.

0 实物 (14)

Galvanized gang nail plate

Galvanized gang nail plate is also could be called truss connector plate.A truss connector plate is a kind of tie. Truss Plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel in order to have teeth on one side. The teeth will allow to join different trusses together by being embedded into the lumber using an hydraulic press or a roller.

Nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using special hydraulic tools. As the plate is pressed in, the nails are all "driven" simultaneously and the compression between adjacent nails reduces the tendency to split.

A truss connector plate is manufactured from ASTM A653/A653M, A591, A792/A792M, or A167 structural quality steel and is protected with zinc or zinc-aluminum alloy coatings or their stainless steel equivalent. Metal connector plates have integral teeth and are manufactured to various sizes (that is, length and width) and thickness or gauges and are designed to laterally transmit loads in wood. They are also known as stud ties, metal connector plates, mending plates, or nail plates. However, not all types of nail plates are approved for use in trusses and other structurally critical placements.



03208908_01c

Gang nail plates

01

Tylok plates

Tooth-Plate-Connector--(3)

toothed-plate connector


Foil fix

Joist hanger

Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Manufactured housing ,roof trusses,floor trusses.

Key words:Joist hanger,truss hanger

Diary-Entry-No.16-2

Joist hanger,truss hanger

Joist hangers represent a critical design component that helps ensure a building's structural integrity. When factoring in load requirements, member size and costs, deciding on the best solution can be a daunting process. The Joist Hanger Selector from SUREALONG makes selecting the most cost‑effective hanger based on the type of installation, options and loads easier than ever.

003


4.-A190-Timber-to-Timber-Short-Leg-Joist-Hanger-file033191


4-Joist-hanger-(1)


78SDE30030


未标题-24


IMG_6295

Corner brackets

IMG_6308

Triple Grip

IMG_6346

Stud ties

dsfdwwe-(2)

Steel strip

AB722EA927F6A34D63DB822A76A6AE16

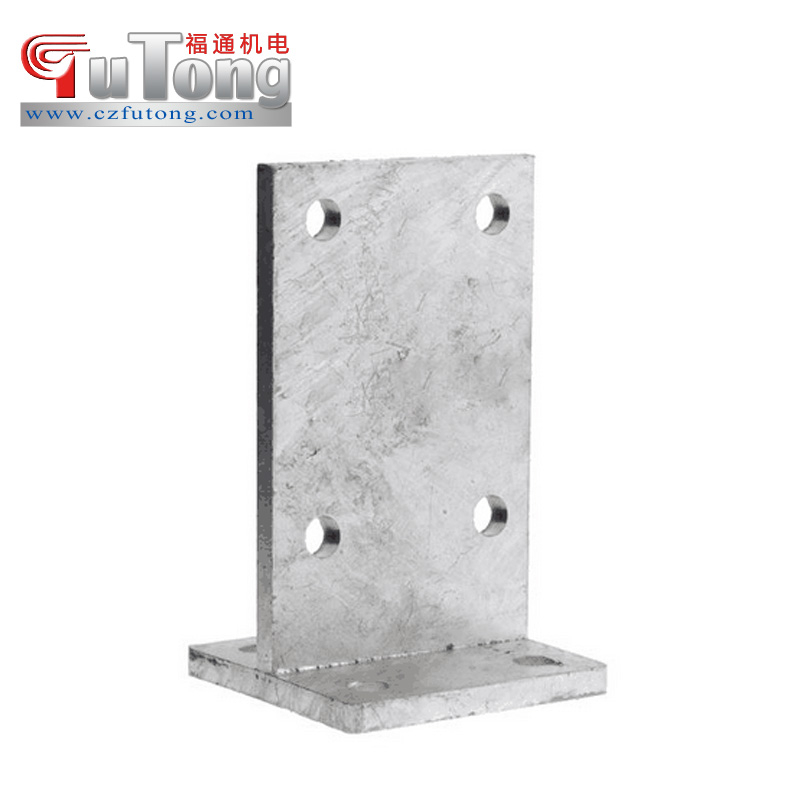

Post support

IMG_6300

Brick ties


工厂设备副本

At Futong Precision Manufacturing, we are a global supplier of precision metal stampings and complex assemblies. We provide turnkey services, from design, tooling development, and sourcing to stamping, finishing, assembly, packaging, and shipping. Every one of our departments works together as a cohesive team and pays attention to every detail to ensure we deliver high caliber products on time and budget. We have a strong 15+ year history as a manufacturer of complex, custom components requiring tight tolerances, and we have an impressive level of customer retention.



Our stamping operations feature presses in the 45-ton to 1,100-ton range, which gives us the versatility to generate parts using thin gauge .004” foils as well as plate measuring up to 0.5” in thickness. We have capabilities in all stamping methods, including progressive die, continuous strip, compound die, deep drawing, etc. By leveraging our integrated knowledge of material properties and stamping technology, we develop the tooling and implement controllable manufacturing processes to repeatably produce dimensionally accurate parts. Materials we frequently work with include carbon steel, aluminum, copper, brass, and an extensive selection of other metals and alloys.



As an ISO 9001 certified metal stamping company, our maintenance program ensures all tooling, dies, press equipment, and quality instruments are in top condition. We inspect all incoming raw materials and carry out first article, in-process, and final inspections. With our coordinated project management, we manage secondary operations such as heat treating, passivation, plating, and other finishing services as well as machining, fabrication, and product assembly through a network of trusted partners.



We manufacture premier quality metals stampings for customers in many different industries, from automotive and aerospace to medical, transportation, and consumer products, to name a few. Some examples include electronic connectors, PCBs, filter components, furniture parts, medical diaphragms, hardware, and containers, among many others. We are customer-focused, reliable, and price competitive. To learn more about our stamping services or to make an inquiry, contact us directly.


ISO 9001:2015, IATF 16949:2016

Certifications1副本

The packages could be customized according to your requirements

Package

Customer Visit展会副本

Cangzhou Futong is a full-service sheet metal fabricator that uses lean manufacturing tools and focuses on continuous improvement to give you the best results. From traditional metal fabrication services to 3D laser welding and rapid prototyping,Cangzhou Futong is your one-stop-shop for sheet metal projects from conception to production.
