Pergola Bracket, Connector And Kit From China

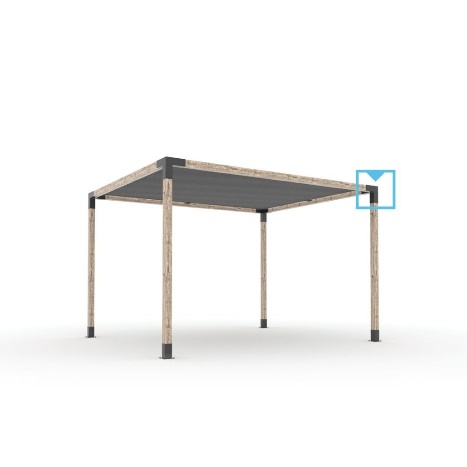

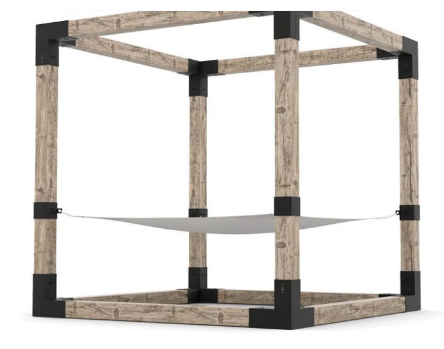

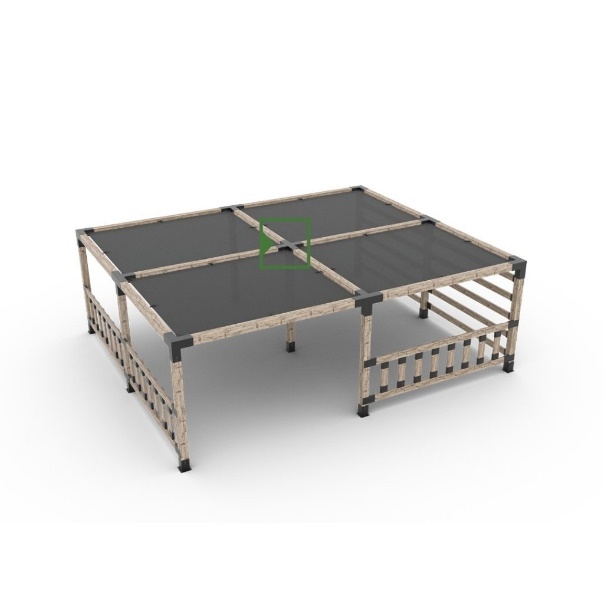

Transform your outdoor living space with our pergola kit just cut the wood with your desired length and you're good to go.

It's tough to find a pergola kit that's totally modular and has the ability to fit the size of any space. With the SUREALONG Pergola Kit, those days are over.

Availability:
Quantity:
  • 4”x4” / 6”x6”
  • cangzhoufutong
  • 8302490000

Pergola bracket, connector and kit

Transform your outdoor living space with our pergola kit just cut the wood with your desired length and you're good to go.

It's tough to find a pergola kit that's totally modular and has the ability to fit the size of any space. With the SUREALONG Pergola Kit, those days are over.

Item Name

Specification


Drawing

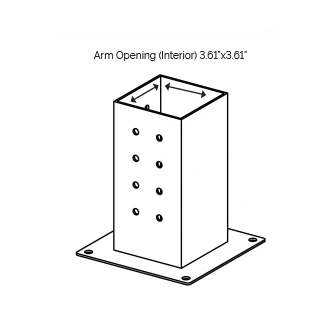

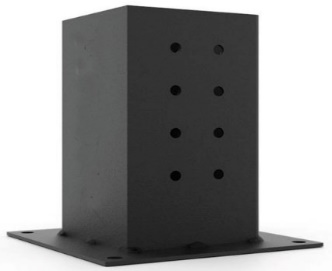

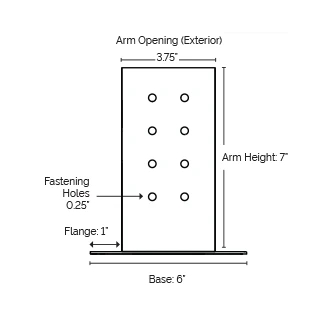

Pergola Post Base and Wall Mount Bracket


for 4x4 Wood Posts
Gauge: 14-gauge Steel

Overall Size (1 Pc.): LxWxH: 6”x6”x7”

Color: Black

Weight (1 Pc.): 5 lbs.

Fastening Holes: 0.25”

Flange: 1”

Securing Holes: 0.375”

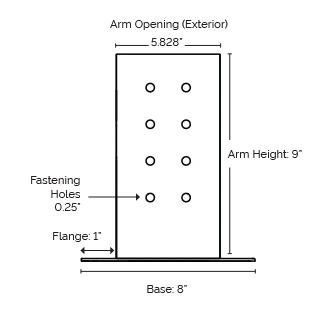

for 6”x6” Wood Posts

Gauge: 12-gauge Steel

Overall Size (1 Pc.): LxWxH: 8”x8”x9”

Color: Black

Weight (1 Pc.): 8 lbs.

Fastening Holes: 0.25”

Flange: 1”

Securing Holes: 0.5”

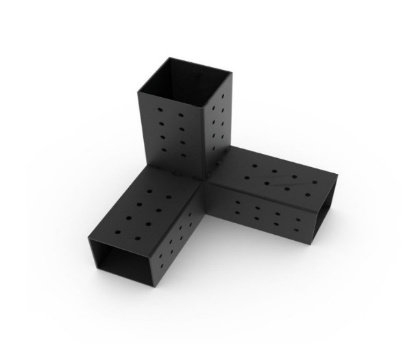

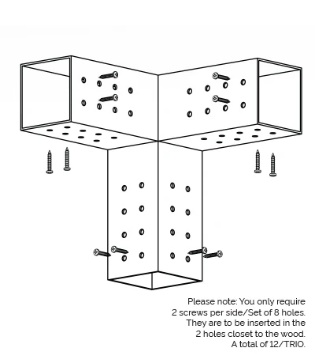

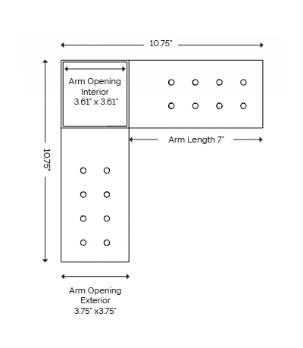

3 Arm Pergola Corner Bracket


for 4x4 Wood Posts
Gauge: 14-gauge Steel

Overall Size (1 Pc.):
LxWxH: 10.75 x 10.75 x 10.75”

Colour: Black Weight (1 Pc.): 8.5 lbs.

Fastening Holes: 0.25”

Securing Holes: 0.5

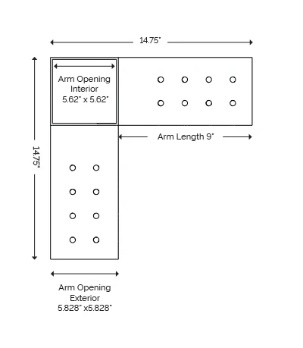

for 6”x6” Wood Posts

Gauge: 12-gauge Steel

Overall Size (1 Pc.):

LxWxH: 14.75” x 14.75” x 14.75”

Colour: Black Weight (1 Pc.): 25 lbs.

Fastening Holes: 0.25”

Securing Holes: 0.5”

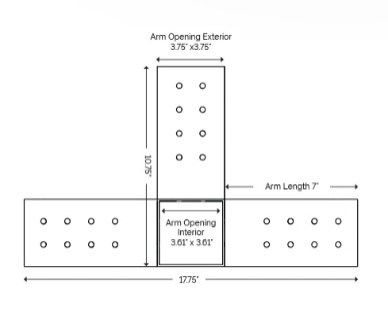

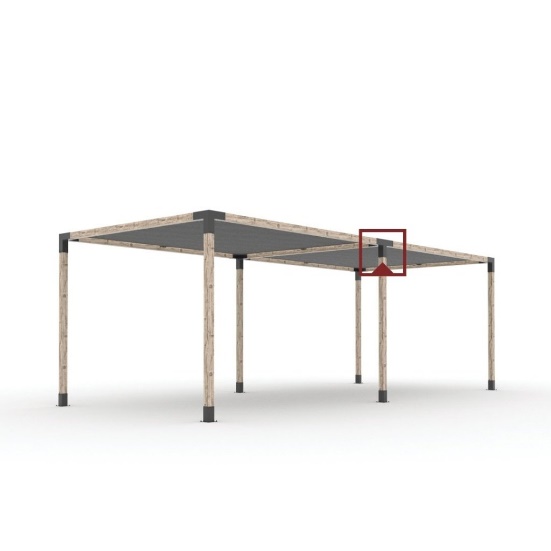

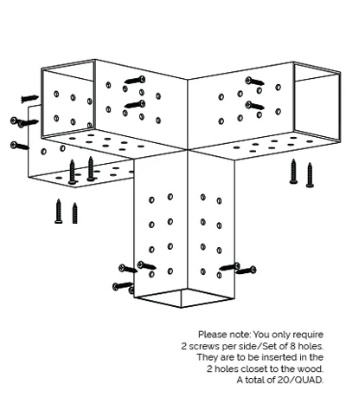

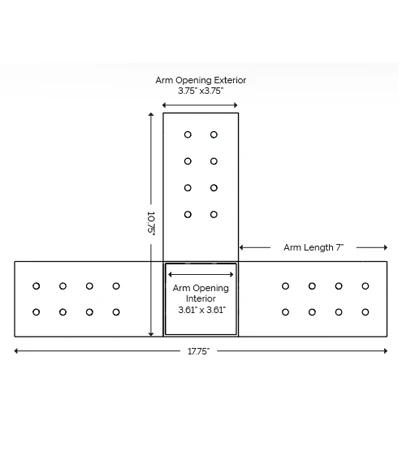

4 Arm Pergola Extension Brackets


for 4x4 Wood Posts
14-gauge Steel

Overall Size (1 Pc. QUAD): LxWxH: 17.75 x 10.75 x 10.75”

Colour: Black Weight (2 QUAD + 2 SOLO): 27 lbs.

Fastening Holes: 0.25”

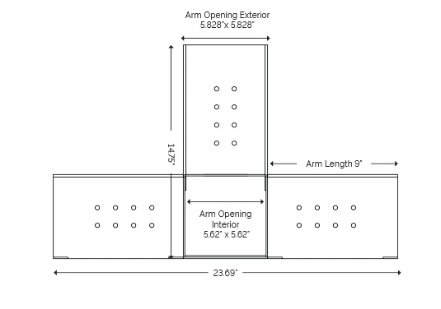

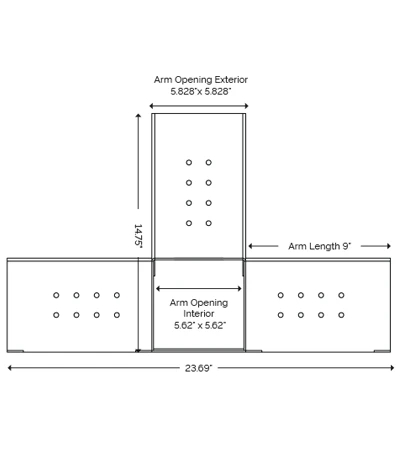

for 6”x6” Wood Posts

Gauge: 12-gauge Steel

Overall Size (1 Pc. QUAD): LxWxH: 23.69” x 14.75” x 14.75”

Colour: Black Weight (1 QUAD): 30 lbs.

Fastening Holes: 0.25”

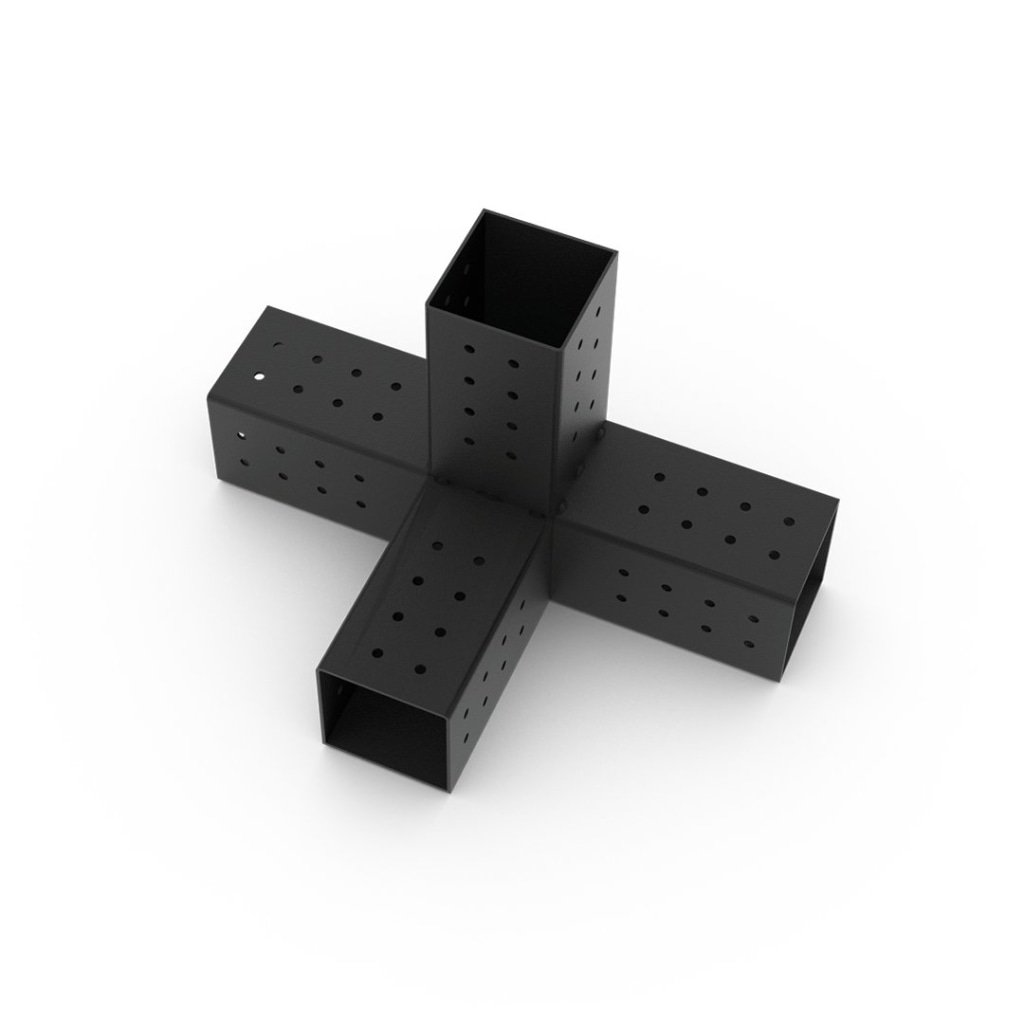

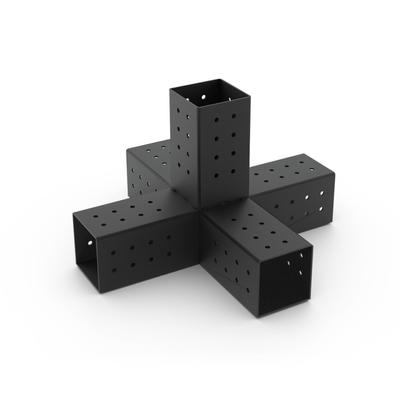

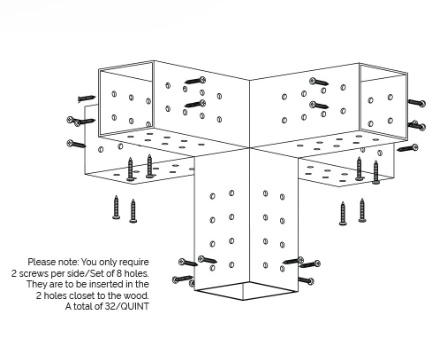

5 Arm Pergola Structure Extension Bracket for 4x4 Wood Posts


for 4x4 Wood Posts
14-gauge Steel

Overall Size (1 Pc. QUAD): LxWxH: 17.75 x 10.75 x 10.75”

Colour: Black Weight (2 QUAD + 2 SOLO): 27 lbs.

Fastening Holes: 0.25”

for 6”x6” Wood Posts

Gauge: 12-gauge Steel

Overall Size (1 Pc. QUAD): LxWxH: 23.69” x 14.75” x 14.75”

Colour: Black Weight (1 QUAD): 30 lbs.

Fastening Holes: 0.25”


Item Name

Specification


Usage

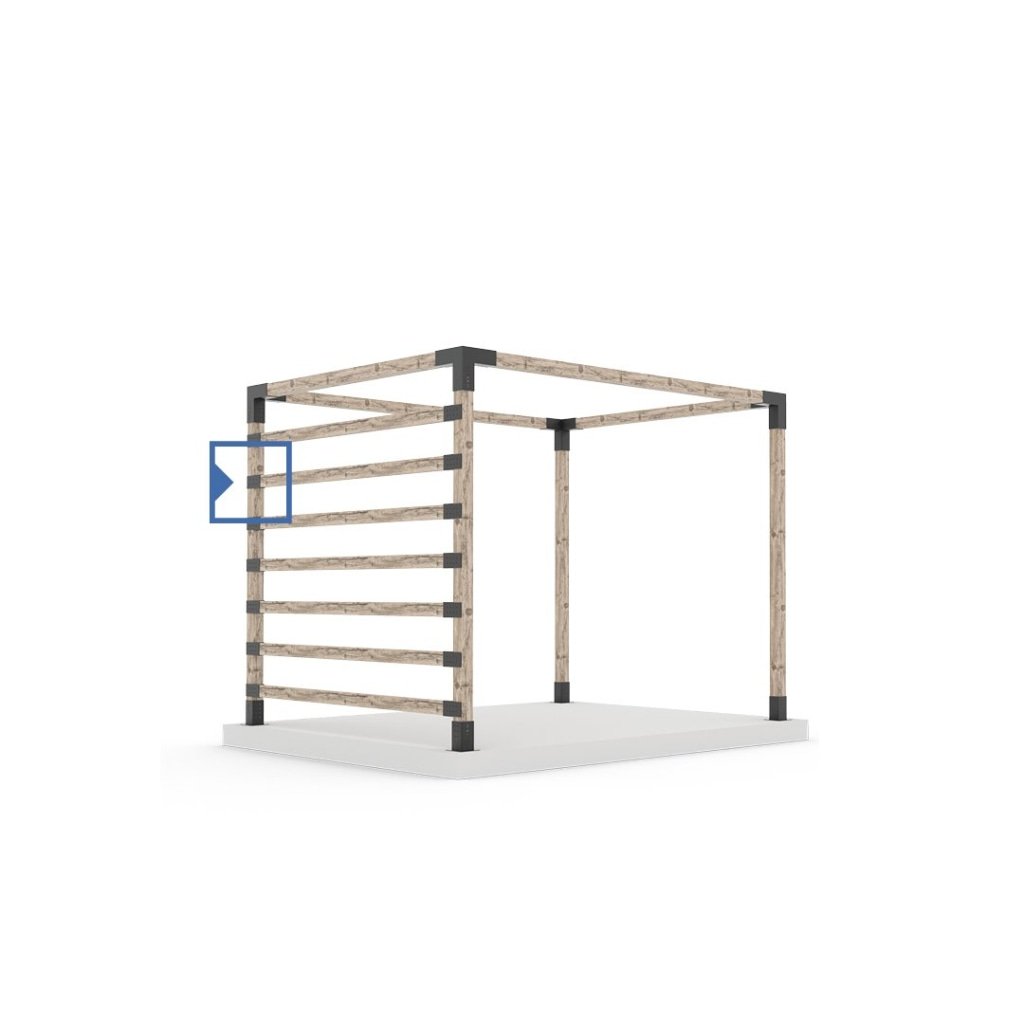

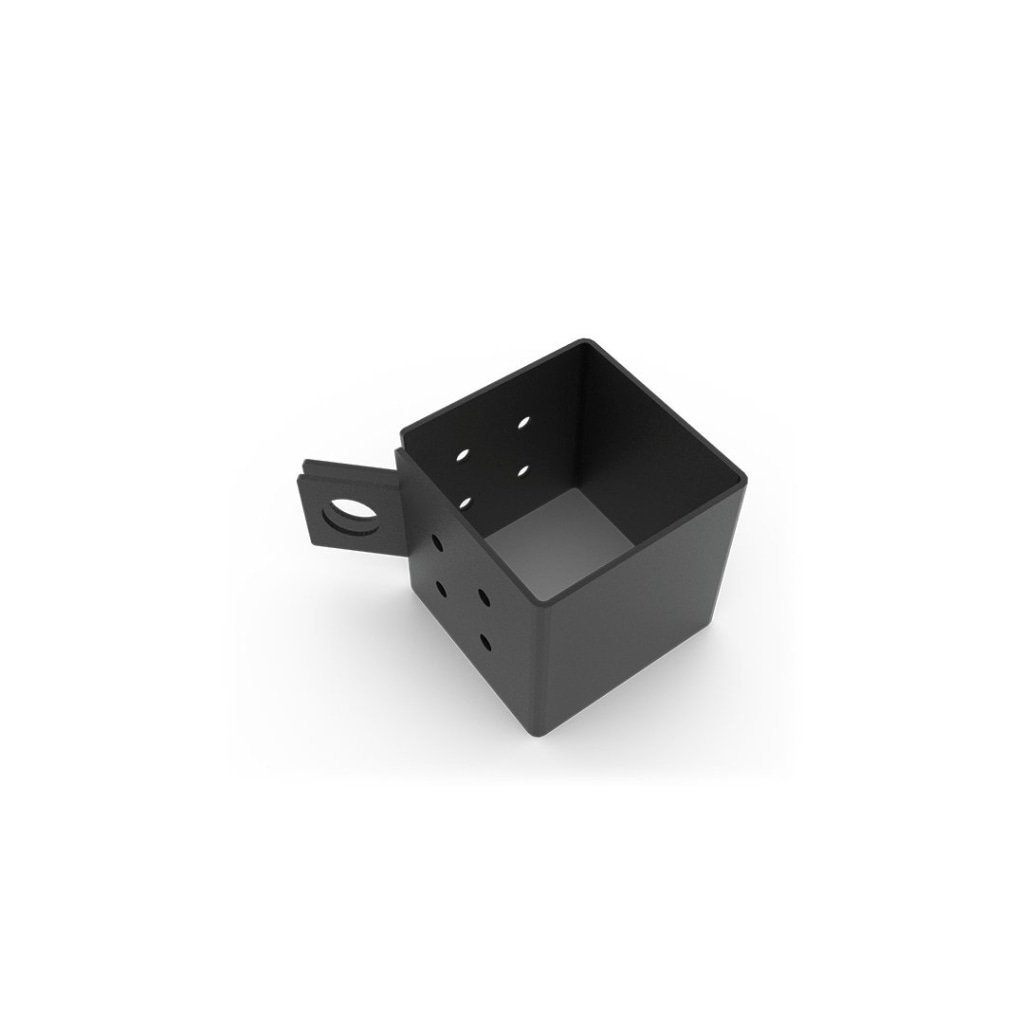

Pergola Post Wall and Railing Bracket for 4x4 Wood Posts


for 4x4 Wood Posts
Arm Opening (Interior): 3.61” x 3.61”

Arm Opening (Exterior): 3.75” x 3.75”

Arm Length: 4” Gauge: 12-gauge Steel



for 6”x6” Wood Posts

Arm Opening (Interior): 5.62” x 5.62”

Arm Opening (Exterior): 5.828” x 5.828”

Arm Height: 6” Gauge: 12-gauge Steel

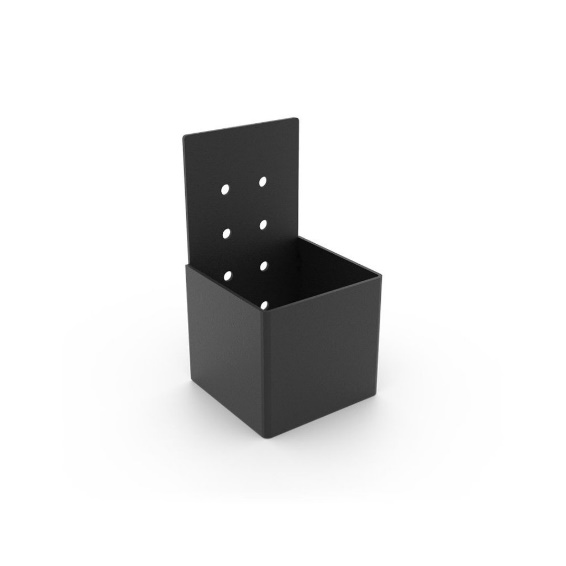

Hanger


for 4x4 Wood Posts
Arm Opening (Interior): 3.61” x 3.61”

Arm Opening (Exterior): 3.75” x 3.75”

Gauge: 12-gauge Steel



for 6”x6” Wood Posts

Arm Opening (Interior): 5.62” x 5.62”

Arm Opening (Exterior): 5.828” x 5.828”

Gauge: 12-gauge Steel

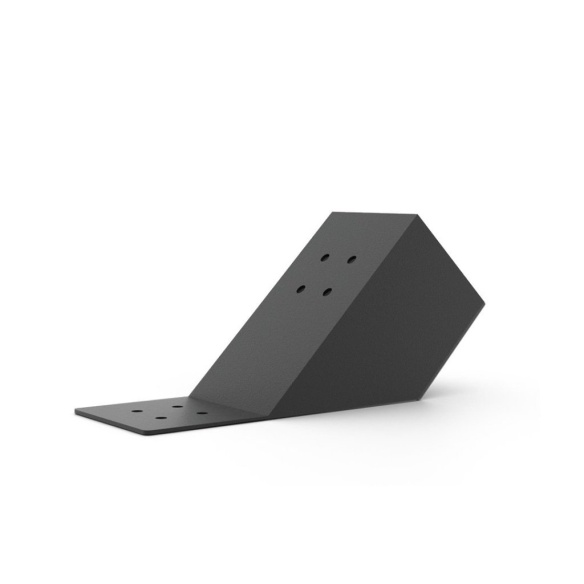

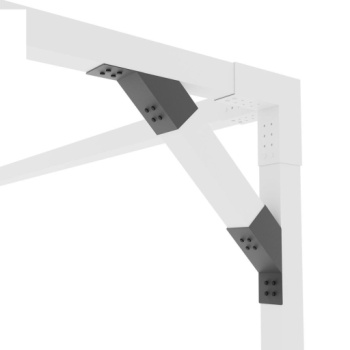

45 Degree Knee Bracket

for 4x4 Wood Posts
Arm Opening (Interior): 3.61” x 3.61”

Arm Opening (Exterior): 3.75” x 3.75”

Gauge: 12-gauge Steel




for 6”x6” Wood Posts

Arm Opening (Interior): 5.62” x 5.62”

Arm Opening (Exterior): 5.828” x 5.828”

Gauge: 12-gauge Steel

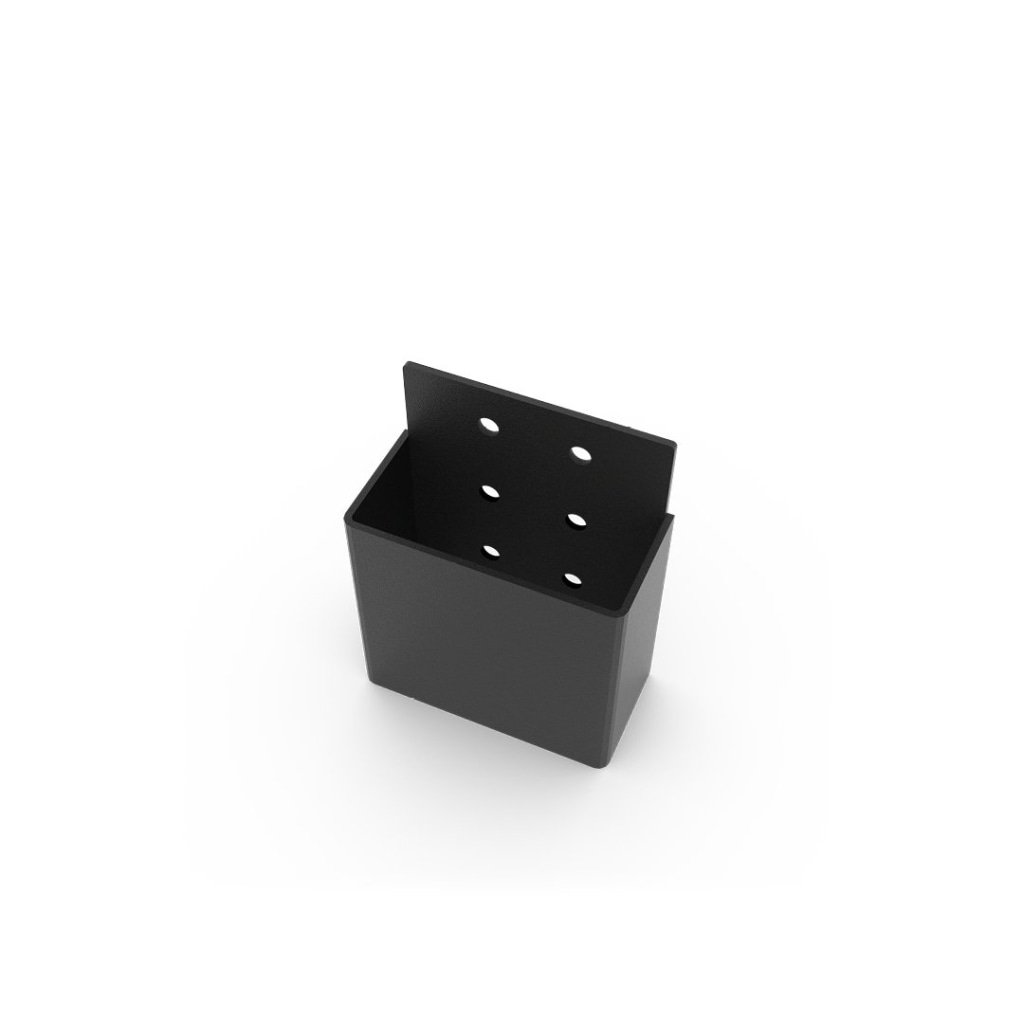

Pergola Top Rafter Bracket



for 2”x4 Wood Posts
Arm Opening (Interior): 1.61” x 3.61”

Arm Opening (Exterior):1.75” x 3.75”

Gauge: 12-gauge Steel





for 2”x6” Wood Posts

Arm Opening (Interior): 1.61” x 5.62”

Arm Opening (Exterior): 2.75” x 5.828”

Gauge: 12-gauge Steel

for 2”x8” Wood Posts

Arm Opening (Interior): 1.61” x 7.36

Arm Opening (Exterior): 2.75” x 7.5

Gauge: 12-gauge Steel

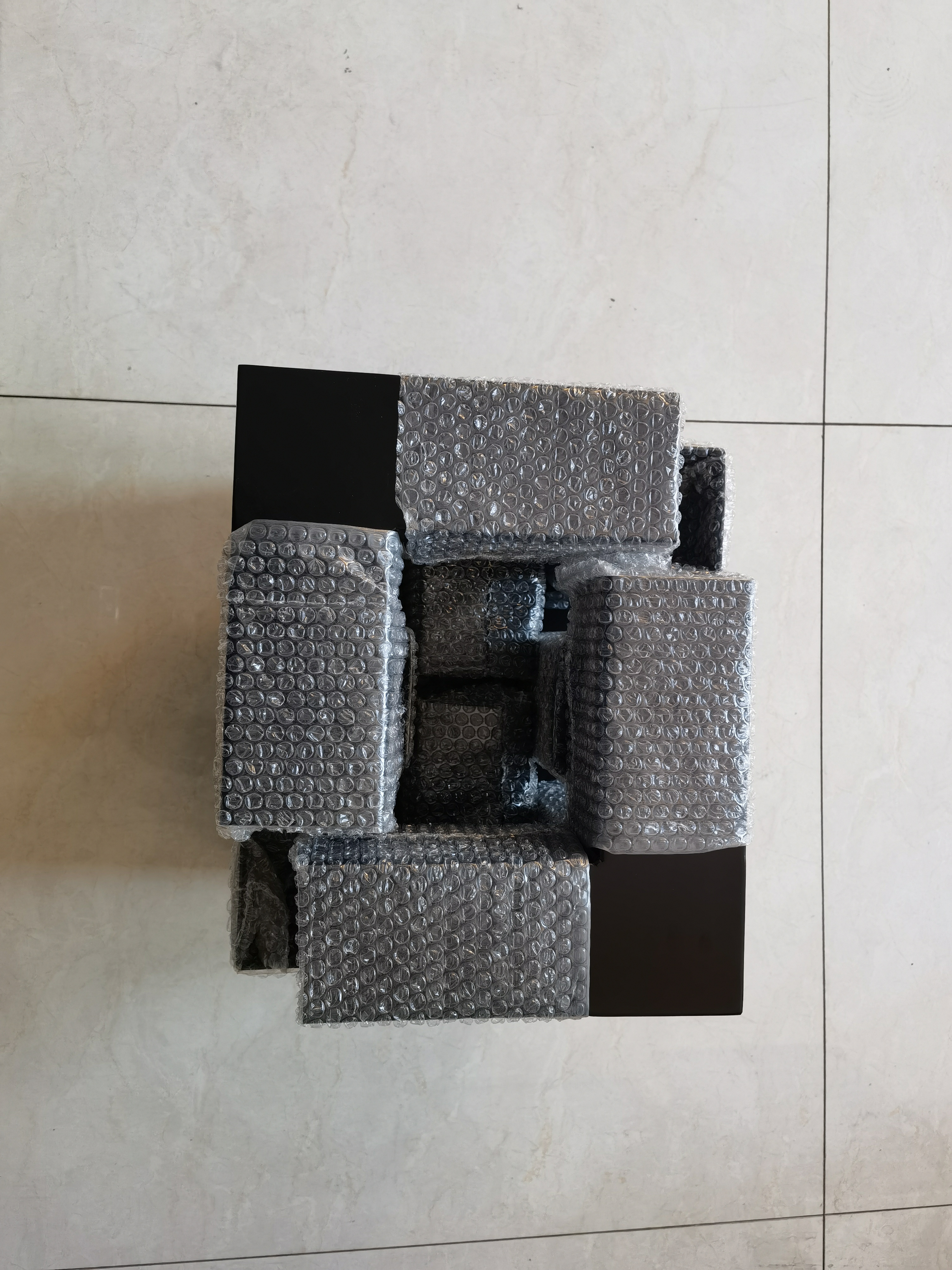

package (2)
package

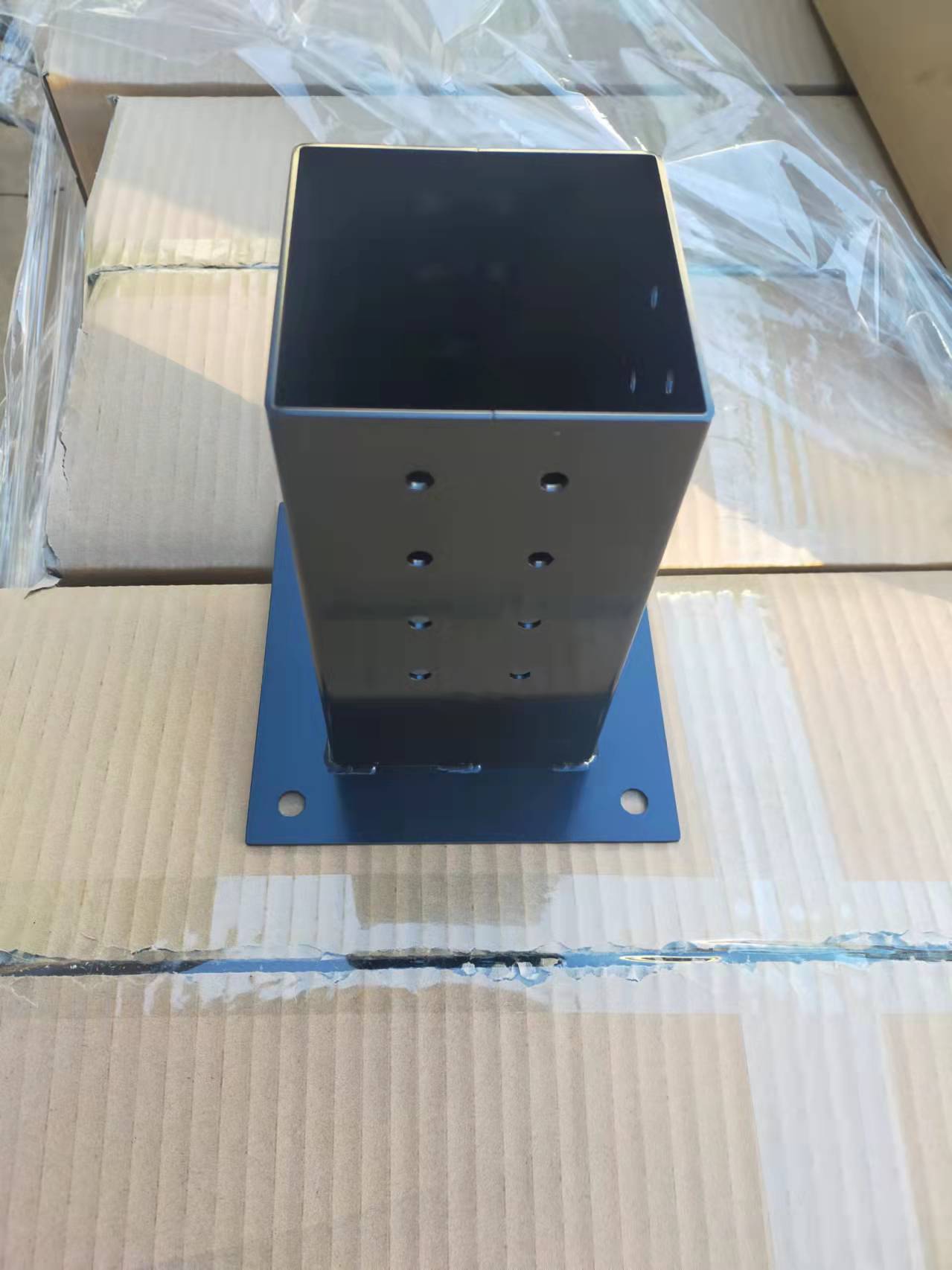

1 (2)
