Pergola bracket, connector and kit

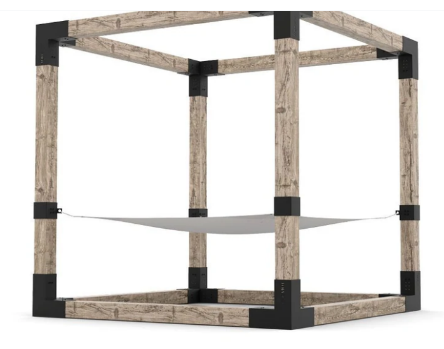

Transform your outdoor living space with our pergola kit just cut the wood with your desired length and you're good to go.
It's tough to find a pergola kit that's totally modular and has the ability to fit the size of any space. With the Cangzhoufutong Pergola Kit, those days are over.
Item Name | Specification | Picture | Drawing | |

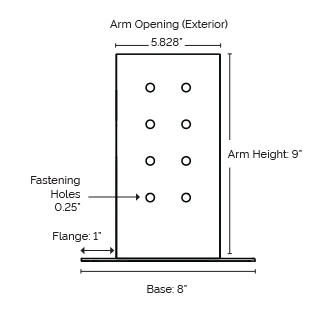

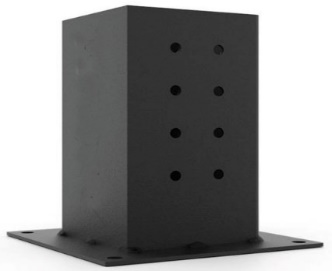

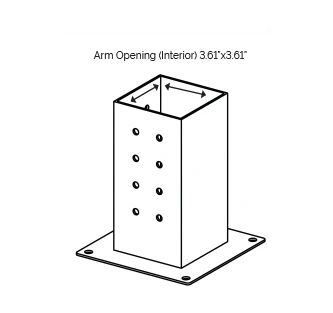

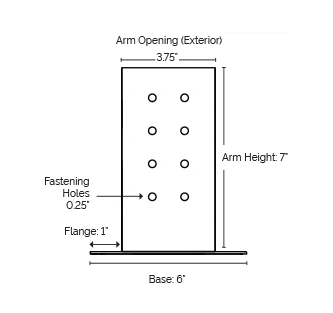

Pergola Post Base and Wall Mount Bracket | for 4”x4” Wood Posts Overall Size (1 Pc.): LxWxH: 6”x6”x7” Color: Black Weight (1 Pc.): 5 lbs. Fastening Holes: 0.25” Flange: 1” Securing Holes: 0.375” |
|
|
|

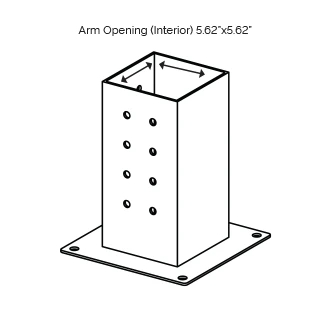

for 6”x6” Wood Posts Gauge: 12-gauge Steel Overall Size (1 Pc.): LxWxH: 8”x8”x9” Color: Black Weight (1 Pc.): 8 lbs. Fastening Holes: 0.25” Flange: 1” Securing Holes: 0.5” |
|
|
| |

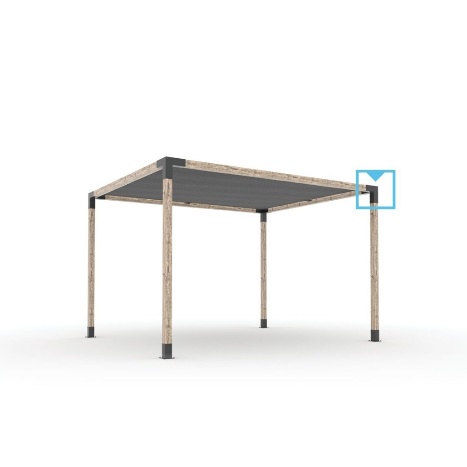

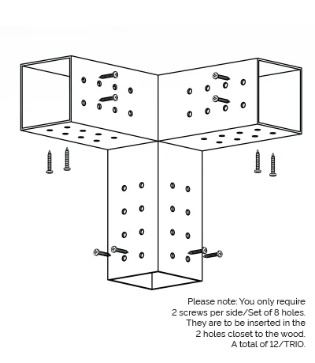

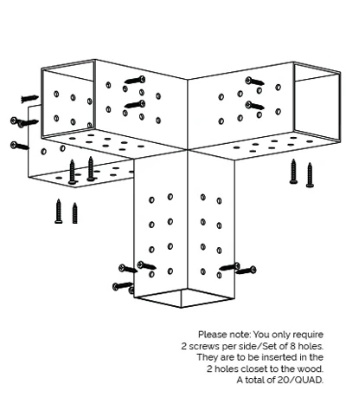

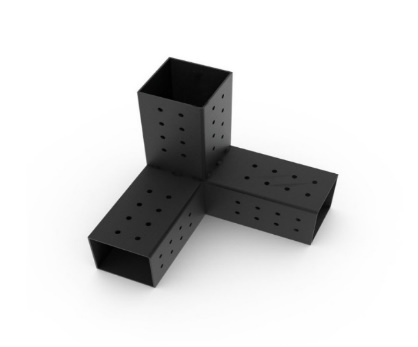

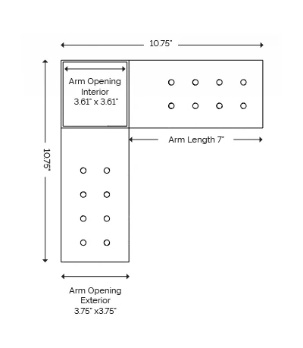

3 Arm Pergola Corner Bracket | for 4”x4” Wood Posts Overall Size (1 Pc.): Colour: Black Weight (1 Pc.): 8.5 lbs. Fastening Holes: 0.25” Securing Holes: 0.5 |
|
|
|
for 6”x6” Wood Posts Gauge: 12-gauge Steel Overall Size (1 Pc.): LxWxH: 14.75” x 14.75” x 14.75” Colour: Black Weight (1 Pc.): 25 lbs. Fastening Holes: 0.25” Securing Holes: 0.5” |
|
|
| |

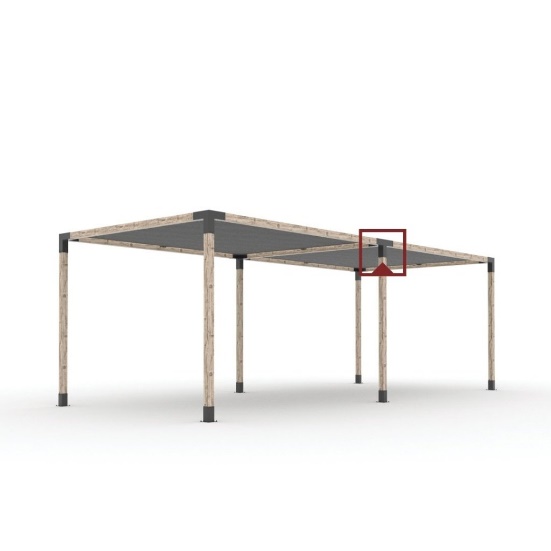

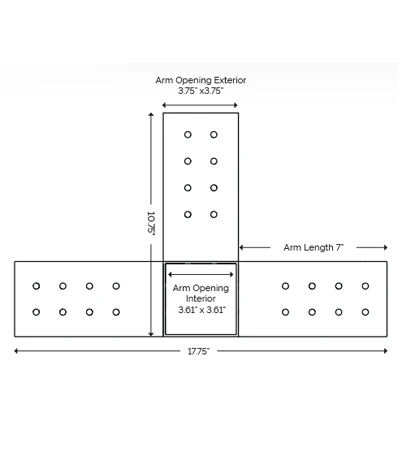

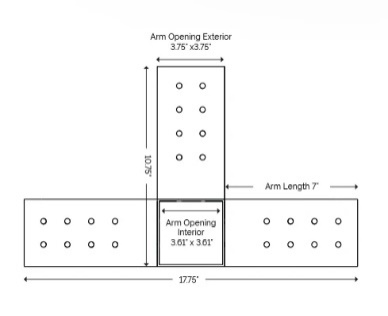

4 Arm Pergola Extension Brackets | for 4”x4” Wood Posts Overall Size (1 Pc. QUAD): LxWxH: 17.75 x 10.75 x 10.75” Colour: Black Weight (2 QUAD + 2 SOLO): 27 lbs. Fastening Holes: 0.25” |
|
|
|

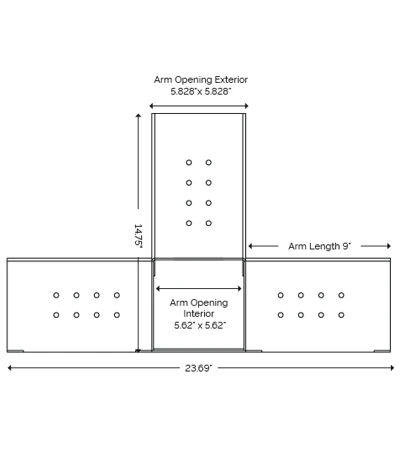

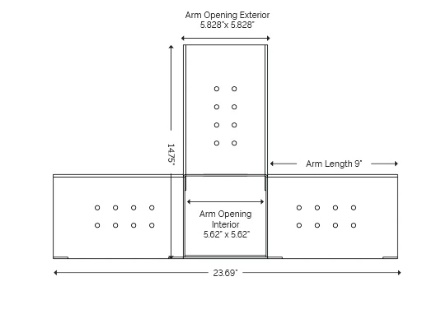

for 6”x6” Wood Posts Gauge: 12-gauge Steel Overall Size (1 Pc. QUAD): LxWxH: 23.69” x 14.75” x 14.75” Colour: Black Weight (1 QUAD): 30 lbs. Fastening Holes: 0.25” |
|
|
| |

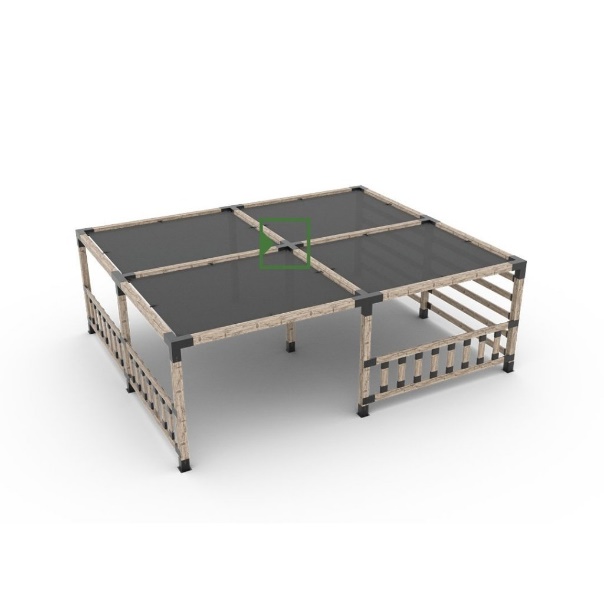

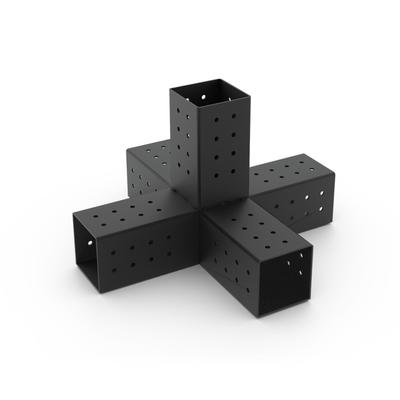

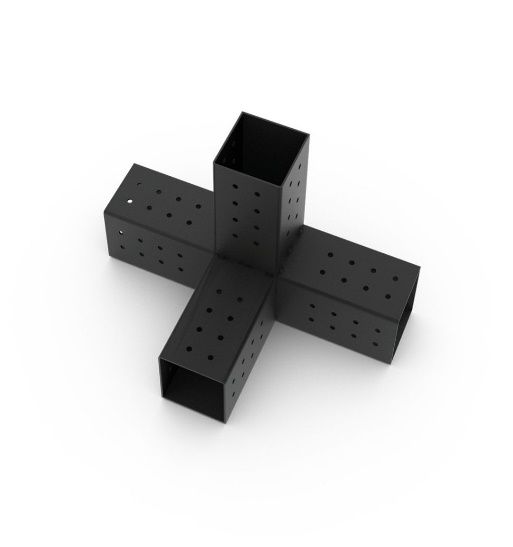

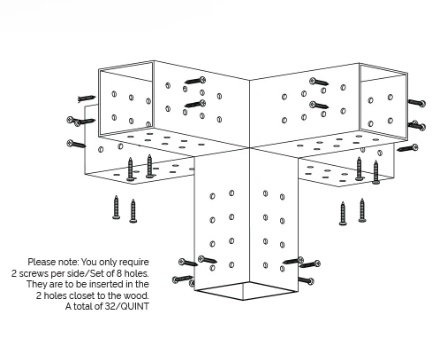

5 Arm Pergola Structure Extension Bracket for 4x4 Wood Posts | for 4”x4” Wood Posts Overall Size (1 Pc. QUAD): LxWxH: 17.75 x 10.75 x 10.75” Colour: Black Weight (2 QUAD + 2 SOLO): 27 lbs. Fastening Holes: 0.25” |
|
|
|
for 6”x6” Wood Posts Gauge: 12-gauge Steel Overall Size (1 Pc. QUAD): LxWxH: 23.69” x 14.75” x 14.75” Colour: Black Weight (1 QUAD): 30 lbs. Fastening Holes: 0.25” |
|
|
| |
Item Name | Specification | Picture | Usage |

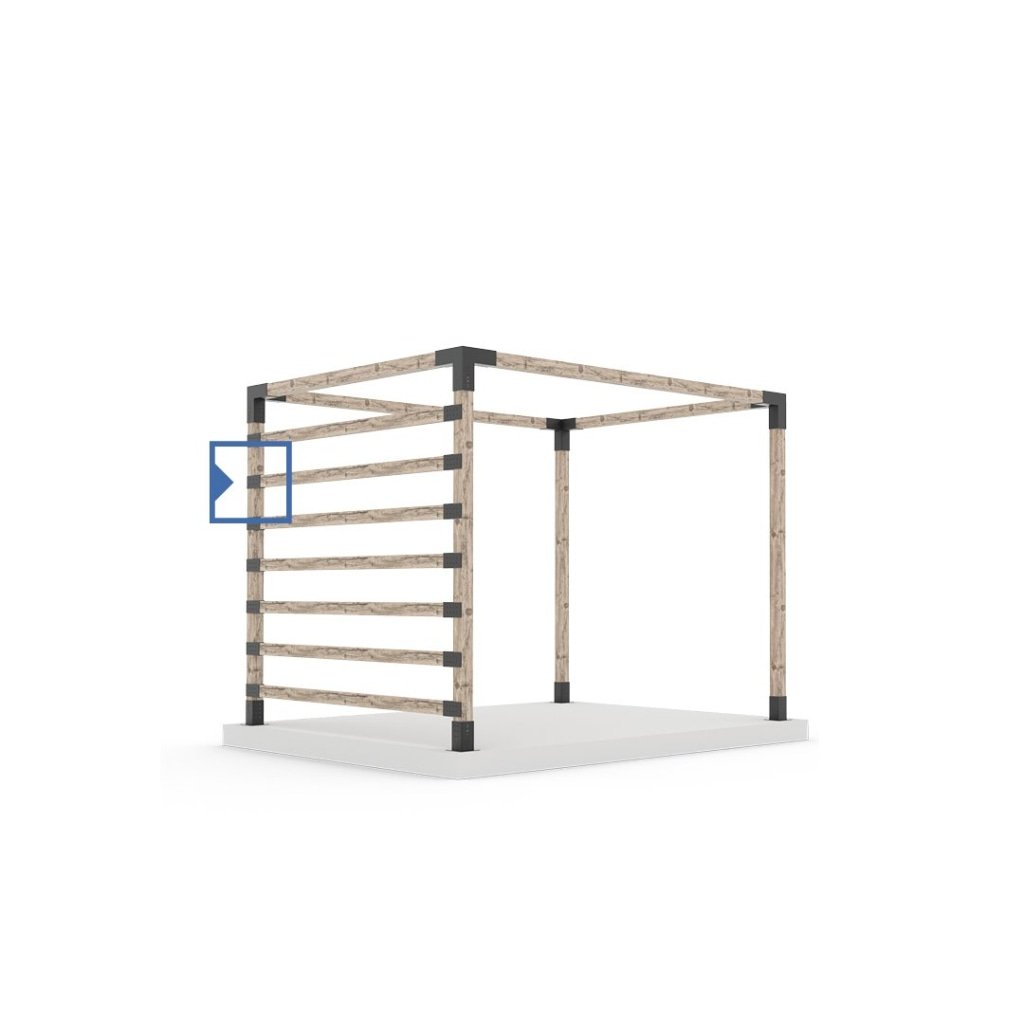

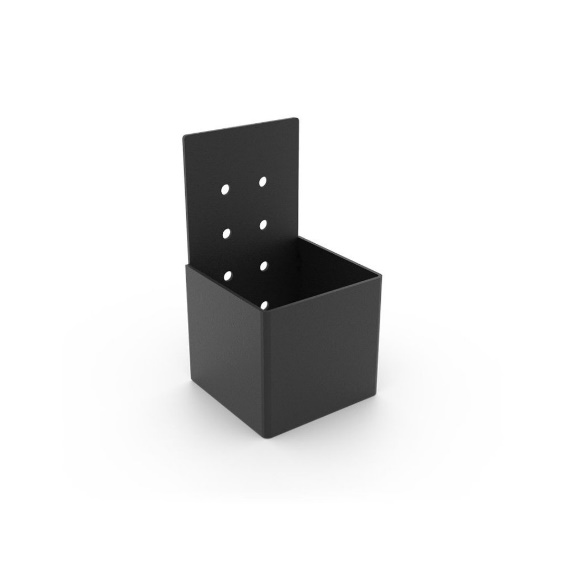

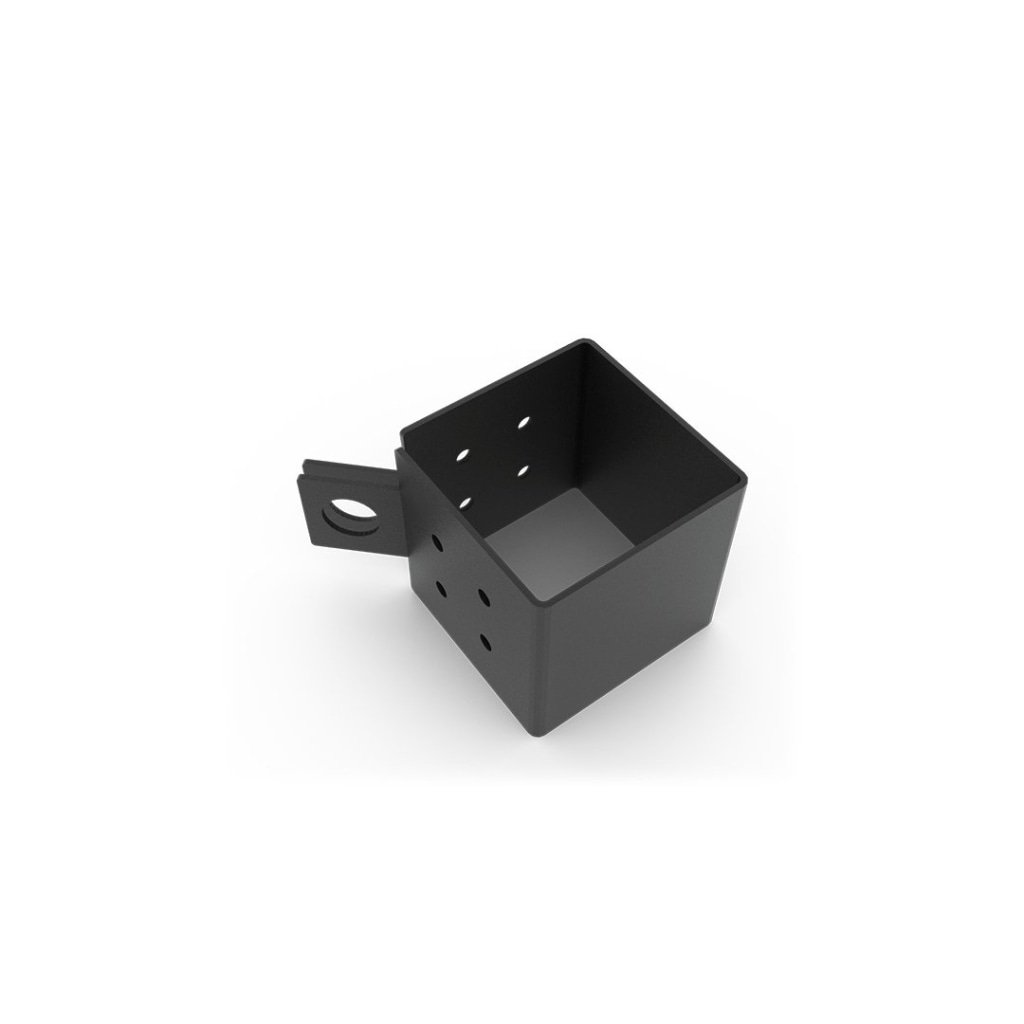

Pergola Post Wall and Railing Bracket for 4x4 Wood Posts | for 4”x4” Wood Posts Arm Opening (Exterior): 3.75” x 3.75” Arm Length: 4” Gauge: 12-gauge Steel |
|
|

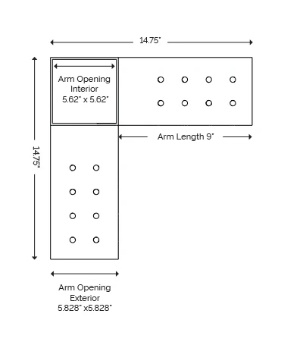

for 6”x6” Wood Posts Arm Opening (Interior): 5.62” x 5.62” Arm Opening (Exterior): 5.828” x 5.828” Arm Height: 6” Gauge: 12-gauge Steel | |||
Hanger | for 4”x4” Wood Posts Arm Opening (Exterior): 3.75” x 3.75” Gauge: 12-gauge Steel |
|
|
for 6”x6” Wood Posts Arm Opening (Interior): 5.62” x 5.62” Arm Opening (Exterior): 5.828” x 5.828” Gauge: 12-gauge Steel | |||

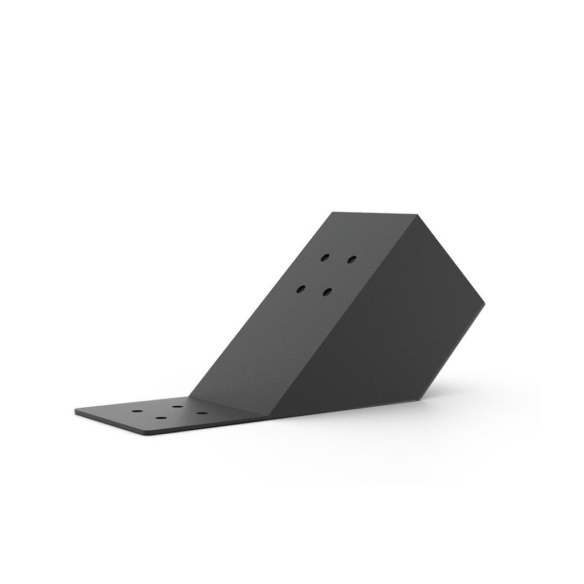

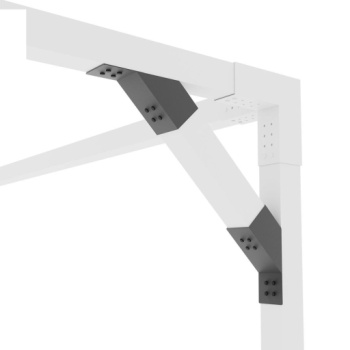

45 Degree Knee Bracket | for 4”x4” Wood Posts Arm Opening (Exterior): 3.75” x 3.75” Gauge: 12-gauge Steel |
|
|
for 6”x6” Wood Posts Arm Opening (Interior): 5.62” x 5.62” Arm Opening (Exterior): 5.828” x 5.828” Gauge: 12-gauge Steel | |||
Pergola Top Rafter Bracket | for 2”x4” Wood Posts Arm Opening (Exterior):1.75” x 3.75” Gauge: 12-gauge Steel |
|
|
for 2”x6” Wood Posts Arm Opening (Interior): 1.61” x 5.62” Arm Opening (Exterior): 2.75” x 5.828” Gauge: 12-gauge Steel | |||
for 2”x8” Wood Posts Arm Opening (Interior): 1.61” x 7.36” Arm Opening (Exterior): 2.75” x 7.5” Gauge: 12-gauge Steel |
