Timber Connectors from China factory

Views: 3     Author: Site Editor     Publish Time: 2022-02-15      Origin: Site

Timber Connectors from China factory

Timber Connectors

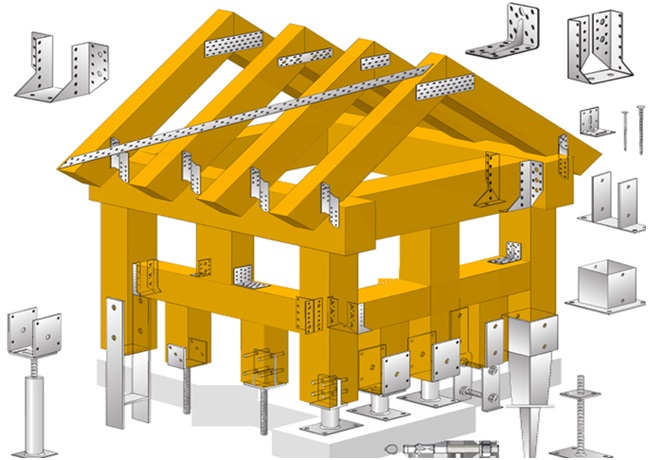

We can make timber connectors for Prefabricated wood truss and buildings.

Our main products include gang nail plates,knuckle nailplates,strip brace,joist hanger,and other timber connectors.

The products and packages could be customized according to your requirements.


Products Name

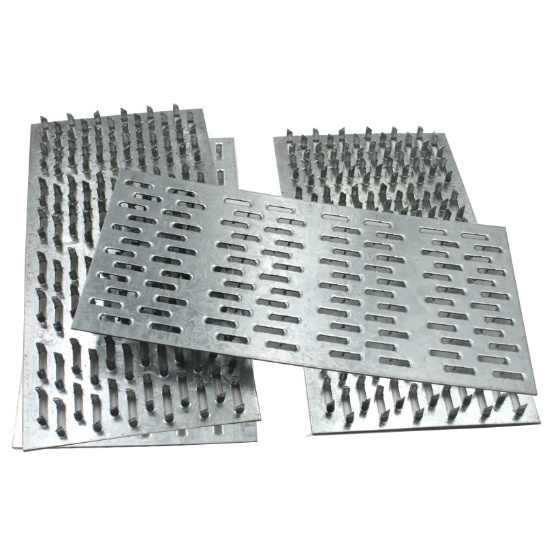

Gang Nail Plates

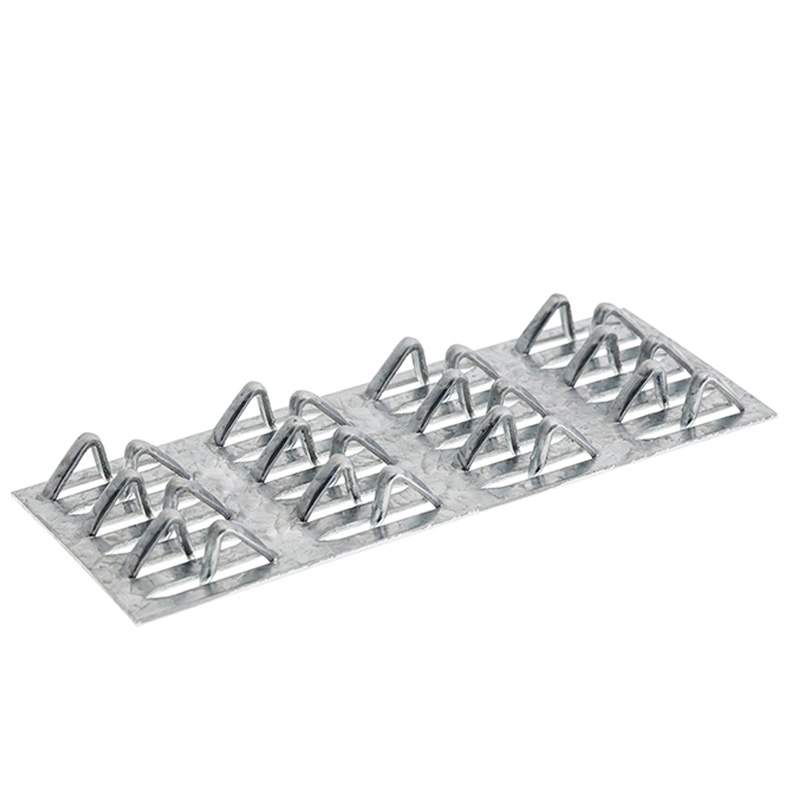

Knuckle Nailplates / Tylok Plate

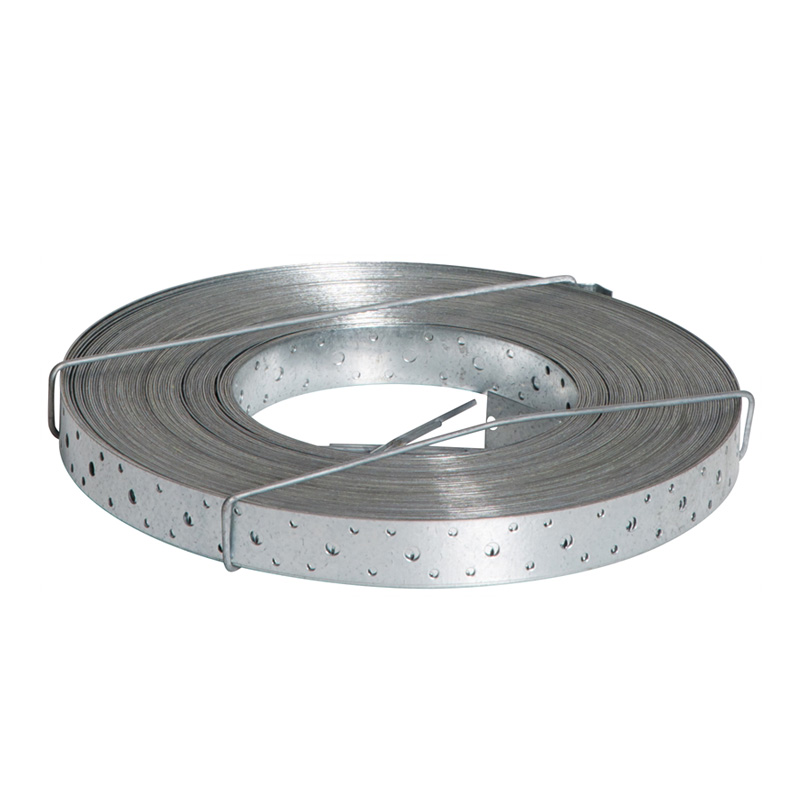

Strip Brace / Hoop Iron & Strapping


Description


1.0mm G300 Z275 Galvanised Steel
Teeth length:8mm (could be customized)

1.0mm G300 Z275 Galvanised Steel

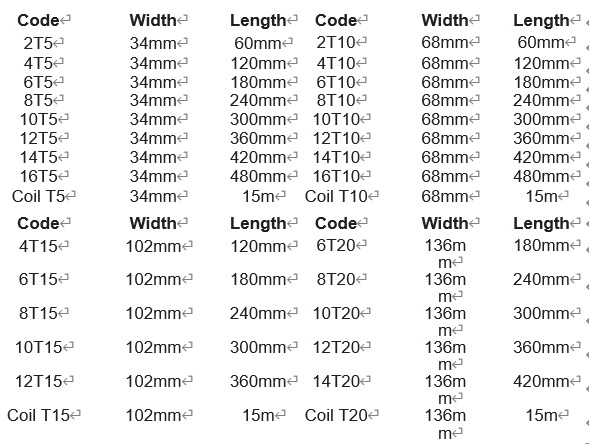

Plate code example - 6T10 = 6 rows of teeth long x 10 teeth wide.

G300 Z275 Galvanised Steel

Material thick

Width

Length





Specification











Code

Width

Length











1.0mm

30mm

30m

SA50100

50mm

100mm

0.8mm

30mm

30m

SA100100

100mm

100mm

0.6mm

30mm

30m

SA150100

150mm

100mm

1.0mm

25mm

30m

SA200100

200mm

100mm

0.8mm

25mm

30m

Coil 100mm

100mm

15m

0.6mm

25mm

30m

Coil 150mm





150mm





15m





1.0mm

20mm

30m

0.8mm

20mm

30m

0.6mm

20mm

30m

1.0mm

50mm

30m

0.8mm

50mm

30m



Products

Name

Foil Fix FASTENERS

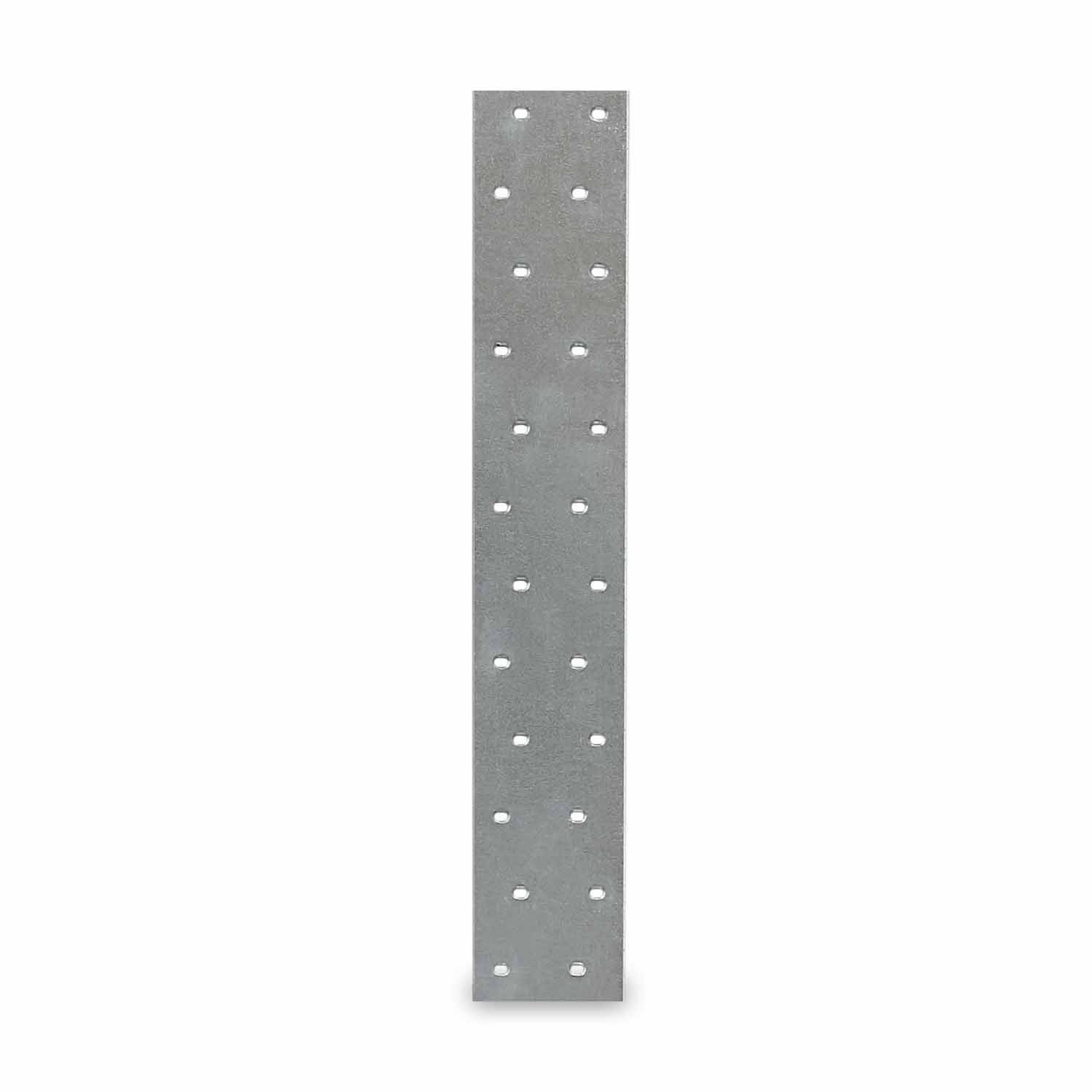

Sheet Brace Straps

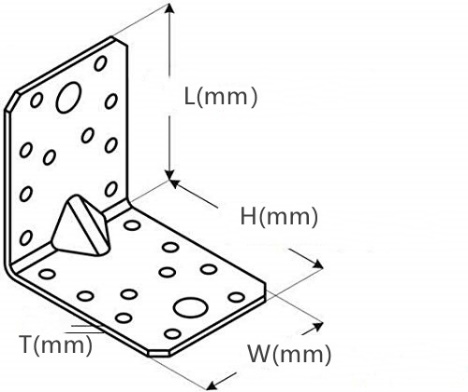

Corner Bracket

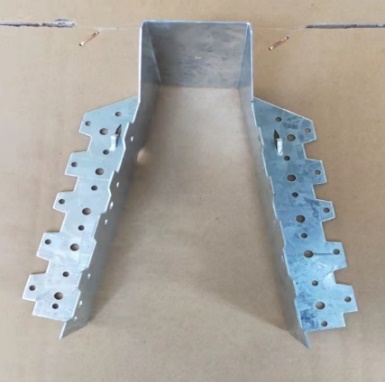

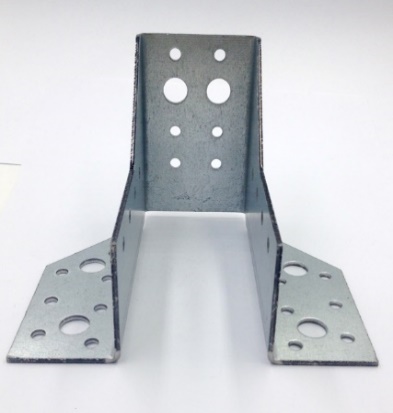

Joist hanger

Joist hanger


Description

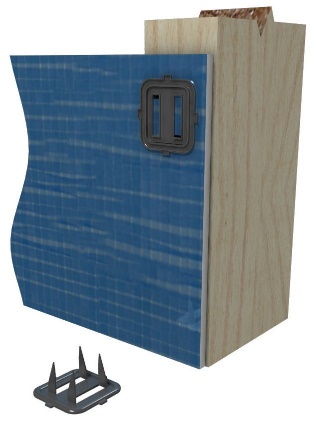

Foil Fix is an ideal connector for fixing building foils to timber framing. It is supplied in easy span-off sticks of 10 for fast, convenient and safe use on-site. Foil fix can be used to fix foil insulation to both wall and roof frames.
0.8mm G300 Z275 Galvanised Steel

1.0mm x 25mm G300 Z275 Galvanised Steel


To provide a hold down for use with sheet bracing

G300 Z275 Galvanised Steel

1.2mm G300 Z275 Galvanised Steel


2.0mm G300 Z275 Galvanised Steel


Specification

21mm*21mm

28mm*30mm

200mm

300mm

400mm

600mm

70x70x55x2

90x90x55x2

90x90x65x2

140x140x65x2

105x105x90x2

150x150x90x2.5

45x90mm

45x140mm

45x180mm

45x190mm


45x105mm



Products

Name

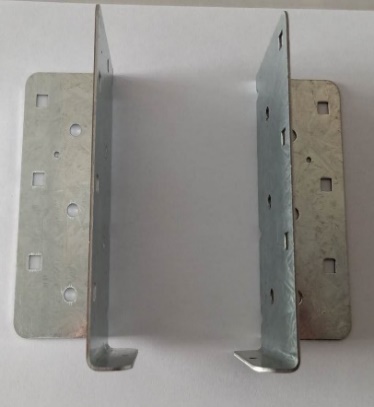

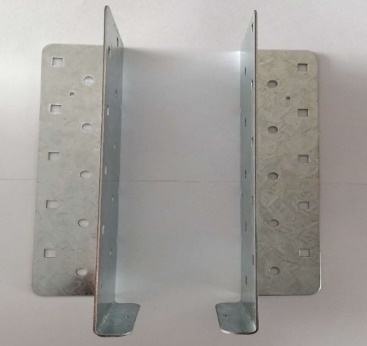

140 Split Hanger LH&RH

220 Split Hanger LH&RH

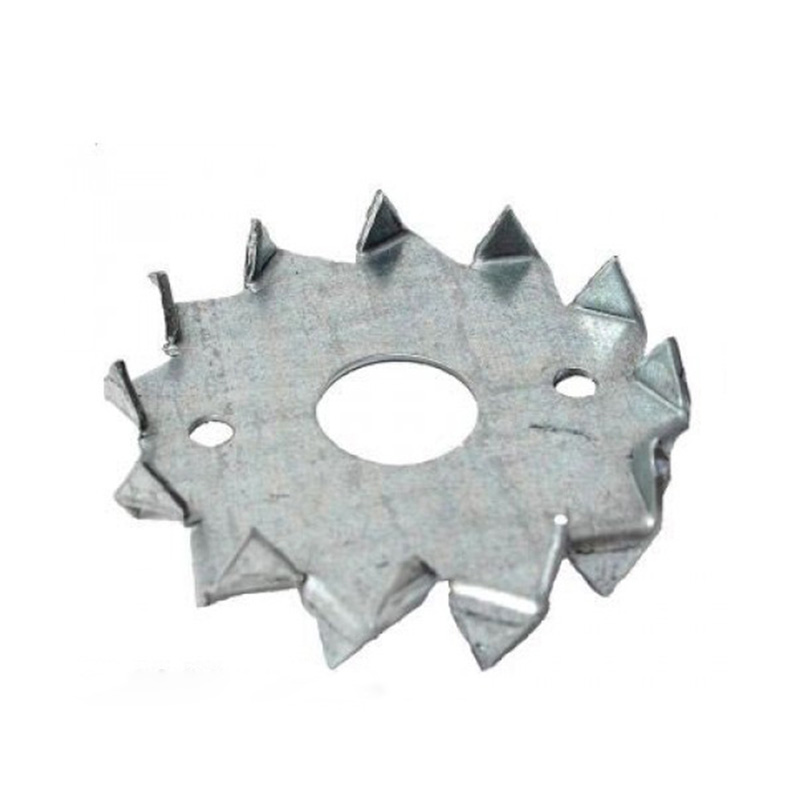

Toothed Plate Timber Connector

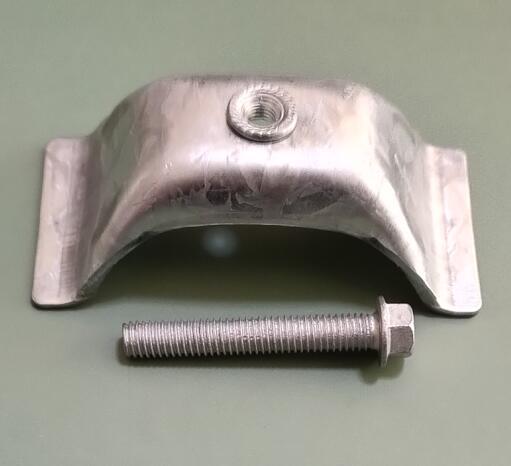

Wall Brace Tensioner

MULTIGRIP


Description

1.5mm G300 Z275 Galvanised Steel

Designed to provide a strong 90 degree connection for larger timber widths and/or double joist/trusses to supporting members. Always used as pairs

1.5mm G300 Z275 Galvanised Steel

Designed to provide a strong 90 degree connection for larger timber widths and/or double joist/trusses to supporting members. Always used as pairs

Single sided and double sided connector plates for enhanced bolt performance in timber. Conforms to BS EN 912: 1999 Annex C. Specification for toothed plate connectors.

Material: 2mm steel

Surface: zinc plating


1.0mm G300 Z275 Galvanised Steel

Multigrips are a multipurpose product that can be bent into any of five combinations. One product provides for all alternatives with the bending slot enabling easy on-site bending.

Specification

depths of 140mm

depths of 220mm

double- sided

single- sided

50mm 62mm 75mm

95mm 117mm 140mm

165mm

For 25mm strip

For 30mm strip


Size 125mm high x 38mm flanges
