metal web joist

Cangzhoufutong Metal Web Joists System Advantage

OPEN WEB DESIGN
This allows for easier more practical installation of services including waste water pipes, electrical cabling, heating pipes and other services. Also, no hole locating or drilling,limits any possibility of incorrect workmanship and reduces labour costs.
LIGHT WEIGHT
The combination of smaller timber sections with the light weight metal web means the finished product is lighter than it’s timber equivalents.
HANDLING AND INSTALLATION
The large bearing surface allows for speedy setting out of joists,improves joist stability when laying out joists and enables easier fixing of decking materials.
LONG-TERM STABILITY
The reduced sections used in the manufacture of the metal web means less shrinkage is experienced meaning a quieter and longer lasting floor system.
IMPROVED SOUND AND VIBRATION
The metal web floor system allows for the installation of a rigid Strongback that reduces vibration and improves the overall performance of the floor.

metal web joist

Products name	posi joist hangers
Key words	timber posi joists,posi joist floor
Material	1.2mm galvanized steel DX51D-Z275 grade

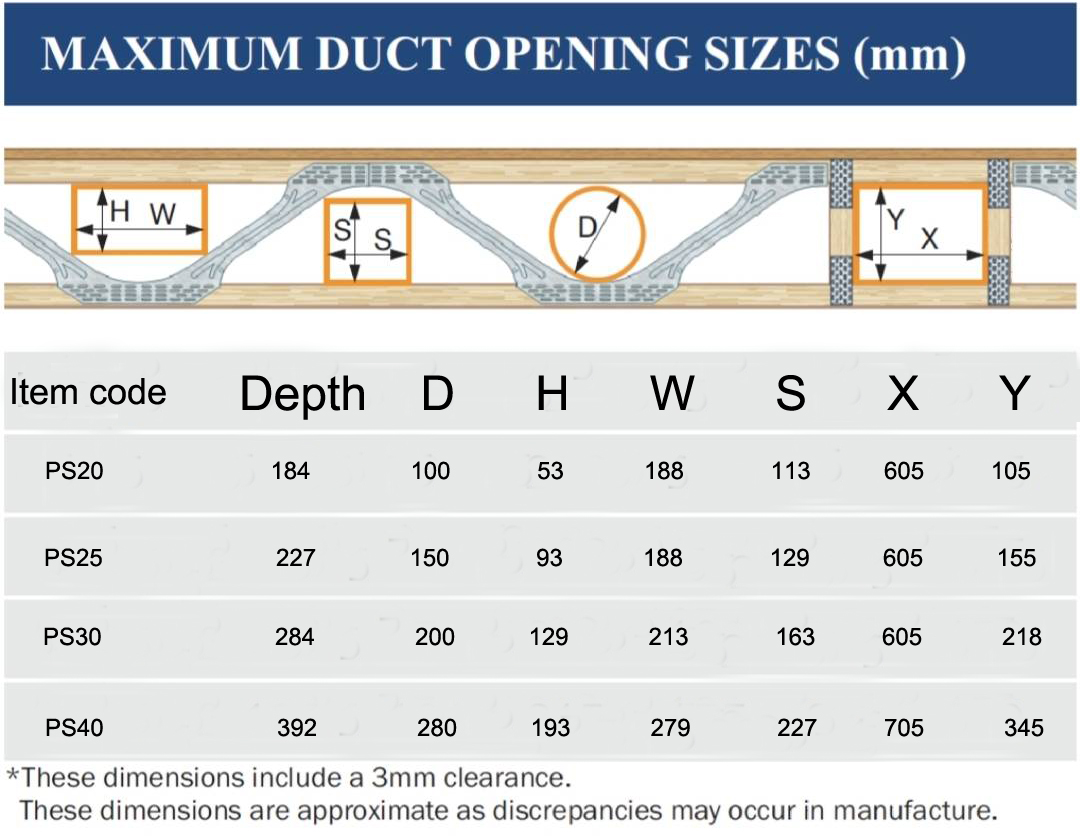

metal web joist sizes

Web Size	Web Depth	Weight per pair	Truss Weight (90x45 chords)	No. of teeth (ends or crotch)
PS20	184mm	0.32 kg	4.85 kg/m	14/28
PS25	227mm	0.34 kg	5.02 kg/m	18/36
PS30	284mm	0.39 kg	5.28 kg/m	20/40
PS40	392mm	0.53 kg	5.72 kg/m	20/40
