Galvanised Steel Gang Nail Connector Plates for Roof Trusses
Home » Products » Timber Building Hardware » Gang nail plates » Galvanised Steel Gang Nail Connector Plates for Roof Trusses
Share to:

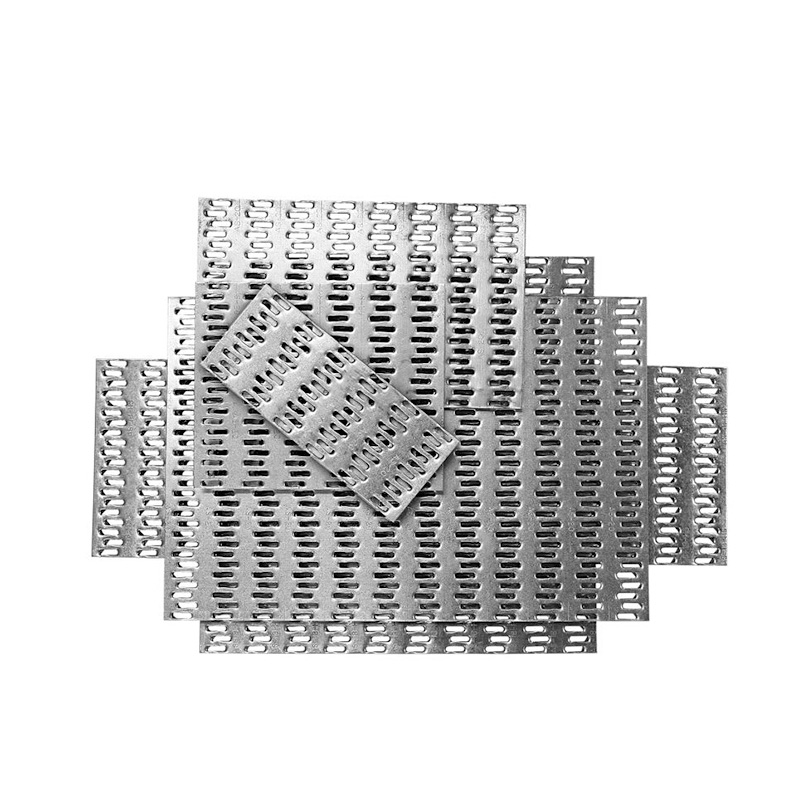

Galvanised Steel Gang Nail Connector Plates for Roof Trusses

A galvanised steel gang nail connector, or gang plate truss, is a kind of tie. roof truss gang nail plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel to create teeth on one side. The teeth are embedded in and hold the wooden frame components to the plate and each other.

roof truss gang nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using tools such as a hydraulic press or a roller. As the plate is pressed in, the teeth are all driven into the wood fibers simultaneously, and the compression between adjacent teeth reduces the tendency of the wood to split.

The roof truss gang nail plates are manufactured from ASTM A653/A653M, A591, A792/A792M, or A167 structural quality steel and is protected with zinc or zinc-aluminum alloy coatings or their stainless steel equivalent. gang nail plates for trusses are manufactured with varying length, width and thickness (or gauge) and are designed to laterally transmit loads in wood. They are also known as stud ties, metal connector plates, mending plates, or nail plates.
Availability:
Quantity:
  • gang nail plates
  • cangzhoufutong

A galvanised steel gang nail connector, or gang plate truss, is a kind of tie. roof truss gang nail plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel to create teeth on one side. The teeth are embedded in and hold the wooden frame components to the plate and each other.

roof truss gang nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using tools such as a hydraulic press or a roller. As the plate is pressed in, the teeth are all driven into the wood fibers simultaneously, and the compression between adjacent teeth reduces the tendency of the wood to split.

The roof truss gang nail plates are manufactured from ASTM A653/A653M, A591, A792/A792M, or A167 structural quality steel and is protected with zinc or zinc-aluminum alloy coatings or their stainless steel equivalent. gang nail plates for trusses are manufactured with varying length, width and thickness (or gauge) and are designed to laterally transmit loads in wood. They are also known as stud ties, metal connector plates, mending plates, or nail plates.

gang nail plates trusses
Products nameroof truss gang nail plates
Material1.0mm G300 Z275 Galvanised Steel
Teeth length8mm (could be customized
gang nail plate sizesCodeWidthLength
SA5010050mm100mm
SA100100100mm100mm
SA150100150mm100mm
SA200150200mm150mm
Coil 100mm100mm15m
Coil 150mm150mm15m
The gang nail plate sizes could be customized
