VERSIFOOT PARTITION STABILIZER

Our VersiFoot Partition Stabilizer is an accessory which adds stability to our VersiFold, VersiPanel, or VersiPanel, Jr. acoustical partitions. It is fabricated from a 1.5″ x 0.25″ steel flat bar, with two solid vertical 3/8″ diameter bars welded to the base. Create “L” or “C” shapes easily with two or more VersiFoot stabilizers. For additional stability, there is a hole in the center of the flat steel bar. You can use this to secure the partition stabilizer to the floor.

TECHNICAL INFORMATION FOR VERSIFOOT PARTITION STABILIZER:
Size: 18″ wide x 12″ high
Color: Black
Construction: 1.5″ x 0.25″ steel flat bar, with two solid vertical 3/8″ diameter bars welded to the base
Intended Use: adds stability to our VersiFold, VersiPanel, or VersiPanel Jr acoustical partitions.

8-pin Impaling Clips

Impaling clips are used to easily attach Acoustic Panels (703 /705 Board) to walls.  Each clip has 8 spikes that stick into the fiberglass panel backing and hold the panel in place.  The dimensions of the clips are 2-1/8" x 1-1/2".  The impaling clips are installed on the wall by either 1 drywall screw (not included) or attached with adhesive (Multi-Seal 180). 4-6 impaling clips are recommended per standard 2' x 4' panel making sure one impaling clip is placed in each corner.  For panel applications requiring an air gap, wood spacer blocks can be installed between the acoustic panel mounting hardware and the drywall to keep the panel spaced off of the wall.

TECHNICAL INFORMATION:

Size: 1-1/2″ x 2″
Depth: 5/8″
Impaling Clip 8 prong with center hole Size: 1-1/2 in. x 2-1/8 in.
Composition: Extruded metal
Intended use: To be used in conjunction with construction adhesive when installing fiberglass acoustical panels.
Packing: Box of 100

INSTRUCTIONS:

1.   Determine the location of your panel and have one person hold it up in place while the other person makes a light mark on the wall to show all 4 corners.

2.   Attach 4 Impaling Clips approx 3" off each corner edge and an optional 2 more impaling clips 3" in  from the edge of the center of the panel. Acoustic panel mounting hardware should be screwed into the studs, so moving the clips a little to hit a stud is recommended.  If screwing into a stud is not possible, use a drywall anchor type screw to ensure a proper hold.

3.  For permanent placement, use adhesive on the wall to stick the back of the panel to the wall (adhesive such as Multi-Seal 180 is recommended).

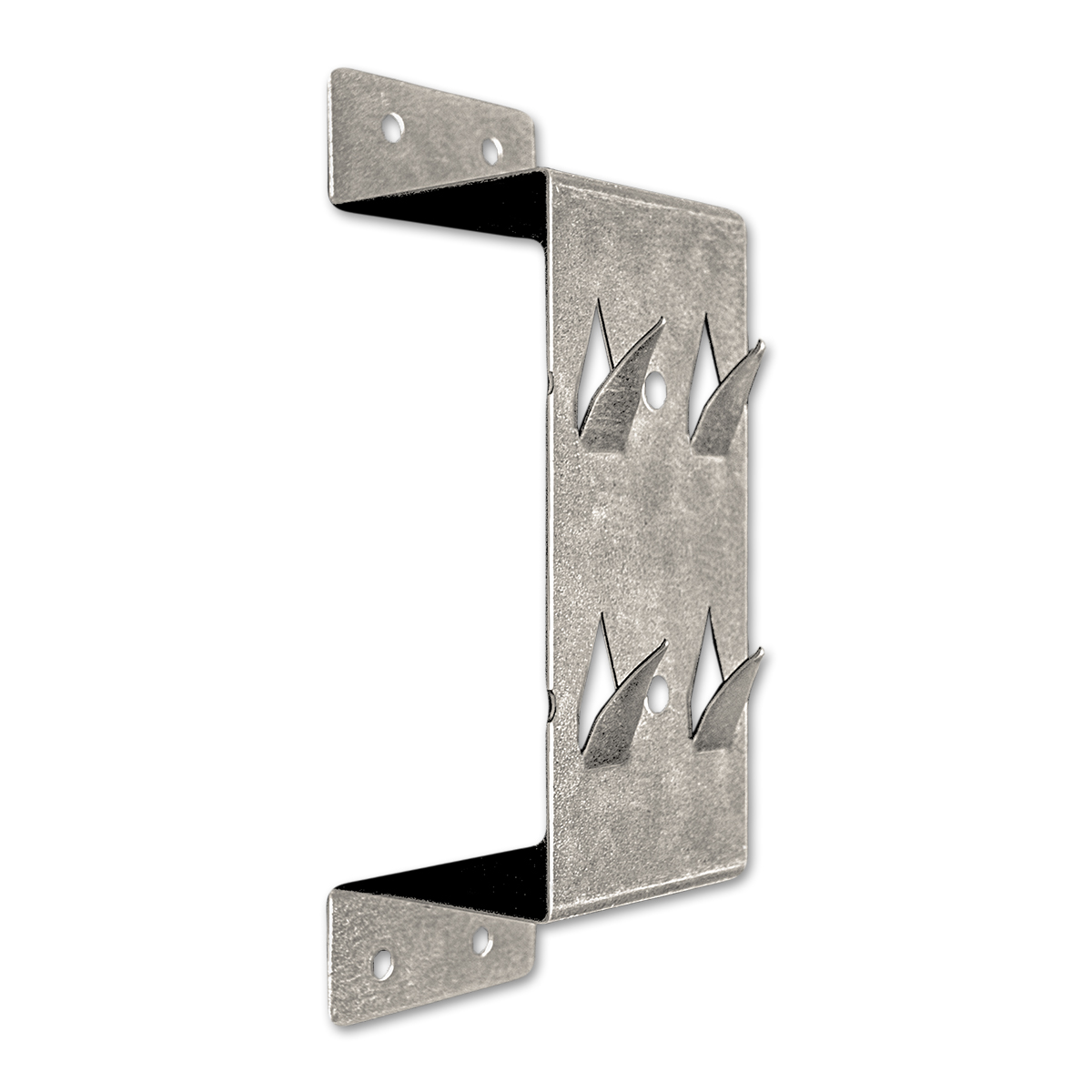

OFFSET IMPALER

Our offset impaler increases the sound absorption response of an acoustic panel simply and quickly by introducing a 2″ air space. The Impaler features a U-shaped design that elevates the panel from the mounting surface. The Offset Impaler creates a cavity behind the panel that can lower the effective frequency by as much as an octave. The acoustic panels are held in place using a series of sharp protruding darts that penetrate the panel. To secure the panel to the mounting clip, add a dab of adhesive between the impaler face and the back of the acoustic panel.

FEATURES:

Easy installation

*Creates a 2″ air gap to increase panel absorption

*TECHNICAL INFORMATION FOR OFFSET IMPALER:

*Size: 6-3/4″ x 2-1/4″ x 2″ depth (nominal)

*Material: 20 gauge galvanized steel

*Max load: 12 pounds

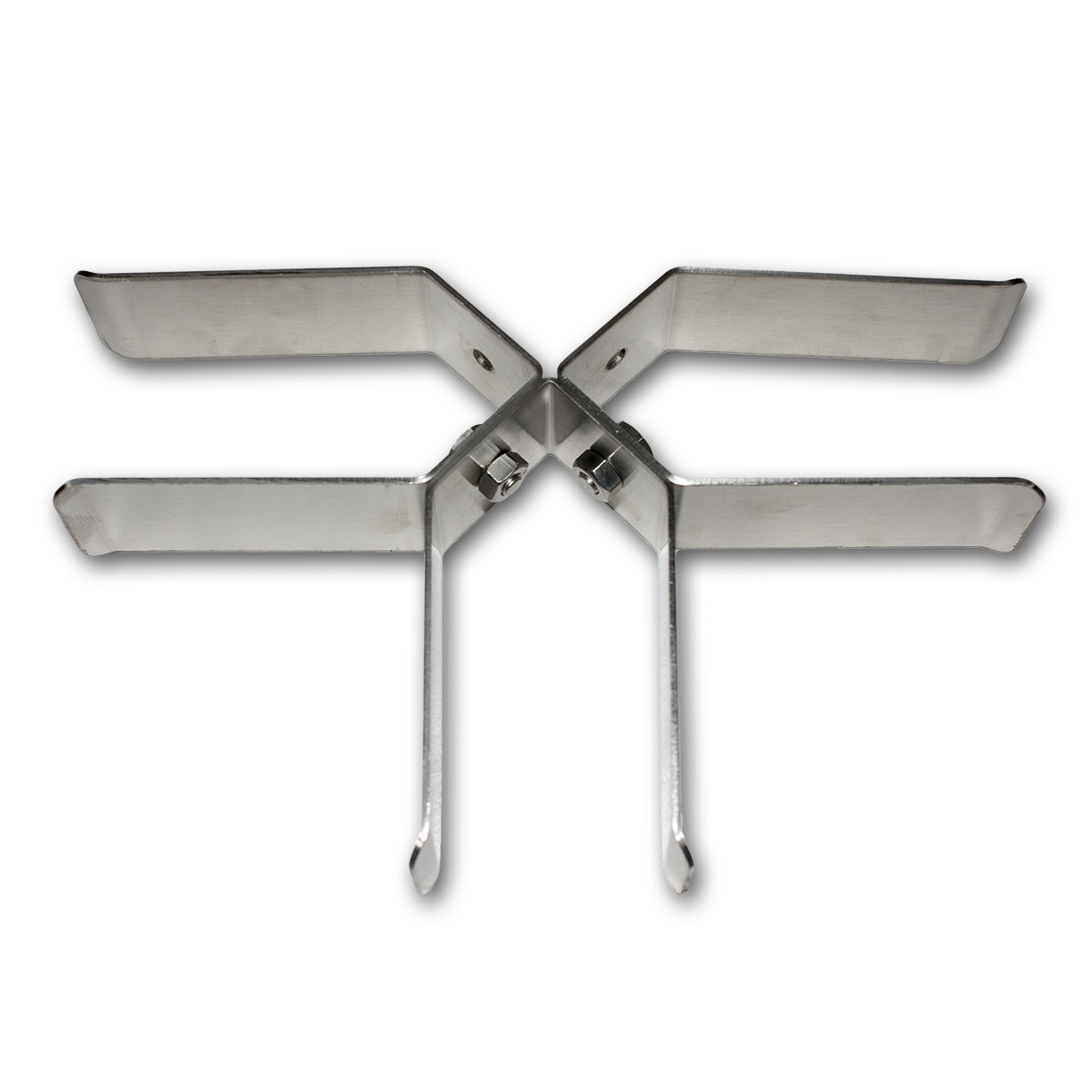

PRIVACY PAL PARTITION CLIP

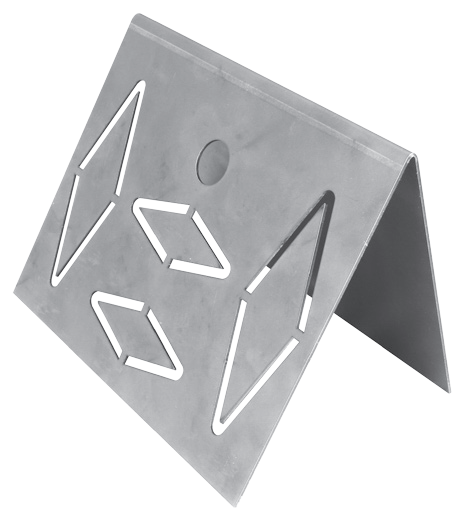

CORNER-IMPALING-CLIP

Large Impaling Clips

PUSH DOWN IMPALER CLIPS

Z clips

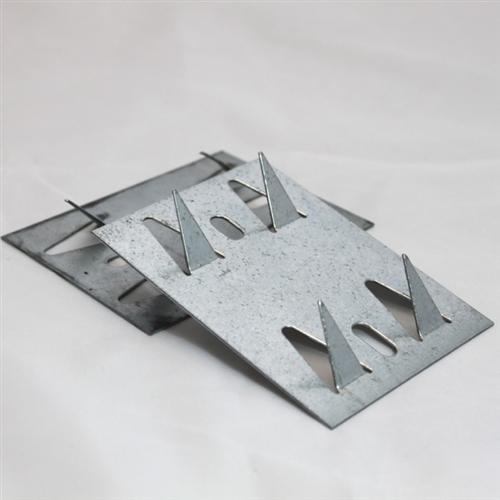

Single-Pin Impaling Clips

FOOT PARTITION STABILIZER

Galvanized gang nail plate

Galvanized gang nail plate is also could be called truss connector plate.A truss connector plate is a kind of tie. Truss Plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel in order to have teeth on one side. The teeth will allow to join different trusses together by being embedded into the lumber using an hydraulic press or a roller.

Nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using special hydraulic tools. As the plate is pressed in, the nails are all "driven" simultaneously and the compression between adjacent nails reduces the tendency to split.

A truss connector plate is manufactured from ASTM A653/A653M, A591, A792/A792M, or A167 structural quality steel and is protected with zinc or zinc-aluminum alloy coatings or their stainless steel equivalent. Metal connector plates have integral teeth and are manufactured to various sizes (that is, length and width) and thickness or gauges and are designed to laterally transmit loads in wood. They are also known as stud ties, metal connector plates, mending plates, or nail plates. However, not all types of nail plates are approved for use in trusses and other structurally critical placements.

Joist hanger,truss hanger

Joist hangers represent a critical design component that helps ensure a building's structural integrity. When factoring in load requirements, member size and costs, deciding on the best solution can be a daunting process. The Joist Hanger Selector from SUREALONG makes selecting the most cost‑effective hanger based on the type of installation, options and loads easier than ever.
