Galvanized Steel Tylok Plate for New Zealand And Australia Market
Home » Products » Timber Building Hardware » Galvanized Steel Tylok Plate for New Zealand And Australia Market
Share to:

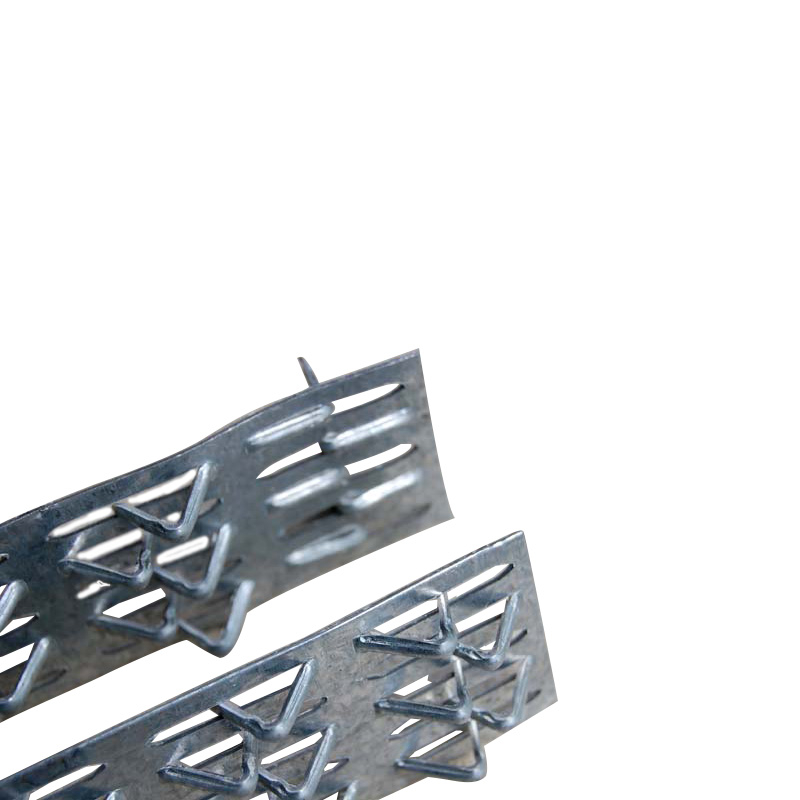

Galvanized Steel Tylok Plate for New Zealand And Australia Market

Tylok Plate is designed for on-site use and can readily be applied by hammer as well as hydraulic press. Tylok Plates are suitable for a wide range of applications such as trusses, formwork, site splicing, etc. Tylok Plates are manufactured from galvanised steel in a range of sizes.

Plate code example - 6T10 = 6 rows of teeth long x 10 teeth wide.

Tylok Plate is also available in coil form, in all four widths, as a convenient method of various applications by the builder on-site. By using metal cutters, any length plate can be cut from the 15m coils as required.
Materials: 1mm G300 Z275 Steel

Finish: Zinc Coated
Availability:
Quantity:
  • custom
  • cangzhoufutong
  • 7308900000

Tylok Plate is designed for on-site use and can readily be applied by hammer as well as hydraulic press. Tylok Plates are suitable for a wide range of applications such as trusses, formwork, site splicing, etc. Tylok Plates are manufactured from galvanised steel in a range of sizes.


Plate code example - 6T10 = 6 rows of teeth long x 10 teeth wide.


Tylok Plate is also available in coil form, in all four widths, as a convenient method of various applications by the builder on-site. By using metal cutters, any length plate can be cut from the 15m coils as required.

Materials: 1mm G300 Z275 Steel


Finish: Zinc Coated



Code

Width

Length

Code

Width

Length

2T5

34mm

60mm

2T10

68mm

60mm

4T5

34mm

120mm

4T10

68mm

120mm

6T5

34mm

180mm

6T10

68mm

180mm

8T5

34mm

240mm

8T10

68mm

240mm

10T5

34mm

300mm

10T10

68mm

300mm

12T5

34mm

360mm

12T10

68mm

360mm

14T5

34mm

420mm

14T10

68mm

420mm

16T5

34mm

480mm

16T10

68mm

480mm

Coil T5

34mm

15m

Coil T10

68mm

15m

Code

Width

Length

Code

Width

Length

4T15

102mm

120mm

6T20

136mm

180mm

6T15

102mm

180mm

8T20

136mm

240mm

8T15

102mm

240mm

10T20

136mm

300mm

10T15

102mm

300mm

12T20

136mm

360mm

12T15

102mm

360mm

14T20

136mm

420mm

Coil T15

102mm

15m

Coil T20

136mm

15m

About Us

timber connectors

As a professional manufacturer of timber connectors,we had lot of experiences to export European market,North American market,New Zealand and Australia market. and the packages could be printed with your LOGO and company information.

Our products are certificated by CE and ISO9001:2015.

Main products include truss connector plate,perforated steel strap,galvanized steel strap,gang nail plates,galvanized nail plates,toothed connectors,toothed plates,joist hangers,truss hangers,saddle purlin hanger,angle connectors,timber connectors,wood connectors,lumber connectors,timber plates,post support,steel ties

工厂设备副本

Certifications

Certifications1副本

Package

The package could be customized according to your requirements.

Package

Exhibition trade show

展会副本

Customer Visit

Welcome to visit Us!

Customer Visit

Cangzhou Futong is a full-service sheet metal fabricator that uses lean manufacturing tools and focuses on continuous improvement to give you the best results. From traditional metal fabrication services to 3D laser welding and rapid prototyping,Cangzhou Futong is your one-stop-shop for sheet metal projects from conception to production.
