Galvanized steel Knuckle Nail Plate for timber connectors

Availability:
Quantity:

Knuckle Nail Plate / Tylok Plate

Cangzhoufutong Knuckle Nailplates are galvanised steel connectors with in-built, bent-up “knuckle” nails. These plates are ideal for many structural and non-structural timber jointing and timber protection uses.
Among the many uses of Knuckle Nailplates, the most common are jointing of wall frames together on-site, on-site splicing of timber beams, reinforcement of corners of boxes and bins, and reinforcement of bolted joints (eg Cable Truss)

FEATURES
Generally, Knuckle Nailplates will:
Provide a strong, economical and easy-to-use means of jointing timber together.
Protect timber from damage as they resist splitting due to drying of the timber, nailing near ends or other causes eg Bin Straps.
Also reduce timber damage by resisting the effects of impact loads such as from fork lift tyne strikes.
Distribute concentrated loads over a wider area, eg they increase the strength of bolted joints.


Material:
1mm G300 Z275 Galvanised Steel
Code Width Length Code Width Length
2T5 34mm 60mm 2T10 68mm 60mm
4T5 34mm 120mm 4T10 68mm 120mm
6T5 34mm 180mm 6T10 68mm 180mm
8T5 34mm 240mm 8T10 68mm 240mm
10T5 34mm 300mm 10T10 68mm 300mm
12T5 34mm 360mm 12T10 68mm 360mm
14T5 34mm 420mm 14T10 68mm 420mm
16T5 34mm 480mm 16T10 68mm 480mm
Coil T5 34mm 15m Coil T10 68mm 15m
Code Width Length Code Width Length
4T15 102mm 120mm 6T20 136mm 180mm
6T15 102mm 180mm 8T20 136mm 240mm
8T15 102mm 240mm 10T20 136mm 300mm
10T15 102mm 300mm 12T20 136mm 360mm
12T15 102mm 360mm 14T20 136mm 420mm
Coil T15 102mm 15m Coil T20 136mm 15m

Galvanized steel Knuckle Nail Plate for timber connectors


The package could be customized according to your requirements

Package

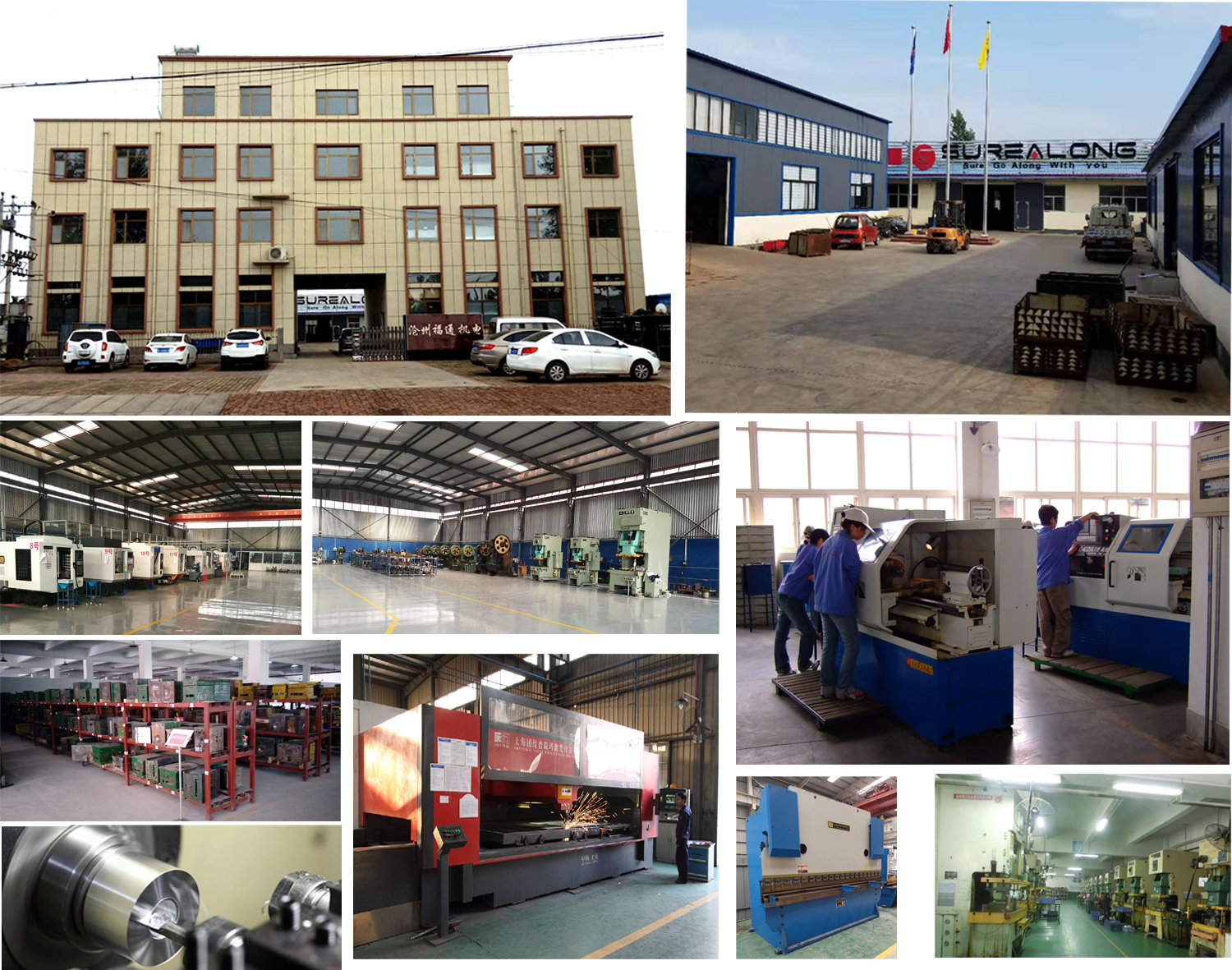

工厂设备副本

Cangzhou Futong Precision Manufacturing Co.,Ltd

At Futong Precision Manufacturing, we are a global supplier of precision metal stampings and complex assemblies. We provide turnkey services, from design, tooling development, and sourcing to stamping, finishing, assembly, packaging, and shipping. Every one of our departments works together as a cohesive team and pays attention to every detail to ensure we deliver high caliber products on time and budget. We have a strong 15+ year history as a manufacturer of complex, custom components requiring tight tolerances, and we have an impressive level of customer retention.


Our stamping operations feature presses in the 45-ton to 1,100-ton range, which gives us the versatility to generate parts using thin gauge .004” foils as well as plate measuring up to 0.5” in thickness. We have capabilities in all stamping methods, including progressive die, continuous strip, compound die, deep drawing, etc. By leveraging our integrated knowledge of material properties and stamping technology, we develop the tooling and implement controllable manufacturing processes to repeatably produce dimensionally accurate parts. Materials we frequently work with include carbon steel, aluminum, copper, brass, and an extensive selection of other metals and alloys.


As an ISO 9001 certified metal stamping company, our maintenance program ensures all tooling, dies, press equipment, and quality instruments are in top condition. We inspect all incoming raw materials and carry out first article, in-process, and final inspections. With our coordinated project management, we manage secondary operations such as heat treating, passivation, plating, and other finishing services as well as machining, fabrication, and product assembly through a network of trusted partners.


We manufacture premier quality metals stampings for customers in many different industries, from automotive and aerospace to medical, transportation, and consumer products, to name a few. Some examples include electronic connectors, PCBs, filter components, furniture parts, medical diaphragms, hardware, and containers, among many others. We are customer-focused, reliable, and price competitive. To learn more about our stamping services or to make an inquiry, contact us directly.

Certifications1副本


1,Supply OEM / ODM service.
2,Certification:ISO 9001:2015, IATF 16949:2016
3,3D LASER WELDING
   3D laser welding uses concentrated energy to fuse metal parts into a precise joint that is strong and highly aesthetic.
4,Cangzhou Futong delivers innovative solutions through product design, engineering, & manufacturing using state-of-the-art technology.
5,Not Just a Supplier, but a Valued Business Partner.
6,100% Quality Inspection
7,Since 2007, Futong Precision Manufacturing has been a leader in manufacturing precision stamped parts and assemblies for a wide variety of industries. Our capabilities include producing complex, custom components requiring tight tolerances and runs of 1,000 - 1,000,000 pieces. As a centrally located supplier to industries around the globe, we can meet tight lead times and ship easily to any destination.

If there is any quality problem, please feel free to contact us. Refund or Replacement for any quality problem.


Contact Name:Abram Dong

Position:Sales manager

Email:autumn@cangzhoufutong.com

Cellular phone:+86-13260091203
