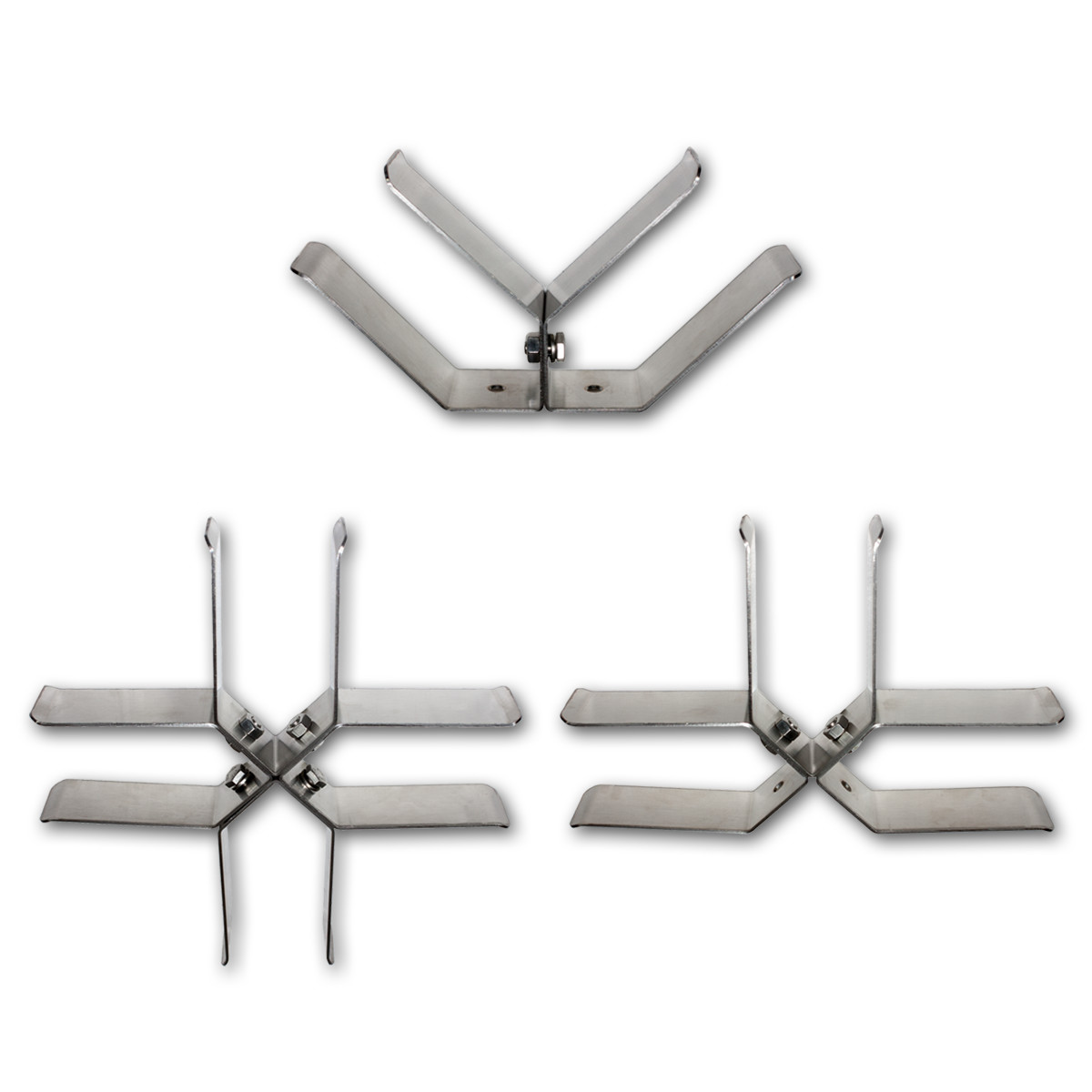

Our Privacy Pal Partition Clip is used in conjunction with back to back rigid acoustical panels in order to create a free-standing desktop acoustical partition. Custom 2″ thick panels are manufactured using 1″ fabric wrapped panels glued back to back. This creates a panel that has fabric on both sides. The panels are then inserted into the Privacy Pal Partition Clips to create the partition. You can use this system for a temporary or portable acoustic solution.
Type: | |
---|---|
Availability: | |
Quantity: | |
custom
cangzhoufutong
7308900000
Privacy Pal Partition Clip
Our Privacy Pal Partition Clip is used in conjunction with back to back rigid acoustical panels in order to create a free-standing desktop acoustical partition. Custom 2″ thick panels are manufactured using 1″ fabric wrapped panels glued back to back. This creates a panel that has fabric on both sides. The panels are then inserted into the Privacy Pal Partition Clips to create the partition. You can use this system for a temporary or portable acoustic solution.
8-pin Impaling Clips
Impaling clips are used to easily attach Acoustic Panels (703 /705 Board) to walls. Each clip has 8 spikes that stick into the fiberglass panel backing and hold the panel in place. The dimensions of the clips are 2-1/8" x 1-1/2". The impaling clips are installed on the wall by either 1 drywall screw (not included) or attached with adhesive (Multi-Seal 180). 4-6 impaling clips are recommended per standard 2' x 4' panel making sure one impaling clip is placed in each corner. For panel applications requiring an air gap, wood spacer blocks can be installed between the acoustic panel mounting hardware and the drywall to keep the panel spaced off of the wall.
TECHNICAL INFORMATION:
Size: 1-1/2″ x 2″
Depth: 5/8″
Impaling Clip 8 prong with center hole Size: 1-1/2 in. x 2-1/8 in.
Composition: Extruded metal
Intended use: To be used in conjunction with construction adhesive when installing fiberglass acoustical panels.
Packing: Box of 100
INSTRUCTIONS:
1. Determine the location of your panel and have one person hold it up in place while the other person makes a light mark on the wall to show all 4 corners.
2. Attach 4 Impaling Clips approx 3" off each corner edge and an optional 2 more impaling clips 3" in from the edge of the center of the panel. Acoustic panel mounting hardware should be screwed into the studs, so moving the clips a little to hit a stud is recommended. If screwing into a stud is not possible, use a drywall anchor type screw to ensure a proper hold.
3. For permanent placement, use adhesive on the wall to stick the back of the panel to the wall (adhesive such as Multi-Seal 180 is recommended).
OFFSET IMPALER
Our offset impaler increases the sound absorption response of an acoustic panel simply and quickly by introducing a 2″ air space. The Impaler features a U-shaped design that elevates the panel from the mounting surface. The Offset Impaler creates a cavity behind the panel that can lower the effective frequency by as much as an octave. The acoustic panels are held in place using a series of sharp protruding darts that penetrate the panel. To secure the panel to the mounting clip, add a dab of adhesive between the impaler face and the back of the acoustic panel.
FEATURES:
Easy installation
*Creates a 2″ air gap to increase panel absorption
*TECHNICAL INFORMATION FOR OFFSET IMPALER:
*Size: 6-3/4″ x 2-1/4″ x 2″ depth (nominal)
*Material: 20 gauge galvanized steel
*Max load: 12 pounds
PRIVACY PAL PARTITION CLIP
CORNER-IMPALING-CLIP
Large Impaling Clips
PUSH DOWN IMPALER CLIPS
Z clips
Single-Pin Impaling Clips
FOOT PARTITION STABILIZER
Related Products
Gang nail plates
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Railroad crossties,Pallet and crating,Manufactured housing ,roof trusses,floor trusses.
Key words:Anti split plates,Gang nail plates,Mending plates,Metal connector plate,Truss connector plates.
Galvanized gang nail plate
Galvanized gang nail plate is also could be called truss connector plate.A truss connector plate is a kind of tie. Truss Plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel in order to have teeth on one side. The teeth will allow to join different trusses together by being embedded into the lumber using an hydraulic press or a roller.
Nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using special hydraulic tools. As the plate is pressed in, the nails are all "driven" simultaneously and the compression between adjacent nails reduces the tendency to split.
A truss connector plate is manufactured from ASTM A653/A653M, A591, A792/A792M, or A167 structural quality steel and is protected with zinc or zinc-aluminum alloy coatings or their stainless steel equivalent. Metal connector plates have integral teeth and are manufactured to various sizes (that is, length and width) and thickness or gauges and are designed to laterally transmit loads in wood. They are also known as stud ties, metal connector plates, mending plates, or nail plates. However, not all types of nail plates are approved for use in trusses and other structurally critical placements.
Gang nail plates
Tylok plates
toothed-plate connector
Foil fix
Joist hanger
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Manufactured housing ,roof trusses,floor trusses.
Key words:Joist hanger,truss hanger
Joist hanger,truss hanger
Joist hangers represent a critical design component that helps ensure a building's structural integrity. When factoring in load requirements, member size and costs, deciding on the best solution can be a daunting process. The Joist Hanger Selector from SUREALONG makes selecting the most cost‑effective hanger based on the type of installation, options and loads easier than ever.
Corner brackets
Triple Grip
Stud ties
Steel strip
Post support
Brick ties
Privacy Pal Partition Clip
Our Privacy Pal Partition Clip is used in conjunction with back to back rigid acoustical panels in order to create a free-standing desktop acoustical partition. Custom 2″ thick panels are manufactured using 1″ fabric wrapped panels glued back to back. This creates a panel that has fabric on both sides. The panels are then inserted into the Privacy Pal Partition Clips to create the partition. You can use this system for a temporary or portable acoustic solution.
8-pin Impaling Clips
Impaling clips are used to easily attach Acoustic Panels (703 /705 Board) to walls. Each clip has 8 spikes that stick into the fiberglass panel backing and hold the panel in place. The dimensions of the clips are 2-1/8" x 1-1/2". The impaling clips are installed on the wall by either 1 drywall screw (not included) or attached with adhesive (Multi-Seal 180). 4-6 impaling clips are recommended per standard 2' x 4' panel making sure one impaling clip is placed in each corner. For panel applications requiring an air gap, wood spacer blocks can be installed between the acoustic panel mounting hardware and the drywall to keep the panel spaced off of the wall.
TECHNICAL INFORMATION:
Size: 1-1/2″ x 2″
Depth: 5/8″
Impaling Clip 8 prong with center hole Size: 1-1/2 in. x 2-1/8 in.
Composition: Extruded metal
Intended use: To be used in conjunction with construction adhesive when installing fiberglass acoustical panels.
Packing: Box of 100
INSTRUCTIONS:
1. Determine the location of your panel and have one person hold it up in place while the other person makes a light mark on the wall to show all 4 corners.
2. Attach 4 Impaling Clips approx 3" off each corner edge and an optional 2 more impaling clips 3" in from the edge of the center of the panel. Acoustic panel mounting hardware should be screwed into the studs, so moving the clips a little to hit a stud is recommended. If screwing into a stud is not possible, use a drywall anchor type screw to ensure a proper hold.
3. For permanent placement, use adhesive on the wall to stick the back of the panel to the wall (adhesive such as Multi-Seal 180 is recommended).
OFFSET IMPALER
Our offset impaler increases the sound absorption response of an acoustic panel simply and quickly by introducing a 2″ air space. The Impaler features a U-shaped design that elevates the panel from the mounting surface. The Offset Impaler creates a cavity behind the panel that can lower the effective frequency by as much as an octave. The acoustic panels are held in place using a series of sharp protruding darts that penetrate the panel. To secure the panel to the mounting clip, add a dab of adhesive between the impaler face and the back of the acoustic panel.
FEATURES:
Easy installation
*Creates a 2″ air gap to increase panel absorption
*TECHNICAL INFORMATION FOR OFFSET IMPALER:
*Size: 6-3/4″ x 2-1/4″ x 2″ depth (nominal)
*Material: 20 gauge galvanized steel
*Max load: 12 pounds
PRIVACY PAL PARTITION CLIP
CORNER-IMPALING-CLIP
Large Impaling Clips
PUSH DOWN IMPALER CLIPS
Z clips
Single-Pin Impaling Clips
FOOT PARTITION STABILIZER
Related Products
Gang nail plates
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Railroad crossties,Pallet and crating,Manufactured housing ,roof trusses,floor trusses.
Key words:Anti split plates,Gang nail plates,Mending plates,Metal connector plate,Truss connector plates.
Galvanized gang nail plate
Galvanized gang nail plate is also could be called truss connector plate.A truss connector plate is a kind of tie. Truss Plates are light gauge metal plates used to connect prefabricated light frame wood trusses. They are produced by punching light gauge galvanized steel in order to have teeth on one side. The teeth will allow to join different trusses together by being embedded into the lumber using an hydraulic press or a roller.
Nail plates are used to connect timber of the same thickness in the same plane. When used on trusses, they are pressed into the side of the timber using special hydraulic tools. As the plate is pressed in, the nails are all "driven" simultaneously and the compression between adjacent nails reduces the tendency to split.
A truss connector plate is manufactured from ASTM A653/A653M, A591, A792/A792M, or A167 structural quality steel and is protected with zinc or zinc-aluminum alloy coatings or their stainless steel equivalent. Metal connector plates have integral teeth and are manufactured to various sizes (that is, length and width) and thickness or gauges and are designed to laterally transmit loads in wood. They are also known as stud ties, metal connector plates, mending plates, or nail plates. However, not all types of nail plates are approved for use in trusses and other structurally critical placements.
Gang nail plates
Tylok plates
toothed-plate connector
Foil fix
Joist hanger
Material:Galvanized sheet DX51D-Z275 grade
Application:Prefabricated wood truss,portable building/shed ,Manufactured housing ,roof trusses,floor trusses.
Key words:Joist hanger,truss hanger
Joist hanger,truss hanger
Joist hangers represent a critical design component that helps ensure a building's structural integrity. When factoring in load requirements, member size and costs, deciding on the best solution can be a daunting process. The Joist Hanger Selector from SUREALONG makes selecting the most cost‑effective hanger based on the type of installation, options and loads easier than ever.
Corner brackets
Triple Grip
Stud ties
Steel strip
Post support
Brick ties
At Futong Precision Manufacturing, we are a global supplier of precision metal stampings and complex assemblies. We provide turnkey services, from design, tooling development, and sourcing to stamping, finishing, assembly, packaging, and shipping. Every one of our departments works together as a cohesive team and pays attention to every detail to ensure we deliver high caliber products on time and budget. We have a strong 15+ year history as a manufacturer of complex, custom components requiring tight tolerances, and we have an impressive level of customer retention.
Our stamping operations feature presses in the 45-ton to 1,100-ton range, which gives us the versatility to generate parts using thin gauge .004” foils as well as plate measuring up to 0.5” in thickness. We have capabilities in all stamping methods, including progressive die, continuous strip, compound die, deep drawing, etc. By leveraging our integrated knowledge of material properties and stamping technology, we develop the tooling and implement controllable manufacturing processes to repeatably produce dimensionally accurate parts. Materials we frequently work with include carbon steel, aluminum, copper, brass, and an extensive selection of other metals and alloys.
As an ISO 9001 certified metal stamping company, our maintenance program ensures all tooling, dies, press equipment, and quality instruments are in top condition. We inspect all incoming raw materials and carry out first article, in-process, and final inspections. With our coordinated project management, we manage secondary operations such as heat treating, passivation, plating, and other finishing services as well as machining, fabrication, and product assembly through a network of trusted partners.
We manufacture premier quality metals stampings for customers in many different industries, from automotive and aerospace to medical, transportation, and consumer products, to name a few. Some examples include electronic connectors, PCBs, filter components, furniture parts, medical diaphragms, hardware, and containers, among many others. We are customer-focused, reliable, and price competitive. To learn more about our stamping services or to make an inquiry, contact us directly.
At Futong Precision Manufacturing, we are a global supplier of precision metal stampings and complex assemblies. We provide turnkey services, from design, tooling development, and sourcing to stamping, finishing, assembly, packaging, and shipping. Every one of our departments works together as a cohesive team and pays attention to every detail to ensure we deliver high caliber products on time and budget. We have a strong 15+ year history as a manufacturer of complex, custom components requiring tight tolerances, and we have an impressive level of customer retention.
Our stamping operations feature presses in the 45-ton to 1,100-ton range, which gives us the versatility to generate parts using thin gauge .004” foils as well as plate measuring up to 0.5” in thickness. We have capabilities in all stamping methods, including progressive die, continuous strip, compound die, deep drawing, etc. By leveraging our integrated knowledge of material properties and stamping technology, we develop the tooling and implement controllable manufacturing processes to repeatably produce dimensionally accurate parts. Materials we frequently work with include carbon steel, aluminum, copper, brass, and an extensive selection of other metals and alloys.
As an ISO 9001 certified metal stamping company, our maintenance program ensures all tooling, dies, press equipment, and quality instruments are in top condition. We inspect all incoming raw materials and carry out first article, in-process, and final inspections. With our coordinated project management, we manage secondary operations such as heat treating, passivation, plating, and other finishing services as well as machining, fabrication, and product assembly through a network of trusted partners.
We manufacture premier quality metals stampings for customers in many different industries, from automotive and aerospace to medical, transportation, and consumer products, to name a few. Some examples include electronic connectors, PCBs, filter components, furniture parts, medical diaphragms, hardware, and containers, among many others. We are customer-focused, reliable, and price competitive. To learn more about our stamping services or to make an inquiry, contact us directly.
ISO 9001:2015, IATF 16949:2016
ISO 9001:2015, IATF 16949:2016
The packages could be customized according to your requirements
The packages could be customized according to your requirements
